Product Name |

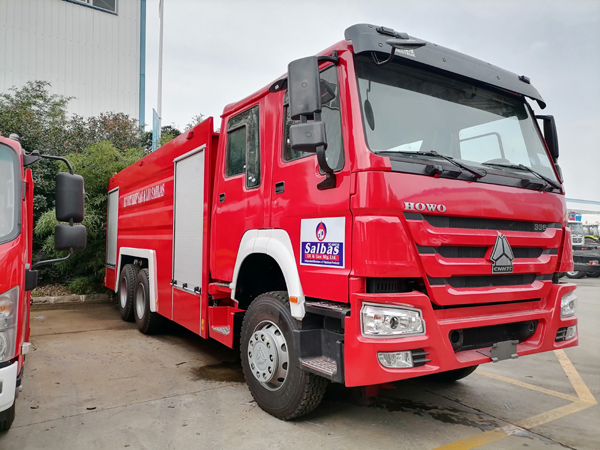

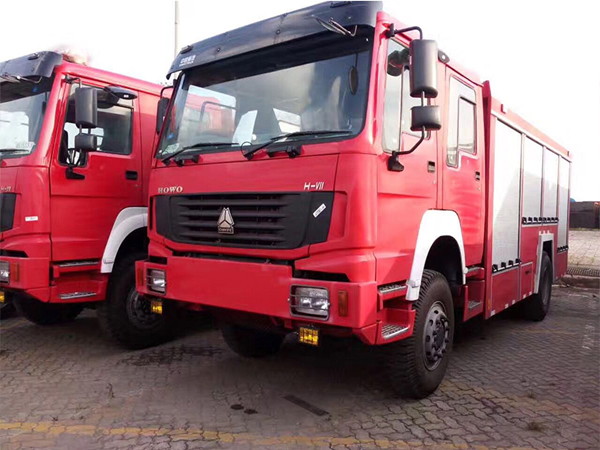

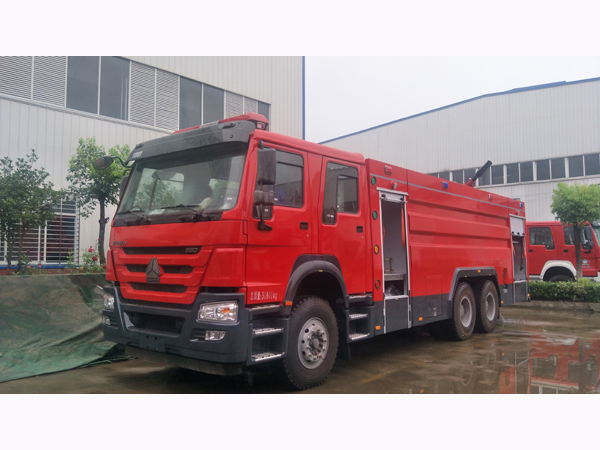

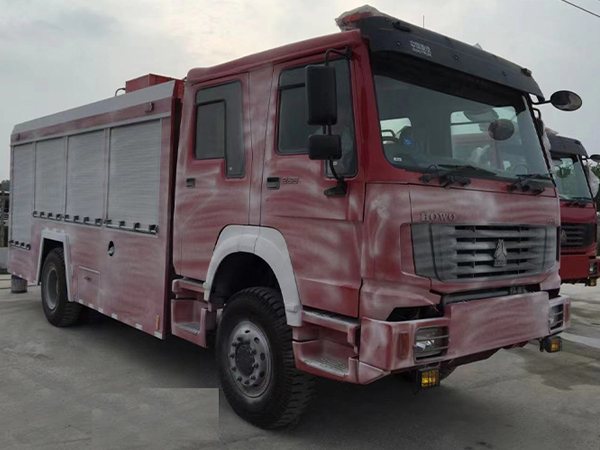

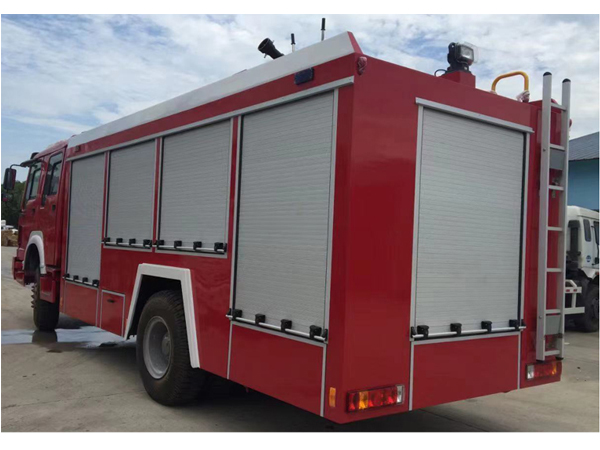

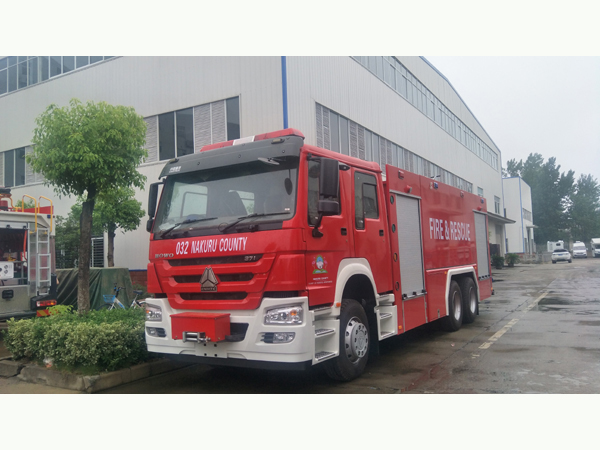

HOWO 4x4 fire truck |
|
Cab |
double row cab, four doors, rated passengers 6 |
|
Volume |
8m3/4000L water |
|
|
Brand |
HOWO |
|
Chassis model |
ZZ2167M4627A |
Chassis |
Drive type |
LHD or RHD 4x4 |
|
Tire |
12.00R20 |
|
Tire No. |
6+1(spare) |
|
Braking System |
air brake |
|
Transmission |
Manual , 6 forward and 1 reverse |
|
Model |
WD615.62 |
|
fuel type |
diesel |
Engine |
Horse Power(kw/hp) |
24kw/336hp |
|
Displacement(ml) |
9726ml |
|
Emission standard |
Euro 5/4/3 |
|
Overall dimension (L*W*H/mm) |
8780x2500x3460mm |
|
Axles No. |
2 |
Dimension & weight |
GVW(kg) |
19800 |
|
Curb Weight(kg) |
11650 |
|
Max speed(km/h) |
95 |
performance parameter |
|
fire pump, fire monitor,steel pump room/equipments box ,5-9 Aluminum curtain door, 1600mm long rows of lights in the top of cab, fire fighting accessoires,etc |
Standard configuration |
||
Fire Pump |
CB10/60 |
|
Fire Monitor Type |
PS50 (pressure:1.0MPa,flow:50L/s,shot range≥60m,rotation angle: left or right 360°,up or down-30°~80°) |
|
Fire Monitor Shot Range |
Water≥60m , Foam ≥55m |
