12m3 Waste Management Trash Truck , 12cbm Rear Loader Howo Waste Compactor Truck

Self Compressed with Rea Loading with different mechanism: Barrel, Steel Container, etc

Leakage Proof Container Design to avoid the polution.

Hydraulic Control Loading & Unloading System

Automatic Key Control & Hydraulic Handle Control

Best Choice for Garbage Transporation Inside City.

Description FEEDBACK

12m3 Waste Management Trash Truck , 12cbm Rear Loader Howo Waste Compactor Truck



Self Compressed with Rea Loading with different mechanism: Barrel, Steel Container, etc

Leakage Proof Container Design to avoid the polution.

Hydraulic Control Loading & Unloading System

Automatic Key Control & Hydraulic Handle Control

Best Choice for Garbage Transporation Inside City.





Dimension(LxW xH)(unloaded)(mm)

8765*2500*3300

Cargo body capacity (LxWxH)(mm)

10m³

Hydraulic system working pressure(Mpa)

20

A cycle time filling job (s)

≤25

A waste of time shift (s)

≤45

Maximum crushing compression strength (kg)

>35000

Wheel base (mm)

4600

Max speed(km/h)

90

Curb weight(kg)

7950

Loading Weight(kg)

7920



Engine



Model

WD615.87 290hp

Fuel type

Diesel

Power,max(kw/rpm)

213/2200

Emission

EUROII

Fuel tanker capacity (L)

300

Transmission

Model

HW15710,10 forward&2 reverse

Brake system

Service brake

Dual circuit compressed air brake



Parking brake

spring energy

Steering system

Model

ZF8098

Front axle

Steering with double T-cross section beam

Rear axle

Pressed axle housing

Tyre

12.00-20

Electrical system

Battery

2X12V/165Ah



Alternate

28V-1500kw



Starter

7.5Kw/24V

Cab

HW70

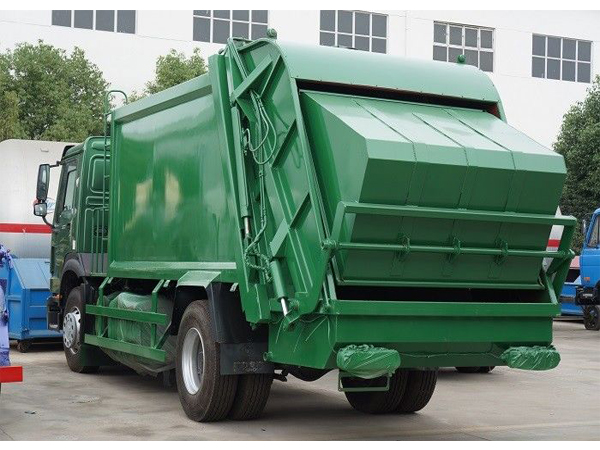

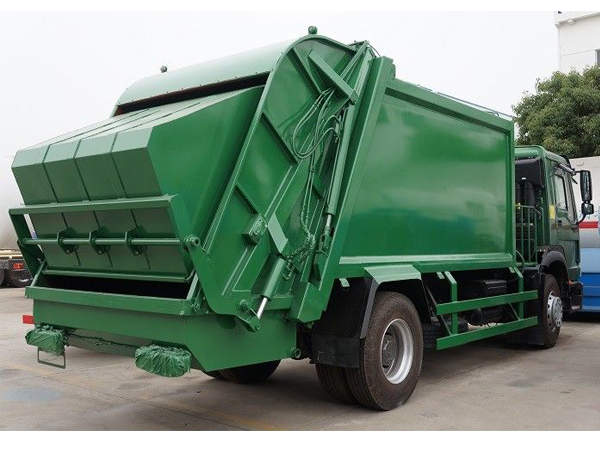

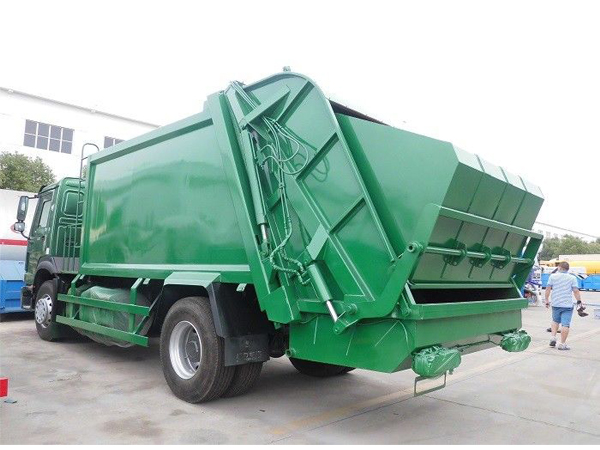

Truck Picture:
