Customer purchased ISUZU ELF 5cbm Garbage Compactor Truck

ISUZU 4x2 chassis, MSB 5-shift manual gearbox, 98HP diesel engine, high strength steel compactor body, Siemens PLC control device

Description FEEDBACK

Customer purchased ISUZU ELF 5cbm Garbage Compactor Truck

 ISUZU 4x2 chassis, MSB 5-shift manual gearbox, 98HP diesel engine, high strength steel compactor body, Siemens PLC control device

Customer purchased ISUZU ELF 5cbm Garbage Compactor Truck Applications:

 Garbage compactor vehicle Isuzu (also called Hydraulic pressing garbage truck, rear loader garbage truck, compactor garbage truck, back loading garbage compression truck, waste collection vehicle) is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airport, and densely-populated areas like industrial and mineral enterprises and military units.


Chenli TRUCKS  compactor garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.


The refuse compactor vehicle tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective.



 Key Features:

  ---- ISUZU chassis, perfect performance

---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Compression body capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

---- Virious types of refuse container lifter are available.

 Specifications:

Rubbish compactor truck Isuzu (5 cbm)

General

Vehicle Brand

Chengli

Chassis Brand

ISUZU

Overall Dimension

6230 * 2000 * 2490 mm

GVW / Kerb Weight

8,000kg / 4,350kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

98 HP (72 KW)

Displacement

2777 ml

Emission Standard

Euro IV or V

Chassis

Drive Type

4X2, (left hand drive)

Transmission

ISUZU MSB 5 speed levers with 1 reverse

Wheelbase/No. of axle

3360 mm / 2

Tire Specification

7.00-16

Tire Number

6 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Body capacity

5 cbm

Fill Hopper capacity

0.8 cbm

Sewage tank

 200 liters

Filling work cycly time

 20~25 s

Discharge model

Horizontal Ejection

Control system

Electrically Hydraulic control

Manual hydraulic control

Control panel

English or Your language

All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,

handrail, fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Italy mulit-valve can be choose.

** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.

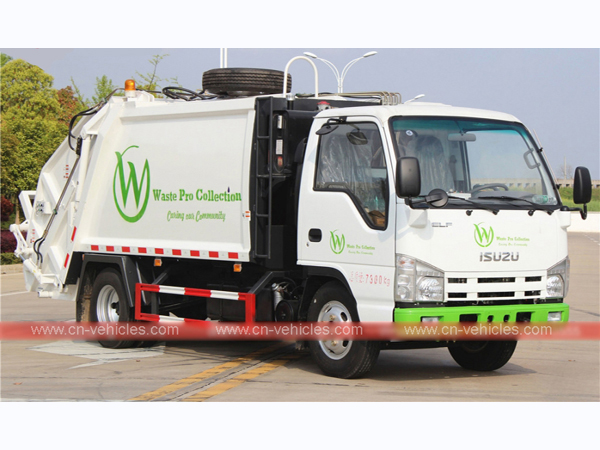

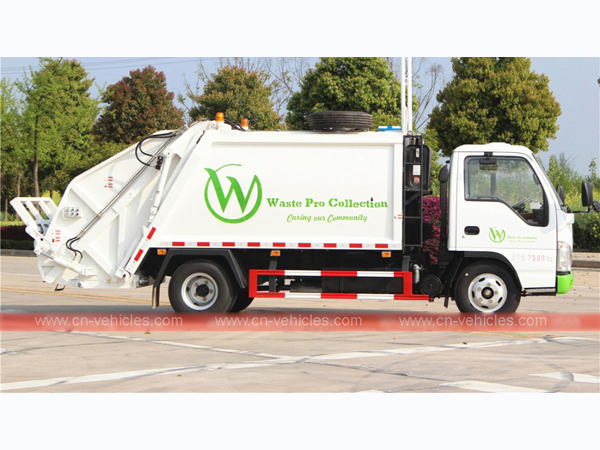

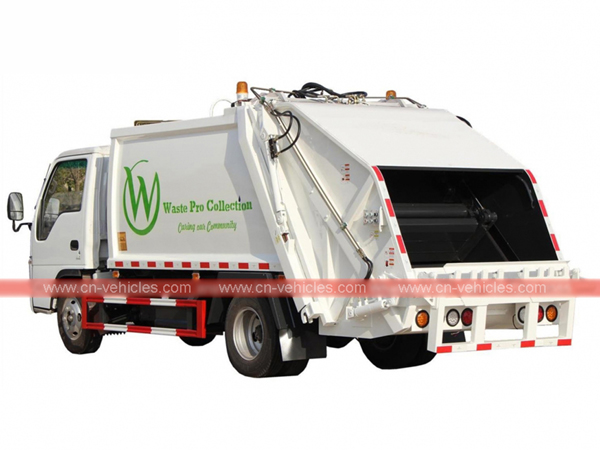

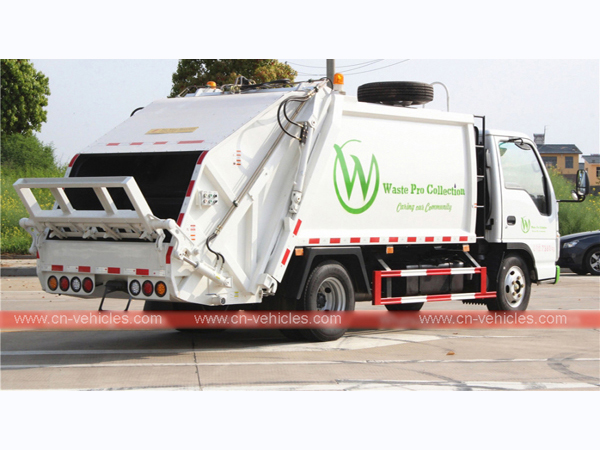

Truck picture:
