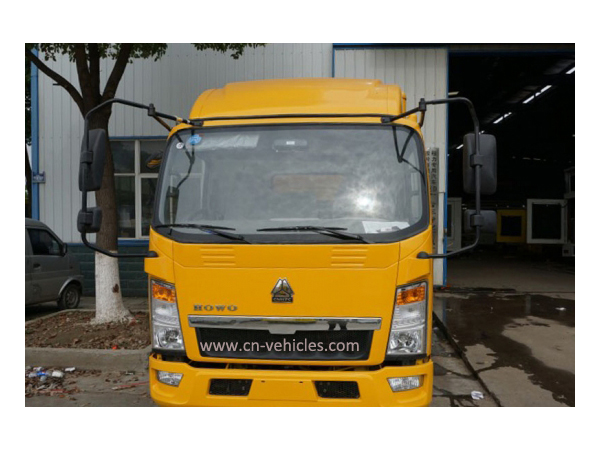

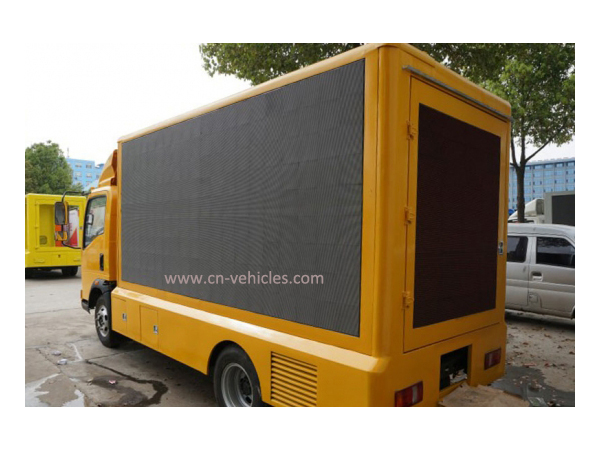

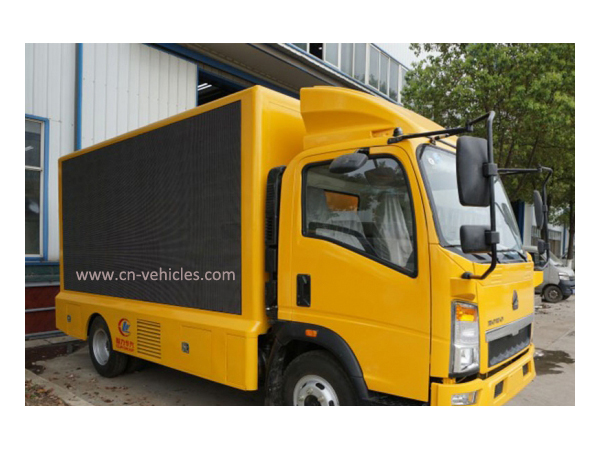

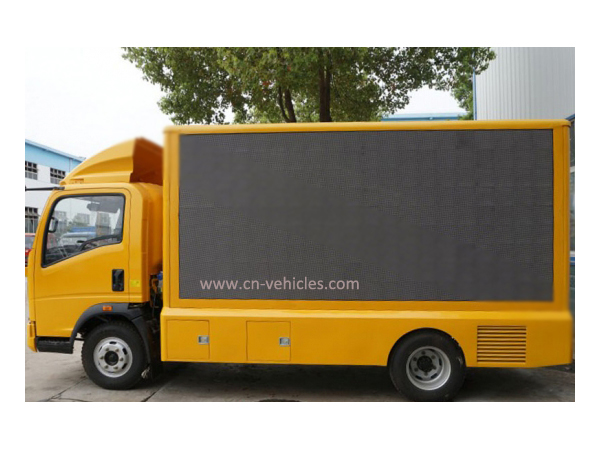

HOWO High-Definition LED Advertising Vehicle With Scrolling Light
LED display, also called led screen, led video wall, or led sign, with its unique advantages, has gradually replaced the traditional billboards, light boxes, etc. LED display advertising has become a new force in the media industry.
Traditional advertising can only show pictures, But LED display/led video wall/led screen can perfect combine text, pictures, video, and sound with high resolution, high brightness and full colour!
LED display Advertising screen can easily attract the attention of pedestrians, and also are easy to remember, which can generate greater advertising effectiveness.Led display screen now are widely applied in media advertising, transportation, Security,Real estate and Stage show background.
Technical Date
|
Vehicle Description |
||||
|
Vehicle model |
LED screen truck |
Overall dimensions (mm) |
5995×2025×2995 |
|
|
GVW (kg) |
Appro×5495 |
Fact loading capacity(m3) |
- |
|
|
Mass in working order (kg) |
Appro×4300 |
Max. Speed (km/h) |
90 |
|
|
Chassis Description |
||||
|
Chassis |
CA1047 |
|||
|
Cab |
Short cab withRight hand drive |
|||
|
Color |
Optional |
|||
|
Allowable person in cab |
3 |
|||
|
Wheel base (mm) |
3360 |
|||
|
Front/Rear track base (mm) |
1415/1485 |
|||
|
Front/Rear overhang (mm) |
1085/1550 |
|||
|
Number of axles |
2 |
|||
|
Axle |
Front axle |
2000 |
||
|
Rear axle |
3500 |
|||
|
Traction system |
4*2 |
|||
|
Braking system |
Air brake |
|||
|
Electric system |
24V |
|||
|
Transmission |
5speed |
|||
|
Tire specification |
7.00R16 |
|||
|
Tire quantity |
6+1 |
|||
|
Engine Description |
||||
|
Enginemodel |
4DW93-84 |
|||
|
Emission standard |
Euro3 |
|||
|
Exhaust/output |
2540ml/66kw |
|||
|
Horse power |
85hp |
|||
|
E Up-parts Description |
||||
|
Left side LED screen |
P4 3840*1792 mm |
|||
|
Right side LED screen |
P4 3840*1792 mm |
|||
|
Rear LED screen |
P4 1280*1440 mm |
|||
|
Generator power |
15KW |
|||
|
Standard equipment |
1,Van box material:5cm composite steel frame 2,Wood floor and lighting system 3,Electrical source distribution box 4,Circulating ventilation cooling system 5,Control computer:1 SET 6,Waterproof speakers:4 PCS 7,Power amplifier: 1 SET 8,OUMA Silent generator: 1 SET 9,Operation desk 10.Media control system |
|||
