Shacman 15ton 20ton Heavy Duty Cargo Truck with Rear Lifting Platform
1.Light kerb weight, large loading capacity.
2.High strength, don‘t distort.
3.There isn‘t gap between boards.good sealed performance.
4.Perfect heat preservation and  refrigeration thermal insulation performance.
5.The surface has watertightness, corrosion resistance and is easy to clean.
6.The cargo body are easy to mend and without any sign.

Description FEEDBACK

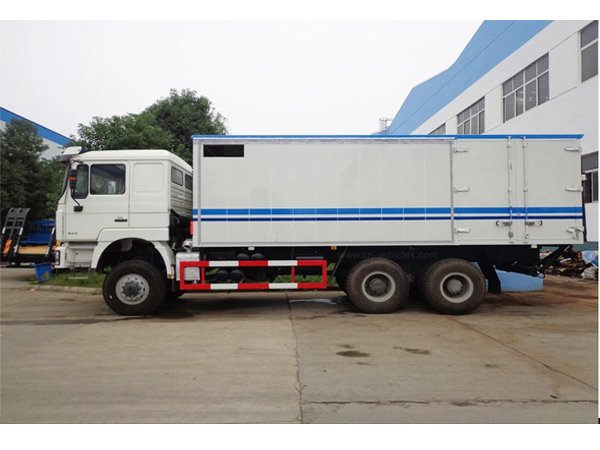

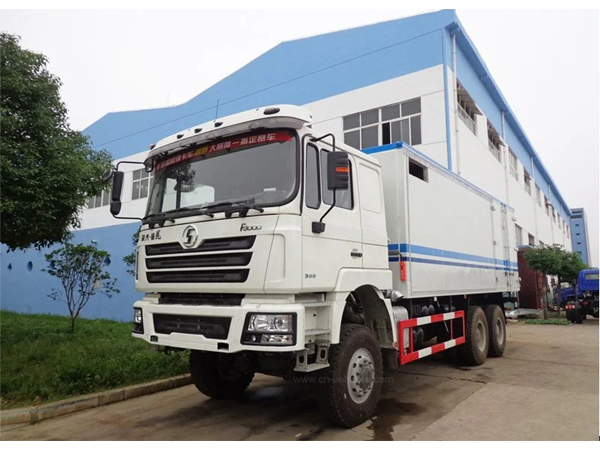

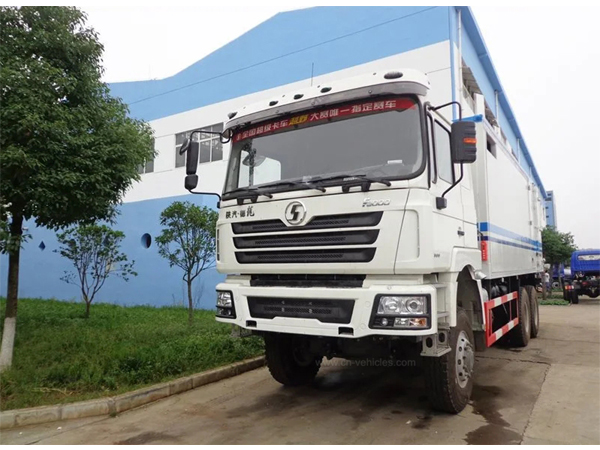

Shacman 6X4 15ton 20ton Heavy Duty Cargo Truck with Rear Lifting Platform


Description:

1. Strong power, super load capacity. We can provide trucks with a load capacity of up to 40 tons.
2. Warranty: One year for the engine, gear box, and axles.

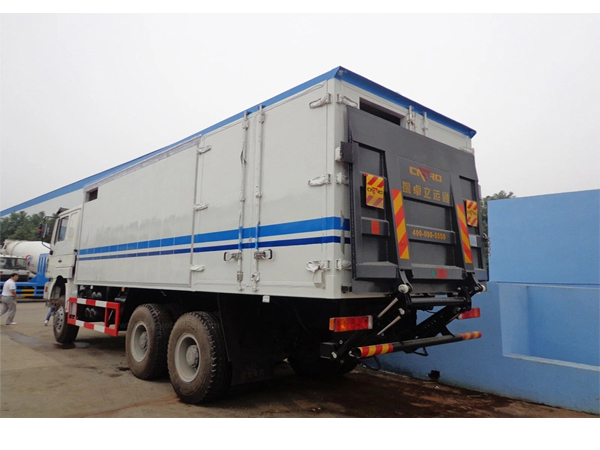

3. Rear Hydraulic Lifting Platform can carry 1500 kg.
4. Technical supporting and modification according to customers‘ requirements are available.



Condition

New condition/left hand drive/6x4

Chassis

Brand

Shacman

Curb weight(kg)

11380kg

Wheelbase(mm)

4375+1400mm

Dimensions(mm)

10100*2490*3720 mm

Front/Rear axle loading(kg)

7500/13000 kg

Front/Rear overhang(mm)

2036/1860 mm

Approach/Departure angle(°)

18/11

Max. driving speed(km/h)

99 km/h

Clutch

Reinforced diaphragm clutch

Brake

Air brake

Steering Gear

Power steering, hydraulic steering with power assistance

Tire

Quantity

10pcs with one spare tire

Specifications

12.00R20

Transmission

Manual type, 9 Forwards and 1 reverse

Cab

Single row seat

Engine

Fuel type

Diesel

Displacement(ml)

9726 ml

Horsepower(HP)

300 HP

Cylinder number

4

Emission standard

Euro 4

Upper

Box

Size(mm)

7400*2326*2700 mm

Volume(m3)

46.0 CBM

Max. Loading weight(tons)

15tons-20tons

Material

Roofing iron

Rear hydraulic lifting system

Control model

Hydraulic control

Control panel

Close to the rear door

Panel material

Carbon Steel

Size(width * height)

2300*1800mm

Max. Loading capacity(kg)

1500 kg

Remarks

  1. Color is optional
  2. Logo design as per customer needs
