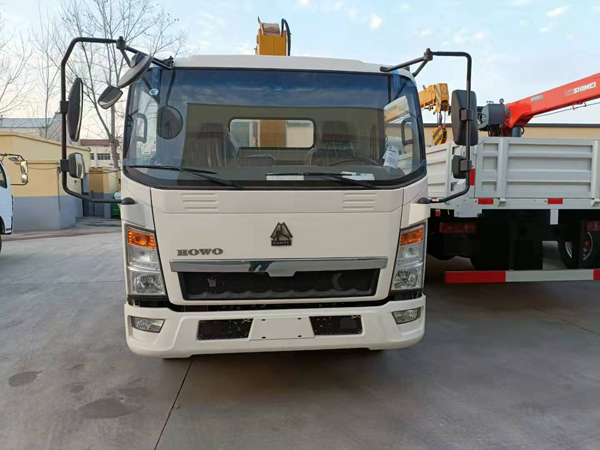

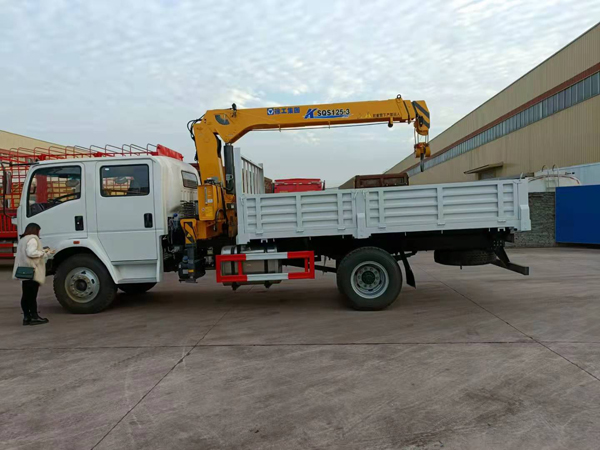

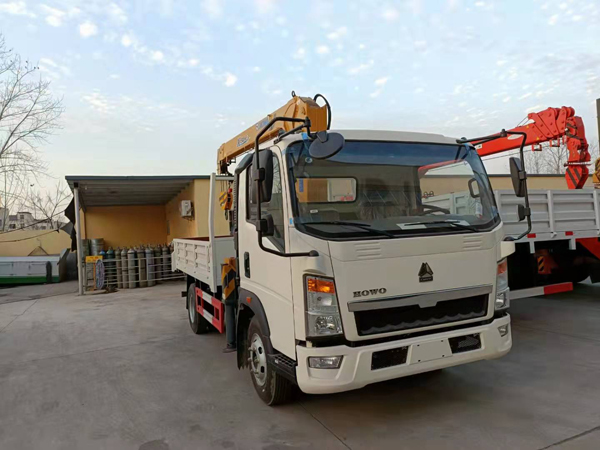

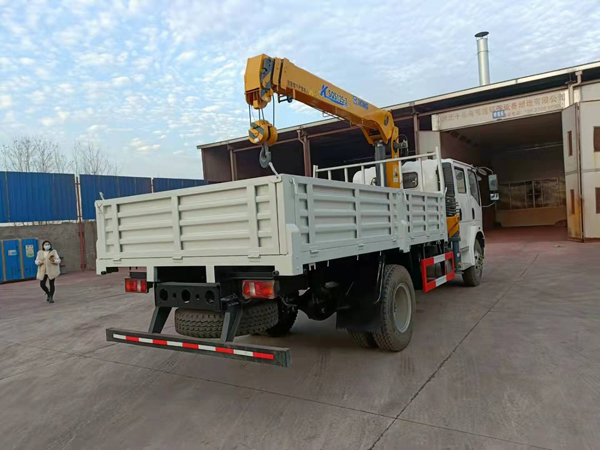

Sinotruck HOWO Truck With 5Ton XCMG Straight Crane

Sinotruck HOWO Truck With 5Ton XCMG Straight Crane

Description FEEDBACK

Sinotruck HOWO 4x2 truck mounted crane for sale


1 telescopic boom or knucle boom all available
2 crane brand :CLW,ZOOMLION, SMJ, S ANY or others
3 Crane capacity : 2 ton ,3.2 ton ,4 ton ,5 ton ,6.3 ton ,7 ton ,8 ton ,10 ton ,12 ton ,14 ton ,16 ton ,20 ton ,25 ton ,30 ton ,40 ton ,60 ton ,70 ton ,80 ton ,100 ton ,120 ton ,150 ton etc

Truck crane ,also called boom truck crane,mobile truck crane , truck mounted crane , hydraulic folding truck crane,telescopic straight boom crane,truck with crane , crane lorry,hydraulic arm crane for trucks,pickup truck mounted crane,light truck with crane,folding arm hydraulic lift platform,hydraulic crane telescopic boom,mobile crane price ,self loader truck with boom crane,new forland lorry truck mounted crane,telescopic boom truck mounted crane,flatbed knuckle boom truck crane,6 wheelers truck with crane boom truck cranes sale etc


 A crane mounted on a truck carrier provides the mobility for this type of crane. This crane has
two parts: the carrier, often referred to as the Lower, and the lifting component which includes the
boom, referred to as the Upper. These are mated together through a turntable, allowing the upper
 to swing from side to side. These modern hydraulic truck cranes are usually single-engine machines, with the same engine powering the undercarriage and the crane. The upper is
usually powered via hydraulics run through the turntable from the pump mounted on the lower. In
older model designs of hydraulic truck cranes, there were two engines. One in the lower pulled the
 crane down the road and ran a hydraulic pump for the outriggers and jacks. The one in the upper ran
the upper through a hydraulic pump of its own. Many older operators favor the two-engine system
due to leaking seals in the turntable of aging newer design cranes.



Technical date :

Truck Specification
Truck model CL5044JSQZ
Cab HOWO SINGAL ROW CABIN
Driving Type 4*2 Left hand driving
Max Speed (km/h) 95
Overall dimension(mm) 5995*1900*2820
GVW( kg) 4495
Mass in working order kg) 2900
Wheelbase(mm) 3360
F/R track base (mm) 1600/1535
F/R overhang (mm) 1160/1470
Approach/Departure Angel 18/16
Tire 7.00R16(6+1)
Clutch Single-plate dry diaphragm spring clutch
Steering Hydraulic steering with power assistance
Gear box WLY525
Bridge Front axle 2T
Rear axle 3.5T
Enging Model 4DW93-84
Fuel Type Diesel fuel
Type Water-cooled four-stroke,, direct injection, turbocharged
Exhaust(ml) 2540
Max output power/rotate speed (hp /rpm ) 90/3000
Max torque/rotate speed(N.m/rpm) 220/2100
Braking  system Service Brake Compressed air brake
Park Brake Spring energy
Eletric system 24v
Upper-Body  specification
Model SQ3.5A2
Match the truck Above 3 tons loading truck
Assembling space (mm) 900
Mass working weight (kgs) 950
Max lifting weight (t) 3.5
Max lifting torque(t.m) 8.8
Max lifting height (m) 9.5
Max working radius (m) 7.61
Cross section form Pentagon
Number of arms 3
Length(m) 3.5-7.82
Extending speed(m.s) 0.1
Range 1-73
The arm angular velocity (°/s) 5.2
Hook speed (m/min) 9
Diameter of wire rope (mm) 8
Length of wire rope (mm) 45
Slewing mechanism Rotating speed (r/min) 2.5
Rotating range (°) 360
Leg Type H
Span(m) 1.85-3.1
Hydraulic system Pressure (mpa) 17
Capacity(l) 45
Safety device Overwind alarm
Lifting capacity
Working radius (m) 2.5 3.5 4.5 5.5 7.61



Rated loading (kgs) 3500 1380 930 680 430
