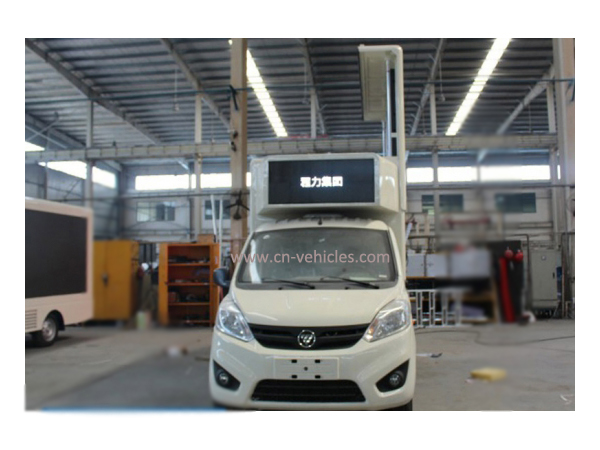

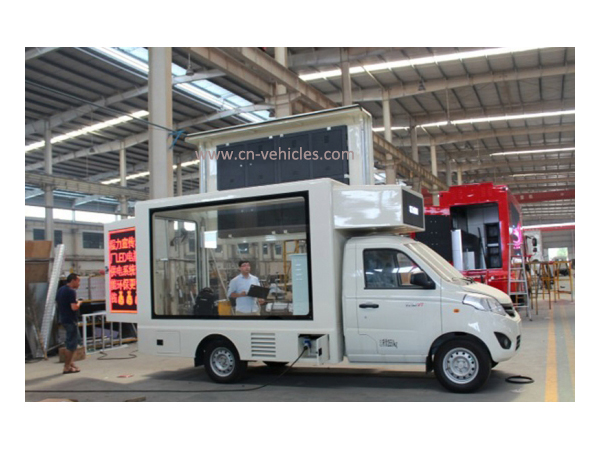

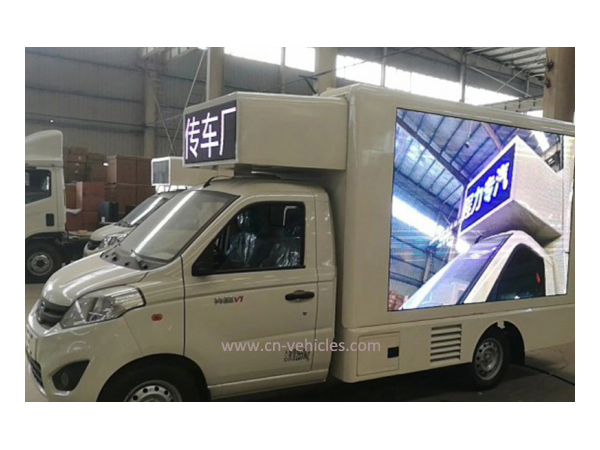

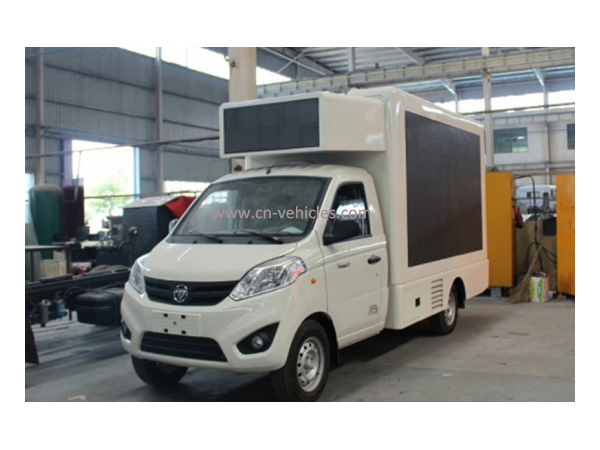

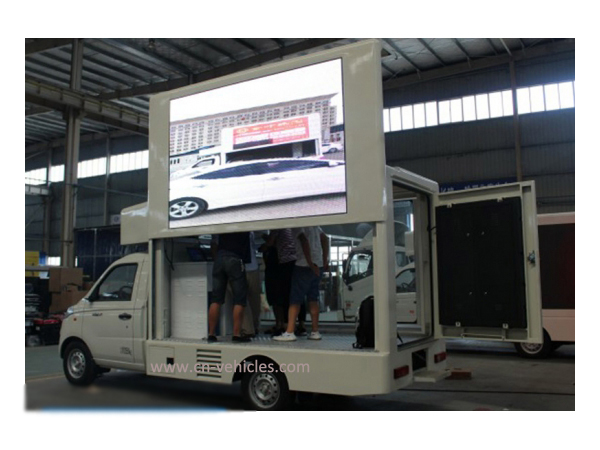

Foton Mini 6 Wheels Mobile P6 Outdoor Water-Proof Led Screen Truck For Sales

LED display, also called led screen, led video wall, or led sign, with its unique advantages, has gradually replaced the traditional billboards, light boxes, etc. LED display advertising has become a new force in the media industry.Traditional advertising can only show pictures, But LED display/led video wall/led screen can perfect combine text, pictures, video, and sound with high resolution, high brightness and full colour!

Description Get quotation

Foton Mini 6 Wheels Mobile P6 Outdoor Water-Proof Led Screen Truck For Sales

Traditional advertising can only show pictures, But LED display/led video wall/led screen can perfect combine text, pictures, video, and sound with high resolution, high brightness and full colour!

LED display Advertising screen can easily attract the attention of pedestrians, and also are easy to remember, which can generate greater advertising effectiveness.Led display screen now are widely applied in media advertising, transportation, Security,Real estate and Stage show background.

Technical Date

Vehicle Description
Vehicle model	LED screen truck		Overall dimensions (mm)	5995×2025×2995
GVW (kg)	Appro×5495		Fact loading capacity(m3)	-
Mass in working order (kg)	Appro×4300		Max. Speed (km/h)	90
Chassis Description
Chassis		CA1047
Cab		Short cab withRight hand drive
Color		Optional
Allowable person in cab		3
Wheel base (mm)		3360
Front/Rear track base (mm)		1415/1485
Front/Rear overhang (mm)		1085/1550
Number of axles		2
Axle	Front axle	2000
	Rear axle	3500
Traction system		4*2
Braking system		Air brake
Electric system		24V
Transmission		5speed
Tire specification		7.00R16
Tire quantity		6+1
Engine Description
Enginemodel		4DW93-84
Emission standard		Euro3
Exhaust/output		2540ml/66kw
Horse power		85hp
E Up-parts Description
Left side LED screen		P5 3840*1760 mm
Right side LED screen		P5 3840*1760 mm
Rear LED screen		P5 1280*1440 mm
Generator power		15KW
Standard equipment		1,Van box material:5cm composite steel frame 2,Wood floor and lighting system 3,Electrical source distribution box 4,Circulating ventilation cooling system 5,Control computer:1 SET 6,Waterproof speakers:4 PCS 7,Power amplifier: 1 SET 8,OUMA Silent generator: 1 SET 9,Operation desk 10.Media control system
