Shacman 10 Tons Water Foam Fire Fighting Truck for Sales
Fire fighting truck can be divided into many types :
According to vehicle size , There are mini fire fighting truck , Light fire fighting truck , Medium fire fighting truck , Heavy duty fire fighting truck .
According to chassis drive type , there are 4*2 fire fighting truck , 6*4 Fire fighting truck , 8*4 fire fighting truck , and off road type 4*4 , 6*6 fire fighting truck .
According to chassis brand , There are ISUZU fire fighting truck , Dongfeng fire fighting truck , Foton fire fighting truck , Faw fight fighting truck , Shacman fire fighting truck , Sinotruk fire fighting truck , Mercdes fire fighting truck , etc .
According to fire agent , there are water tank fire fighting truck , dry powder fire fighting truck , water / Foam fire fighting truck .
Description
Get quotation

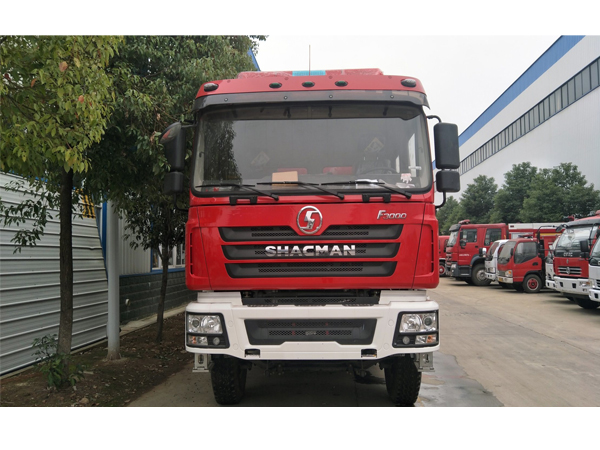

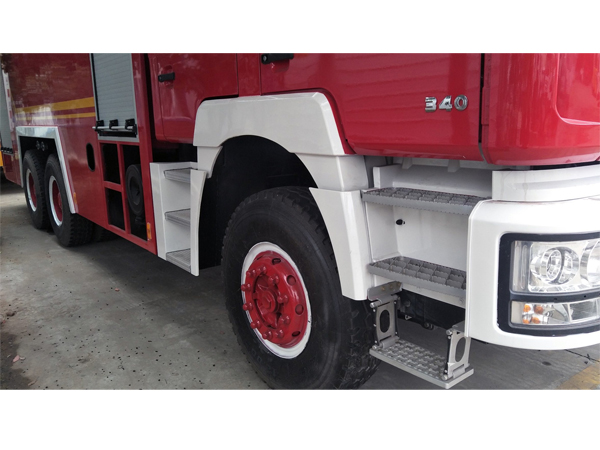

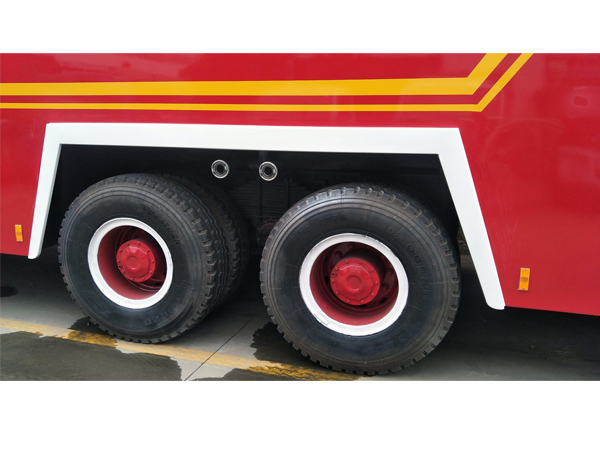

Shacman 6*4 10 Tons Water & Foam Fire truck For Sales
SHACMAN Fire Truck Engine Model WD615.92 ,19kw ,266HP, 9726CC
Our SHACMAN Fire Truck have a wide range of chassis brand optional , different load volume to choose .
SHACMAN Fire Truck (also called fire fighting vehicle , Fire engine , Fire fighting apparatus , Fire service truck , Fire and rescue truck , fire truck , fire fight truck , Foam fire tank truck , Fire extinguishing foam tanker ) is a vehicle designed primarily for fire fighting operation to extinguish fire efficiently to prevent fire spread , reducing the loss caused by fire maximum.
Fire fighting truck can be divided into many types :
According to vehicle size , There are mini fire fighting truck , Light fire fighting truck , Medium fire fighting truck , Heavy duty fire fighting truck .
According to chassis drive type , there are 4*2 fire fighting truck , 6*4 Fire fighting truck , 8*4 fire fighting truck , and off road type 4*4 , 6*6 fire fighting truck .
According to chassis brand , There are ISUZU fire fighting truck , Dongfeng fire fighting truck , Foton fire fighting truck , Faw fight fighting truck , Shacman fire fighting truck , Sinotruk fire fighting truck , Mercdes fire fighting truck , etc .
According to fire agent , there are water tank fire fighting truck , dry powder fire fighting truck , water / Foam fire fighting truck .
| Vehicle Name: | SHACMAN Fire Truck | Vehicle Category: | SHACMAN Fire Truck | ||
| Chinese Brand: | SHACMAN JDFTRUCK | English brand : | SHACMAN JDFTRUCK | ||
| Notice batch : | 264 | Exemption: | No | ||
| Engine | Engine Manufacturer | Displacement (ml) | Power (kw) | ||
| WD615.92 | China national heavy duty truck group co., LTD | 9726 | 196 | ||
| Engine brand : | SHACMAN | Fuel type: | Diesel (mm) | ||
| Dimensions: | 10025×2500×3600(mm) | Compartment Size : | × × (mm) | ||
| The total mass : | 27600(Kg) | Payload: | 0 | ||
| Curb weight: | 14800(Kg) | Rated Quality: | 12350(Kg) | ||
| Quality Trailer : | (kg) | Semitrailer saddle : | |||
| Rated capacity : | ( People ) | Cab seats : | 2+4( People ) | ||
| Approach / departure angle : | 16/13(°) | Front / rear overhang : | 1500/2490(mm) | ||
| Axle load: | 6900/20700 | Wheelbase: | 4600+1350,4575+1400(mm) | ||
| Number of axes: | 3 | Maximum speed: | 85(km/h) | ||
| Fuel consumption: | Spring: | 10/12,4/12,10/- | |||
| Number of tires : | 10 | Tire Size: | 11.00-20,11.00R20,12.00-20,12.00R20 | ||
| Front track: | 2022,2041 | Rear track: | 1830/1830 | ||
| Brake Front: | After braking : | ||||
| Built before the parade : | After operating system : | ||||
| Steering Type : | Steering wheel | Starting method: | |||
| Chassis Emission standard: | GB17691-2005(3),GB3847-2005 | ||||
| Transmission Type: | According to the standard : | ||||
| Vin Vehicle Identification Number: | LZZ5BLMF××××××××× LZZ5BLNF××××××××× LZZ5BMMF××××××××× LZZ5BMNF××××××××× | ||||
| Logo Enterprises : | JDFtruck | Release date: | 20160919 | ||
| Vehicle Notes : | New STEYR Water Fire Fighting Truck,Fire Truck | ||||
New SHACMAN Water Fire Fighting Truck,Fire Truck Chassis
| STEYR truck chassis SHACMAN truck chassis SX1257M4647C | |||
| Company Name : | STEYR Motor Co., Ltd. | ||
| Chassis Type: | SX1257M4647C | Chassis Category: | II |
| Product Name: | Truck chassis | Product Brand: | SHACMAN |
| Zip Code: | 250002 | Catalog number : | 63 |
| Specifications: | Length:9895Width:2496 Height: 2958,3563 | ||
| Fuel Type: | Diesel fuel | According to the standard : | GB17691-2005(),GB3847-2005 |
| Steering Type : | Steering wheel | ||
| Number of axes: | 3 | Wheelbase: | 4600+1350,4575+1400 |
| Spring: | 10/12,4/12,10/- | Number of tires : | 10 |
| Tire Size: | 11.00-20,12.00-20 16PR11.00R20 16PR,12.00R20 14PR | Tread : | Front track 2022,2041 Rear track 1830/1830 |
| The total mass : | 25000 | ||
| Curb weight: | 9230,8530 | Quality Trailer : | |
| Semitrailer saddle : | Front passenger : | 2 | |
| Close to the departure angle: | 16/18 | Rear suspension : | 1500/2445,2420 |
| Maximum speed: | 90,102 | ||
| Picture: | SHACMAN Water Fire Fighting Truck,Fire Truck | ||
| STEYR truck chassis |SHACMAN truck chassis ZZ1166M4616C1 Engine Specification | |||
| Engine Model | Engine Manufacturer | Displacement (ML) | Power (ML) |
| WD615.92 | SHACMAN heavy duty truck group co., LTD | 9726 | 196 |
| Identification code : | LZZ5BLMF××××××××× LZZ5BLNF××××××××× LZZ5BMMF××××××××× LZZ5BMNF××××××××× | ||
| Other: | New SHACMAN Water Fire Fighting Truck,Fire Truck | ||
