Sinotruck HOWO 266HP 5000Liter Engine Compressed Air Water Foam AB Fire Fighting Truck
HOWO fire fighting truck is adopted SINO TRUCK HOWO chassis, equipped with SS water tank 4500L, SS foam tank 500L, 4x50kgs DCP empty extinguisher, 4x22.5kgs CO2 cylinders, telescopic light 4x1000W, 10.5kw HONDA generator, as well as standard firefighting equipment, such as aluminum ladder, forcible entry rescue tool and so on. The vehicle has crew cab and max 5 passengers inside. The body main structure is made by high quality steel and the equipment room is covered with shutter door and equips rescuer and personal protection device, which is based on the requirement.


Description FEEDBACK

Sinotruck HOWO 266HP 5000Liter Engine Compressed Air Water Foam A/B Fire Fighting Truck



HOWO fire fighting truck is adopted SINO TRUCK HOWO chassis, equipped with SS water tank 4500L, SS foam tank 500L, 4x50kgs DCP empty extinguisher, 4x22.5kgs CO2 cylinders, telescopic light 4x1000W, 10.5kw HONDA generator, as well as standard firefighting equipment, such as aluminum ladder, forcible entry rescue tool and so on. The vehicle has crew cab and max 5 passengers inside. The body main structure is made by high quality steel and the equipment room is covered with shutter door and equips rescuer and personal protection device, which is based on the requirement.

Sinotruck HOWO 266HP 5000Liter Engine Compressed Air Water Foam A/B Fire Fighting Truck Product Parameters:

Name

Parameter

Overall Dimension

8870x 2500 x 3430mm

GVW

16000KGS

Water Tank Capacity

4500L

Foam Tank Capacity

500L

Telescopic lights

4x1000W

Engine Output

290Hp

Emission

Euro III

Max Speed

90km/h

Front / Rear Axle Load

7T / 16T

Tire

295/80R22.5, 6pcs+1 spare tire

Allowable Cab Passengers

2+3

Water Tank

Tank capacity

4500L

Material

SS304, side 4mm bottom 4mm

Tank fixing

Fixed on chassis frame

Manhole

One manhole with a diameter of 500 mm, with quick locking/opening device

Foam Tank

Tank capacity

500L

Material

SS304, side 4mm bottom 4mm

Tank fixing

Fixed on chassis frame

Manhole

One manhole with a diameter of 500 mm, with quick locking/opening device

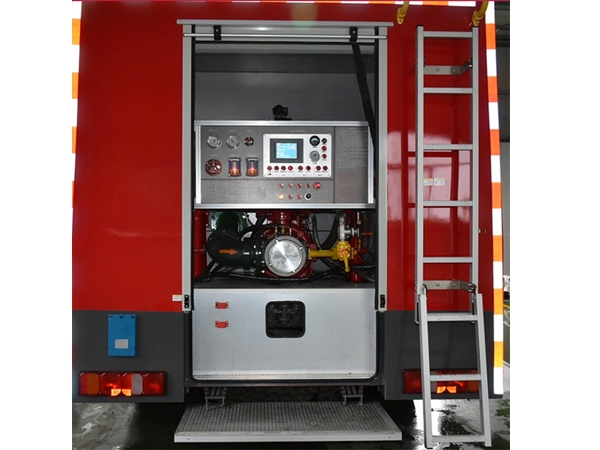

Fire Pump

Fire pump model

CB40.10/6.50

Water flow rate

3000lpm@10kg/cm2
360lpm@40kg/cm2

Maximum suction depth

7m

Diversion device

Self-contained slide pump

Priming time

Maximum depth of suction < 50s

Fire Monitor

Fire monitor model

PL48

Flow rate

48L/S, 1.0MPa

Covering range

water≥65m

Rotating Angle

360° Horizontal Rotation

Max. Pitch / dip angle

pitch angle≤-35°
dip angle≥+75°

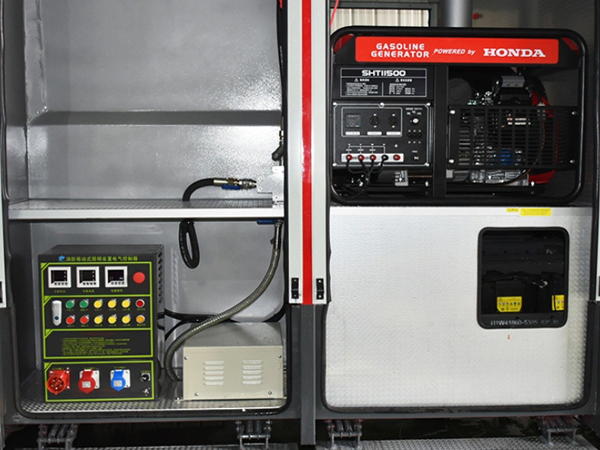

Telescopic lights & generator

Lights

4*1000W

Type

Pneumatically mast

Height

8m

Generator

HONDA 10.5KW
Gasoline type

Voltage

220V,50HZ

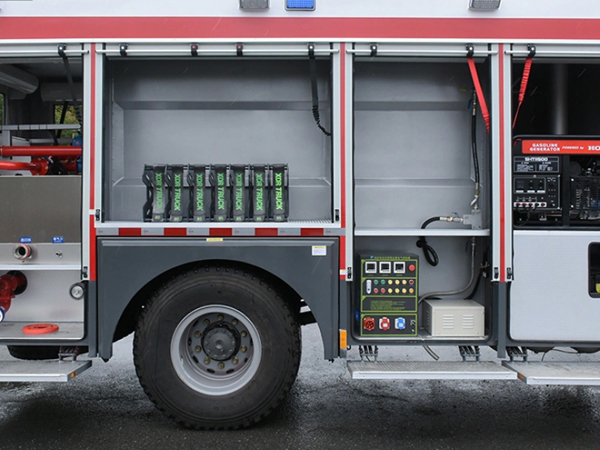

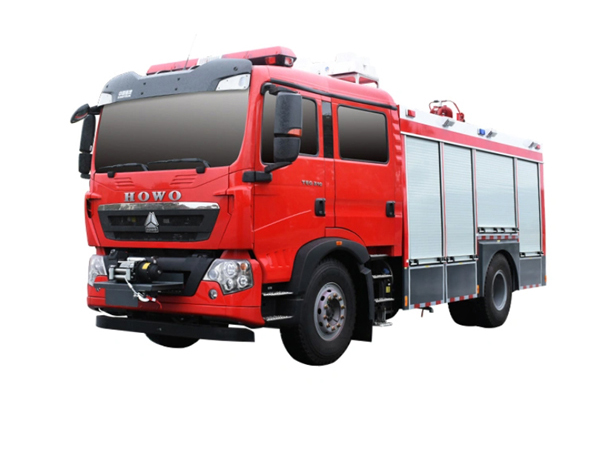

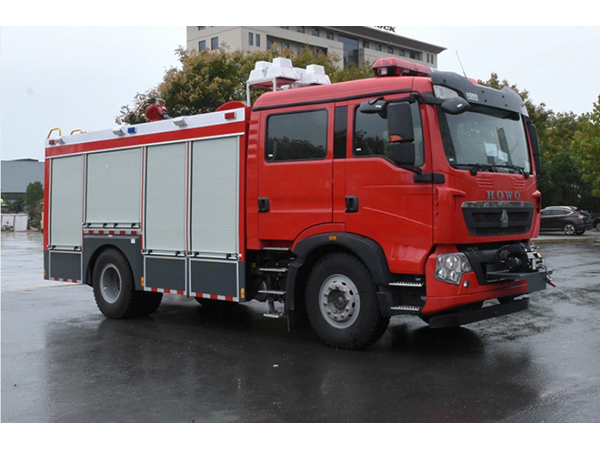

Sinotruck HOWO 266HP 5000Liter Engine Compressed Air Water Foam A/B Fire Fighting Truck Truck picture:
