Iveco 8000L Water Foam Fire Fighting Rescue Truck with Crew Cab
Water Capacity:6000L,Foam tank capacity 2000L
fire pump Low-middle pressure fire pump: CB20.10/30.60
flow:60L/s/1.0Mpa, middle pressure flow: 30L/s/2.0Mpa

GENLYON fire fighting truck, adopting new technology, use new materials, independently developed with intellectual property rights and, adopting IVECO GENLYON specialized firefighting CQ1164HMG461 type chassis modifications; the operation is simple and convenient, reliable, it is user trusted products. And it is the ideal fire equipment of public security fire brigade and large and medium-sized industrial and mining enterprises
Description FEEDBACK
Iveco 8000L Water Foam Fire Fighting Rescue Truck with Crew Cab

Water Capacity:6000L,Foam tank capacity 2000L
fire pump Low-middle pressure fire pump: CB20.10/30.60
flow:60L/s/1.0Mpa, middle pressure flow: 30L/s/2.0Mpa

GENLYON fire fighting truck, adopting new technology, use new materials, independently developed with intellectual property rights and, adopting IVECO GENLYON specialized firefighting CQ1164HMG461 type chassis modifications; the operation is simple and convenient, reliable, it is user trusted products. And it is the ideal fire equipment of public security fire brigade and large and medium-sized industrial and mining enterprises
  1. The fire truck is attractive appearance, smooth lines, high speed, flexible, agile driving safety.
  2. The fire truck has large load, good acceleration performance, and large power reserves.
  3. The pump, gun adopts domestic made with advanced technology, with high performance, small size and other characteristics. And using chassis engines matched power takeoff with the latest design and so that the fire truck has long firing range, large flow, great fire extinguishment capacity.
  4. Equipment box structure, rational layout, kit classification, centralized storage, convenient for picking up and placing.
  5. Cage construction of Equipment frame is importing German aluminum alloy profile structure, section bar connection use high strength special connecting piece built-in lap joint structure. The structure characteristics are high strength, beautiful appearance, flexible combination, maximize the use of equipment compartment space to place the equipment; inner mask is anodic oxidation treating pattern plate, the fire truck interior decorative style is identical, beautiful and generous.
  6. The truck headstock is two doors single row seats, adopting dual Manual cylinder to turn headstock, 2 people riding, compact structure, bright and spacious space, good vision, comfort ride.
  7. Liquid tank is high quality steel materials made, high strength, good environmental protection performance, long service life. Tank inside has set with baffles, tank body are respectively provided with manhole, foam filler, water outlet and sewage outlet.
  8. Water pump system is arranged in the pump room, compact structure, on left and right side has one set of water outlet pipeline, convenient for laying pipeline.
  9. Compartment surface is imported popular red wrinkle paint, non-glare, not cracking, not easy injury, good compatibility, beautiful generous.
  10. Both of carriage tow sides and the rear curtain doors are high strength aluminum alloy curtain door of German technology, reliable opening and closing, low noise, good sealing performance, beautiful appearance.

1, Truck Technical
  Descriptions parameter

General
Truck model: CQ1164HMG461
GVW/Curb weight 19800kg/12500kg
Rate of load 7300kg
Overall size 8450×2500×3580





Cabin




              Details
Flat head, singe-Cabin, two doors, elect window, wiper, Manual tilt cab,2 seat, 4 Set of safety belt in the back seats.
the back of rear occupant seat is provided with 4 air respirator fixing frame, and shock-proof device, in front of about 1.2 meters high has elaborate safety railing,
In addition to the original vehicle equipment, installation of 100W alarms, rotary lamp switch, Power take-off control switch, lamp switch and indicator light, The cab top is mounted with long row red blue alarm lamp.
Air conditioner Yes
Operation Command system Yes






Chassis
Drive type 4X2 left hand drive
Fuel type: Diesel





ENGINE
Manufacturer IVECO GENLYON
Model CERSOR9 C9.310 (F2CE0681E*B)

power
227kw/310hp
Rate power speed: 2100rpm
            Max torque:1250 N.m@900-1600 rpm
Displacement 8700ml
Emission standard Euro 3
Engine type Inline six cylinder,4-valve per cylinder, four-stoke, water-cooled, turbocharged and intercooled , Electronically controlled high pressure common rail system
Shift box FAST Brand 9-speed Forwarder with 2 Reverse
Brake Air brake
Wheelbase 4600mm
Tire specification 12.00R20
Tire number 6+1
Max speed 90km/h
Paint color Red and White painted
Angle of Approach/Departure 19/14
Front /Rear Suspension 1435/2450
Front/Rear Wheel track 2006/1850

Axle
Genlyon 7T front axle loading, Drum brake,16T rear axle payload, Central deceleration + wheel deceleration steel stamping and welding axle housing single drive axle






Special configuration



Water /Foam Tank parameter
Water Capacity:5500L,Foam tank capacity 1500L
Material: Made in carbon steel.
Structure: welded steel inner hoard tank, equipped with vertical and horizontal spurn water plate.
Equipment : 2 person Manhole with quick-locking and opening device
An overflow device, pressure relief device
A liquid level indicator
A sewage outfall , manual valve control

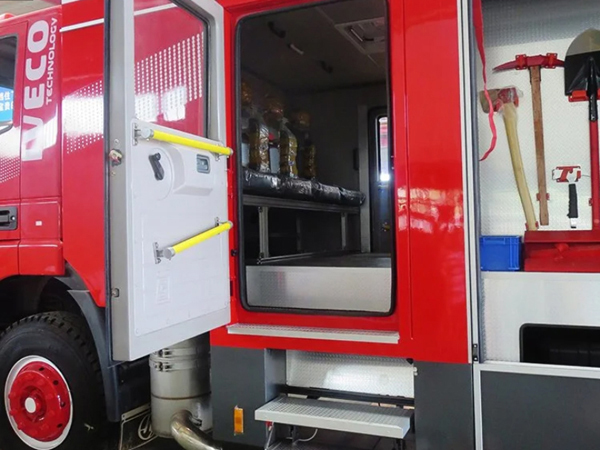

1, independent crew cab: located at the rear of cabin, fit 4 seats, all seat are molded and installed with three point seat belt, air respirator holder. Open door and foot pedal, high-strength glass door in both side. Speak system
2,Fire Pump: Mounted in the truck rear, Low-middle pressure fire pump: CB20.10/30.60,
 Leading water time ≤ 50s, within water depth 7m
Low pressure flow:60L/s/1.0Mpa, middle pressure flow: 30L/s/2.0Mpa
3,pipeline system:
Suction pipe: Equipped with a backward way pipe DIM:135mm,the water from then tank into the pump, installed a DIM 135MM manual butterfly valves, tank connection with pump.
Suction culvert: it fit water inlet at the rear of pump DIM 150mm,connect the suction pipe, connect way is Bluetooth connect button.
Water pipeline: at rear of pump have 4x80mm dim ball control outlet Normal pressure water
              At both side of pump have 4x65mm dim ball control outlet Middle pressure water.
             1x100mm dim cannon pipeline, flexible joints,100mm ball control.
Injection line :fit Dim 50mm circulating water pipe, through the pump directly inject water to the tank.
            Fit 2x80mm dim injection line on both side of truck.
Drain water: In order to protect the pump and ball valve, fit the drain water valve at the lowest place.
Cooling pipes: for PTO to deal with complex situations of work, fit cooling pipes and control valve.
4, The power take off (PTO)
  MODEL : sandwich
  Manipulation : solenoid valve control
Cooling: Forced adjustable water-cooled
Lubrication: splash oil lubrication
5,Fire water-foam dual monitor
Model: PP48  flow: 48L/S@1.0Mpa, Water range ≥ 65m, Foam range≥ 55m Rotary angle: 360°horizontal. Elevation/depression of angle: -15°~+60°
6,The instrument panel and board equipment:
Instrument panel located in the vehicle rear pump chamber, with a control panel and provided with adequate lighting; all the control handle, switch, indicating lamp nearby have metal corrosion formed Chinese identification; water pipeline layout and operation steps illustrate, using metal corrosion plate fixed in the proper position. All illustration plate and signs are persistent and high adhesion, which can withstand influence due to temperature and climate change caused; 10 years will not fall off or illegible.
Liquid level, Tachometer; pressure gauge;  vacuum pressure gauge; oil temperature gauge;  voltmeter; pump speed regulating device,20V power switch, pneumatic control valve switch.
7,Tool and pump store house
Material: Skeleton made of high quality steel, mask checkered aluminum oxide bonding structure.
Structure: All steel welded frame structure, around three sides is Aluminum alloy doors, fit flip-slip pedals, can stand a man working.
Spare part and tool in equipment boxes of truck Its satisfy all of normal used
2,SPARE PART and TOOLS OF UPLOADING
No. Part name Q‘ty UT
1 Suction hose(4m) 2 PC
2 Water filter   1 PC
3 Fire hose type(13-65-20m) 4 PC
4 Fire hose type(20-65-20m) 4 PC
5 Fire hose type(13-80-20m) 4 PC
6 Fire hose type(20-80-20m) 4 PC
7 Water thief  1 PC
8 Water collector(Bayonet) 1 PC
9 Dry powder fire extinguishers 1 PC
10 Hose wrapper  4 PC
11 Hose protector                    2 PC
12 Hose hook  4 PC
13 Ground hydrant wrench   1 PC
14 Underground hydrant wrench  1 PC
15 Suction hose wrench   2 PC
16 Try power fire extinguisher  1 PC
17 Fire bucket  1 PC
18 Straight hose nozzle  1 PC
19 Multifunctional hose nozzle  1 PC
20 Air foam nozzle 1 PC
21 Foam suction hose 1 PC
22 Fire Axe  1 PC
23 Iron arrows  1 PC
24 Iron spade  1 PC
25 Pickaxe flat tip type 4kg 1 PC
26 Fire hammer 1 PC
27 Adapter 65/80 2 PC
28 Origin truck chassis tool 1 PC
29 Middle pressure reel 1.0"* 30m 1 PC
30 Middle pressure Nozzle 1 PC

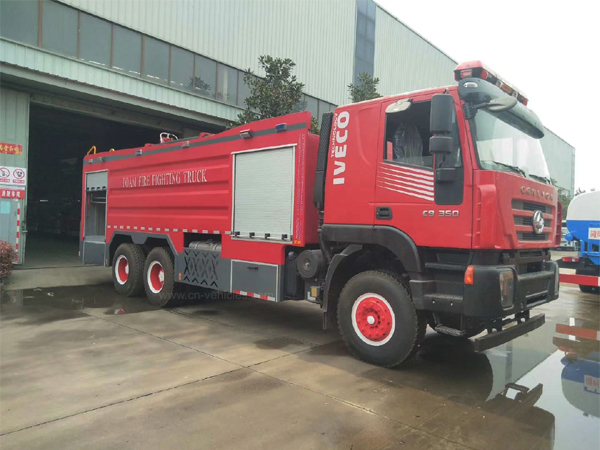

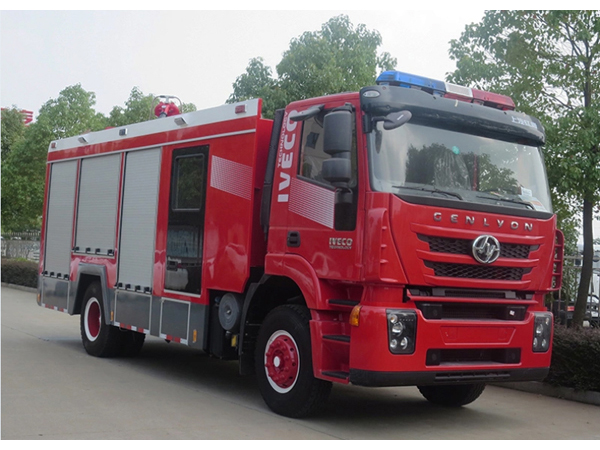

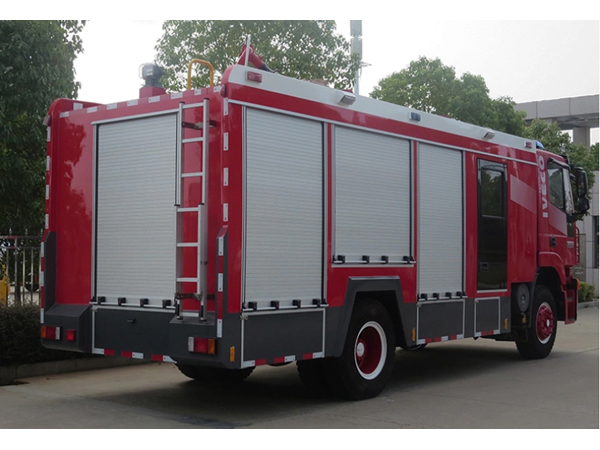

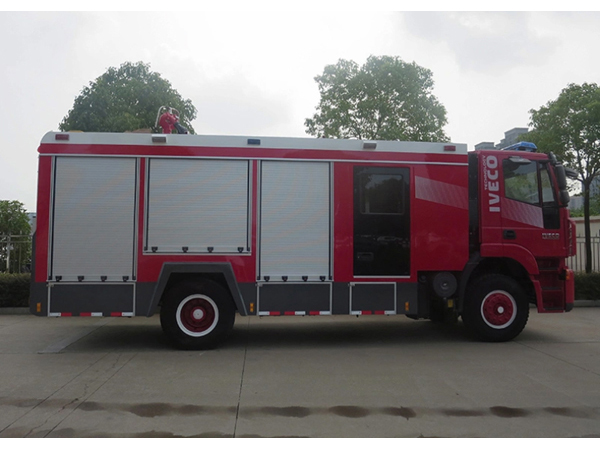

Iveco 8000L Water Foam Fire Fighting Rescue Truck with Crew Cab Truck Picture:
