48,000liters Fuel Haulage Fuel Delivery Truck Oil Tank Semi Trailer With Vapor Recovery

48,000liters Large Bulk Fuel Delivery Truck.

Tank Material: Q235B

Can choose Different Compartment with separate Discharging Valves & Hose

Main Beam: Q345B high tension steel in I style

Axles: FUWA, BPW, York, HJ, L1 Axles

Suspension: Leaf Spring Suspension

Tire: 11R22.5, 12R22.5 Tubless Tire.

Optional Vapor Recovery System

Description FEEDBACK

48,000liters Fuel Haulage Fuel Delivery Truck Oil Tank Semi Trailer With Vapor Recovery



48,000liters Large Bulk Fuel Delivery Truck.

Tank Material: Q235B

Can choose Different Compartment with separate Discharging Valves & Hose

Main Beam: Q345B high tension steel in I style

Axles: FUWA, BPW, York, HJ, L1 Axles

Suspension: Leaf Spring Suspension

Tire: 11R22.5, 12R22.5 Tubless Tire.

Optional Vapor Recovery System

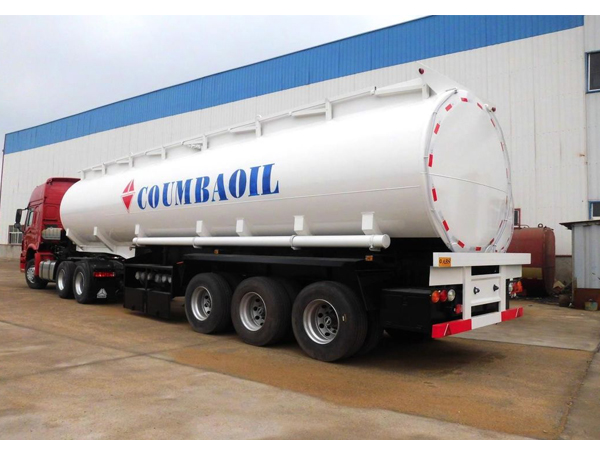

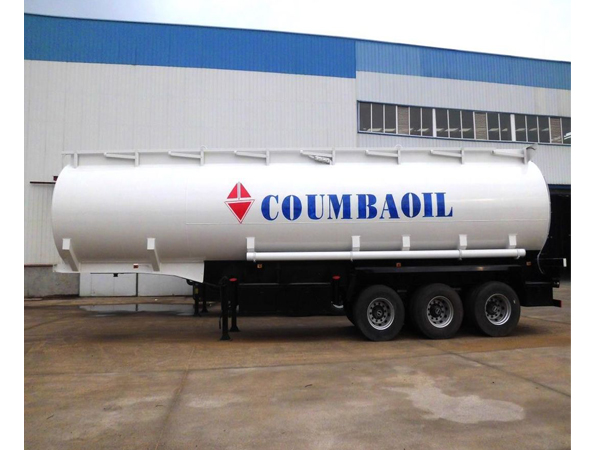

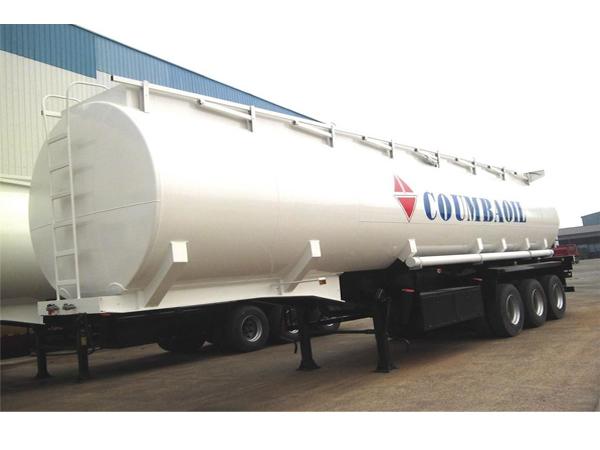

48m3 Fuel Tanker Trailer

Overall Size

12990 x 2500 x 3900 mm

Overall Trailer Weight

11,000 kg

Tanker

Tanker Shape

Elliptical Shape

Material

5mm Carbon Steel Q235B

Capacity

48 Cubic Meters

Compartment

4Piece, 8+16+16+8cbm

Manhole

4 Sets, 500mm Manhole with Breather Valve, Overfill Sensor.

Bottom Valve

4 Sets Bottom Valve for Emergency Cut-off

Discharging Filling Valve

4 set ∮100mm discharging valves

Chassis

Frame

High Tension Frame Steel Q345B, in 8mm side frame & 10mm main frame

Axle

3 Axles Fuwa 12T

Suspension

1 Set Mechanical Leaf Spring Suspension

Brake

WABCO Air Brake

Kingpin

1 Piece JOST, 2” or 3.5” Bolted

Landing Gear

1 Unit JOST 28T

Tire

12 Pieces with 1 Spare 12R22.5 Tubeless Tire, Aeolus Brand

Ground Wires

Anti-Static Ground Wires

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Extinguisher Holder

2 Pieces

Tool Box

1 Standard Tool Box
