Rust Resist Tank Design, good for fuel delivery, such as diesel,gasoline and so on
Tank Material: Carbon steel,Aluminum 5083 5454,
All Aluminum Pipe line with the aluminum valve.
optional for Bottom Discharge, API Manwhole, Vapor Recovery, Pnumatic Control Bottom Valve.
Whole Tank Rolling Machine to better protection
Good Welding Technic with Sub-merged Arc Welding

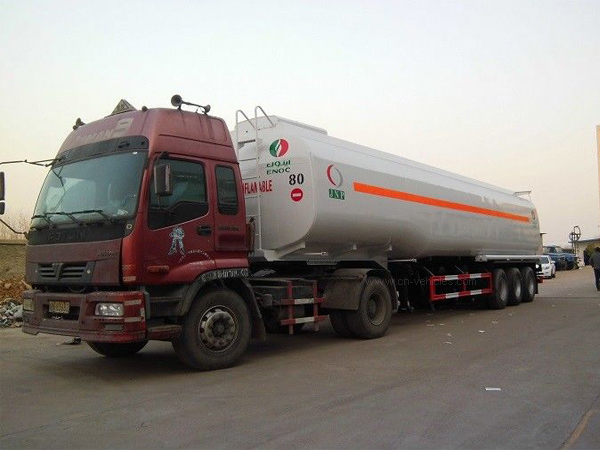

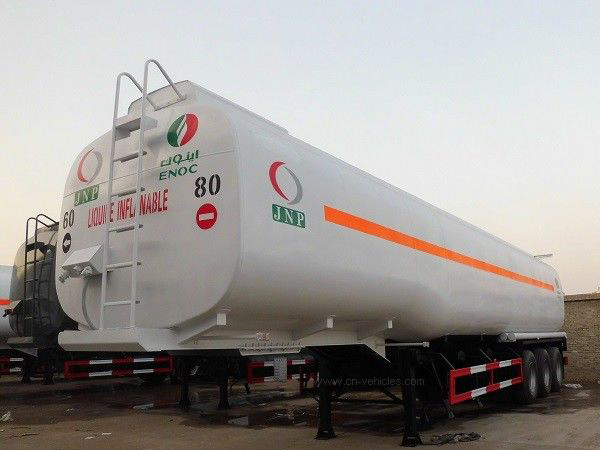

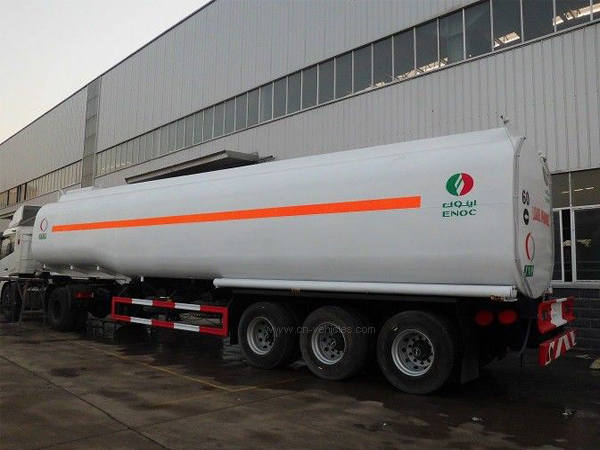

45000 Liters 3 Axle Fuel Delivery Truck Trailer , 45 Tons Fuel Tank Semi Trailer
Rust Resist Tank Design, good for fuel delivery, such as diesel,gasoline and so on
Tank Material: Carbon steel,Aluminum 5083 5454,
All Aluminum Pipe line with the aluminum valve.
optional for Bottom Discharge, API Manwhole, Vapor Recovery, Pnumatic Control Bottom Valve.
Whole Tank Rolling Machine to better protection
Good Welding Technic with Sub-merged Arc Welding
Overall Length |
10500mm |
|
Overall Width |
2500mm |
|
Overall Height |
3880mm |
|
Tare Weight |
10000KGS |
|
Loading Capacity |
45m3 |
|
Tank Body |
||
Shape |
Mono block Cylinder |
|
Total Volume(m3) |
45 CBM |
|
Tanker Body Material |
6mm carbon steel |
|
End plate |
6mm carbon steel |
|
Lifting Ladder |
Including Top walkway and backside steel material |
|
Manhole cover |
3 manhole cover, ∮500mm 3 sets with 3 breather valves |
|
Bottom Valve |
3 sets of API Pneumatic Bottom Valve |
|
Top Safety Rail |
1 Set |
|
Discharging valve |
3 set ∮100mm discharging valves |
|
No.of Compartment |
3(15000L+15000L+15000L) |
|
Discharging Pipe |
4”rubber hose, 2 pc, 6m long |
|
Chassis |
||
Main Beams |
Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation; |
|
Axle |
3 axles |
|
FUWA 13 Ton |
||
Landing Gear |
JOST brand Two-speed, manual operating, heavy duty landing gear |
|
King Pin |
JOST brand 2” bolt-in king pin |
|
Suspension |
German design heavy duty mechanical suspension |
|
Pneumatic Braking System |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. |
|
Wheel rim |
9.00-22.5 wheel rim, 13 pieces including one spare |
|
Tire |
12R22.5 tubeless tire with one spare tire, 13 pieces |
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint |
|
Accessories |
One standard tool box |
