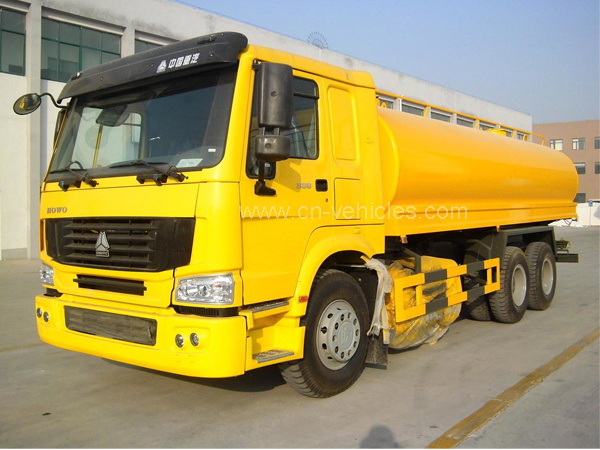

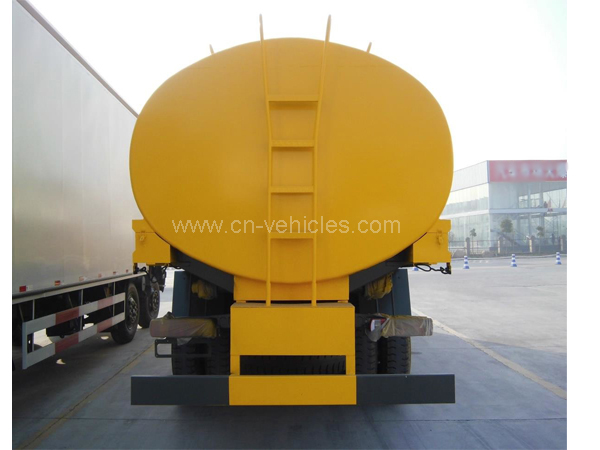

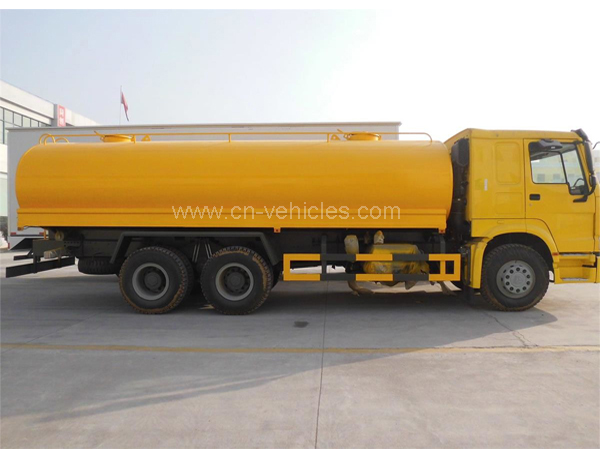

Sinotruk HOWO 6x4 3 Axle 25CBM Oil Delivery Truck for Long Distance Transport

Sinotruk Chassis with Large Horse Power Engine of 371HP

High Quality chassis good for many different kinds of road condition.

Good Quality Tank with different capacity for choice: 10,000 liter to 30,000Liters

API Manhole, Emergency cut-off Valve,

Optional Bottom Discharge, Vapor Recovery system.

Description FEEDBACK

Sinotruk HOWO 6x4 3Axle 25CBM White Product Oil Delivery Truck for Long Distance Transport


Sinotruk Chassis with Large Horse Power Engine of 371HP

High Quality chassis good for many different kinds of road condition.

Good Quality Tank with different capacity for choice: 10,000 liter to 30,000Liters

API Manhole, Emergency cut-off Valve,

Optional Bottom Discharge, Vapor Recovery system.


Oil Dispenser Truck:

Mobile Oil Station Supplying to Trucks & Cars

Pump, Dispenser, Filling Guns All in Only Unit

PTO Drive High Efficiency Oil Pump

Good Quality Oil Dispenser Powered by Truck Electricity

Tanker Capacity:

3,000 liters to 40,000 liters Per Customer Request.





Tank Material:

Q235 Strong Carbon Steel

Material Thickness:

5mm, 6mm

Tank Volume:

25000Liter, 6600US Gal

Loading Weight:

18Ton ~ 23Tons

Truck Brand:

Sinotruk HOWO

Engine:

Sinotruk 290HP, 336HP, 371HP,

Gearbox:

HW15710, 10 Foward & 2 Reverse

Optional:

Truck Pump With Dispenser System

Tool Box:

1 Tool Box

Cabin:

LHD Or RHD




Item No.

Parameters

Overall Dimension

10200x2500x3600 mm

Gross Vehicle Weight

25000 kg

Curb weight

10870 kg

Loading Weight

14000 kg

Wheel Base

4600+1350 mm

Front/Rear Tread

2022 / 1830 mm

Front Axle

HF9, 1x9000 kg

Rear Axle

HC16, Heavy Reduction Drive Axle, STR Hub-reduction with Differential
Locks between Wheels and Axles, Ratio 5.73

Engine

Sintruck Engine WD615.87, 6-cylinder in line, 4-stroke, Water-cooled, Turbo-charged & inter-cooled, Direct Injection

Engine horsepower

290 HP Euro II

Displacement

9.726 L(Diesel)

Full loading Fuel
Consumption Rate

Maximum 193 g/kW.h

Max Driving Speed

90 km/h

Gear Box

HW15710, 10 Forward Gear & 2 Reverse Gear, High and Low Shifting

Cabin

HW76 Cabin, 2 Passenger Allowed with 1 sleeper, Left Hand Driving,
With Air Conditioner,

Tire

11.00-20, 10 pieces with one spare tire

Tank Capacity

20,000 Liters

Tank Material

Q235 High Tension Steel, 6mm Thick Carbon Steel, With 6 Separated Compartment, Customized Tank Color, Can also Paint Customer‘s Logo or Advertisement on Tank.

Other Equipment

6 Ball Valves in each compartment for gravity discharging.
6 Emergency Cut Off valve.
