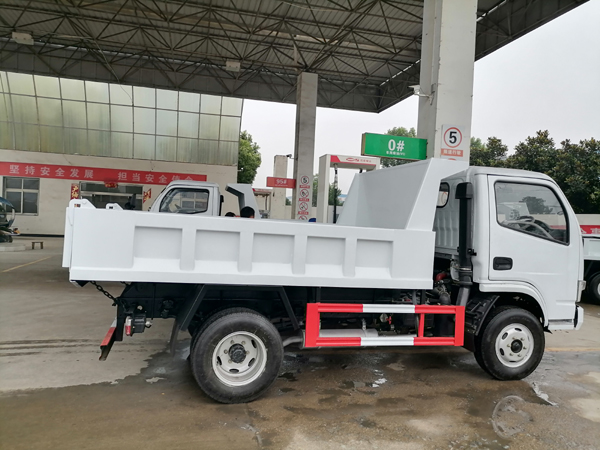

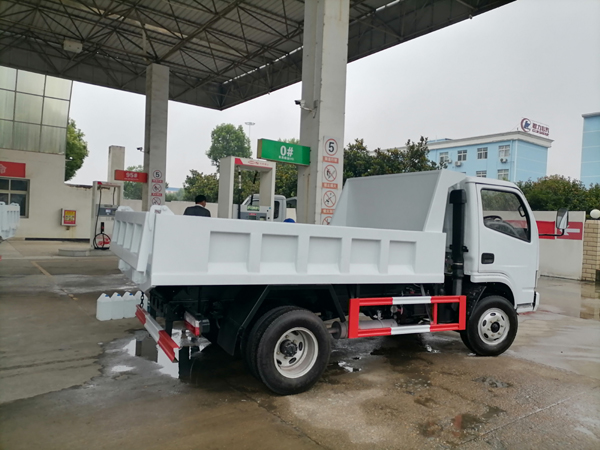

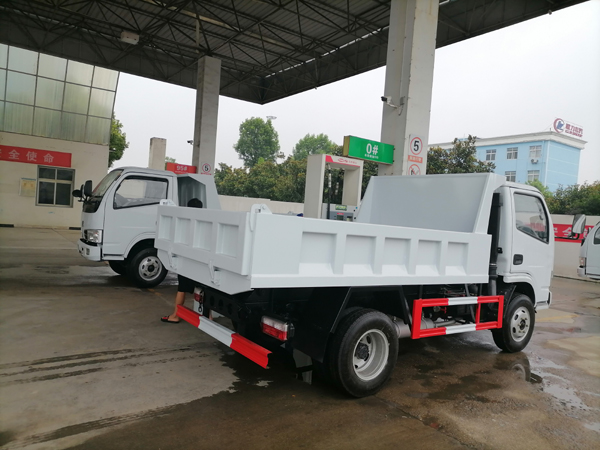

CLW brand RHD 5 Ton 6 Wheels Dump Truck
dump truck (or, UK, dumper tipper truck) is a truck used for transporting loose material (such as sand, gravel, or dirt) for construction. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front, allowing the material in the bed to be deposited ("dumped") on the ground behind the truck at the site of delivery. In the UK and Australia the term applies to off-road construction plant only, and the road vehicle is known as a tipper, tipper lorry (UK) or tip truck (AU).
Description
Get quotation
CLW brand 5 Ton 6 Wheels Dump Truck
A dump truck (or, UK, dumper tipper truck) is a truck used for transporting loose material (such as sand, gravel, or dirt) for construction. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front, allowing the material in the bed to be deposited ("dumped") on the ground behind the truck at the site of delivery. In the UK and Australia the term applies to off-road construction plant only, and the road vehicle is known as a tipper, tipper lorry (UK) or tip truck (AU).
| Items | Descriptions | Specifications and Types |
| General | Truck Name | Dump truck |
| Drive Type | 4*2 | |
| Gross Weight(kg) | 7495 | |
| Curb Weight (kg) | 3800 | |
| Overall Dimensions L*W*H(mm) | 5500×2300×2300 | |
| Engine | Engine Model | CY4102-C3F |
| Engine Brand | Chao Chai | |
| Fuel Type | Diesel | |
| Max Output Power | 70kw/95HP | |
| Emission Standard | Euro III | |
| Displacement(ml) | 3856 | |
| Engine Type | 4 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling | |
| Chassis | Chassis Brand | CLW GROUP |
| Cab | Flat roof | |
| Tire No. | 6 | |
| Tire Specification | 7.00-16 Nylon tire | |
| Wheelbase (mm) | 3300 | |
| Axle No. | 2 | |
| Gear Box | 5 speed forward with 1 reverse, manual | |
| Steering Wheel | Right Hand Drive with power-assisted | |
| Brake | Air brake | |
| Tipping system | Box inner dimension(mm) | 3600x1750x600 |
| Box material | Carbon steel,side 3mm,bottom 4mm | |
| Discharge type | Rear tipping |
