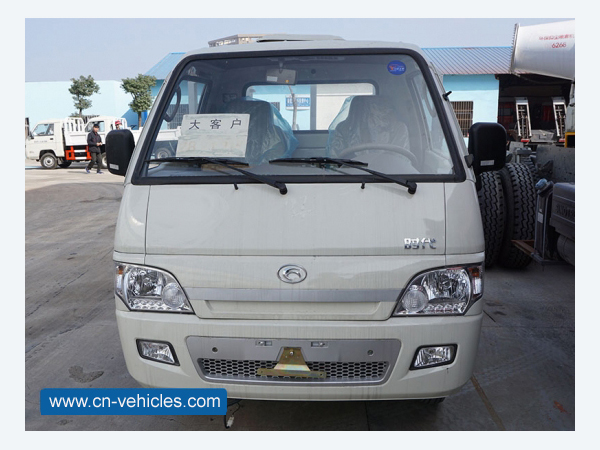

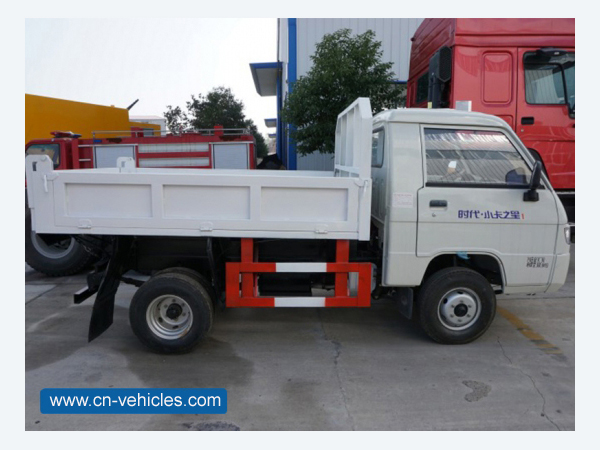

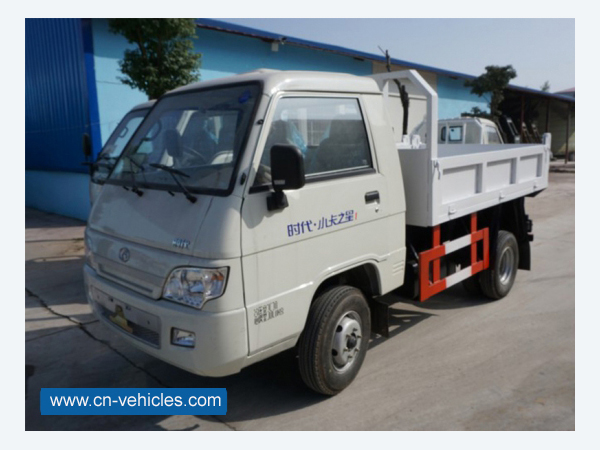

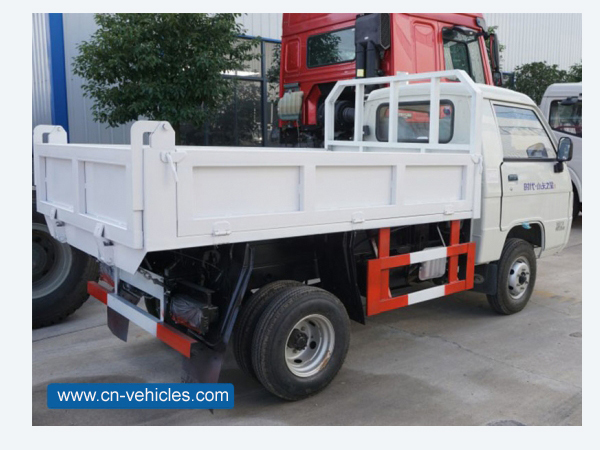

FOTON Forland 6 Wheeler 3000kg Small Capacity Dumper Truck For Sales

Vehicle Description

Vehicle model

Tipper truck

Overall dimensions (mm)

4316×1508×1920

GVW (kg)

Appro×2000

Fact loading capacity(kg)

1500

Mass in working order (kg)

Appro×1150

Max. Speed (km/h)

90

Chassis Description

Chassis Model

BJ1020

Cab

Single row non-longhead cab can turn over

Color

 Optional

Allowable person in cab

 2

Wheel base (mm)

2456

Front/Rear track base (mm)

1260/1260

Front/Rear overhang (mm)

795/1065

Number of axles

2

Axle

Front axle

760

Rear axle

1140

Traction system

 4×2

Operation control system

 Power steering

Braking system

 Oil brake

Electric system

 24V

Transmission

5-speed

Spring plate

5/4

Tire specification

175/70R14

Tire quantity

 4+1

Engine Description

Engine model

LAIDONG480

Emission standard

 Euro 1

Exhaust/output

 1617ml/28kw

Horse power

 39hp

 Up-parts Description

Max capacity(kg)

 1500

Dump box dimension (L*W*H)(mm)

 2500*1410*320

Dump box material

 Carbon Steel

Dump box thickness (mm) bottom/side

 4/3

Hydraulic cylinder

 Mid-Double Cylinder

Dump box color

 Optional

Working Condition:

 1、Altitude: 0-4500m

 2、Temperature: -350C~+450C

 3、Relative humidity: 80%

 4、Wind force: ≤8 degree
