Full Automatic Rubbish Collection Truck Hydraulic Control Pick Up Garbage Truck

1. Forland Chassis of waste collection truck: Engine 95HP, Fast Gearbox 5Forward & 1 Reverse,

2. Garbage Bin with different size options of waste collection truck: 4cbm to 10cbm

Description FEEDBACK

Full Automatic Rubbish Collection Truck / Hydraulic Control Pick Up Garbage Truck



1. Forland Chassis of waste collection truck: Engine 95HP, Fast Gearbox 5Forward & 1 Reverse,

2. Garbage Bin with different size options of waste collection truck: 4cbm to 10cbm

2. Hydraulic Control Loading & Unloading System

3.  Ways of Loading: Sider loading with Automatic Tipping

4. high-tensile steel chains:imported hydraulic oil cylinder and sealing material

5. Lifting oil cylinder:double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.

6. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck

8. Best Choice for Garbage collection and transporation Inside City.





Specification

Cab type

single sleeper, air conditioning, radio

Overall dimension(L×W×H)(mm)

6300x2300x2600mm

Axle number

2

Steering type

LHD or RHD with power steering

Max. Drive Speed (km/h)

85

Curb weight (kg)

3650

Chassis parameter

Chassis manufacturer:

Dongfeng Motor Co., Ltd

Transmission

Manual , 5 forward and 1 reverse

Brakes

air brake

Tire

6.50R16 with 1 spare tire

Engine parameter

Engine brand

Dongfeng Chaoyang

Model

CY4100

Fuel type

Diesel

Horse Power(kw)/(hp)

69kw/95hp

Displacement(ml)

2800ml

Emission Standard

Euro 2

Superstructure Parameter

garbage container volume(m3)

5m3

Compartment material

side and back 3mm ,floor 4mm carbon steel

Loading method:

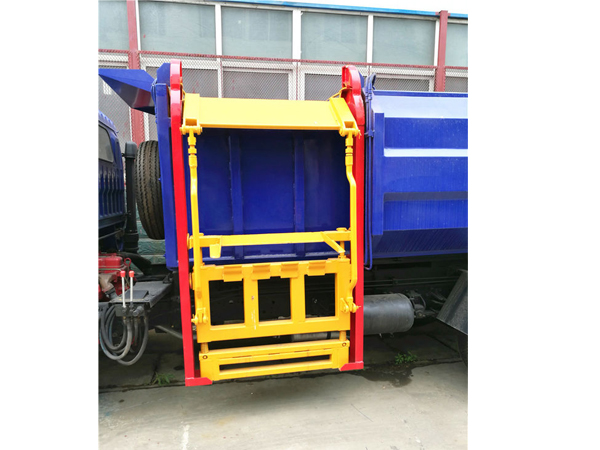

Equipped with 240L or 360L hanging barrel lifting mechanism,side loading

Dump type

Hydraulic cylinder lifting self-loading

Control method

manual hydraulic control on the body side

Main function

widely used in collecting and transporting household waste in street, community, etc

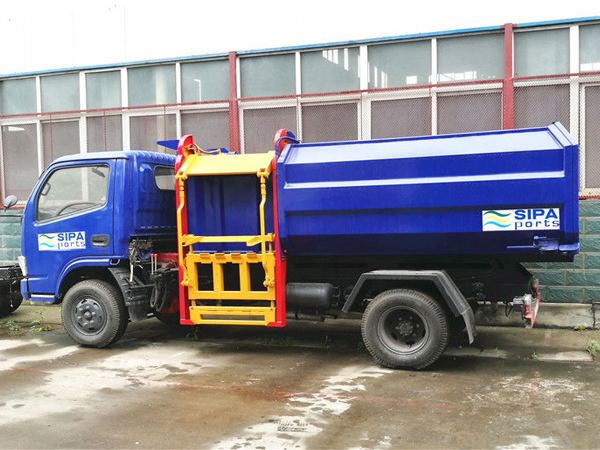

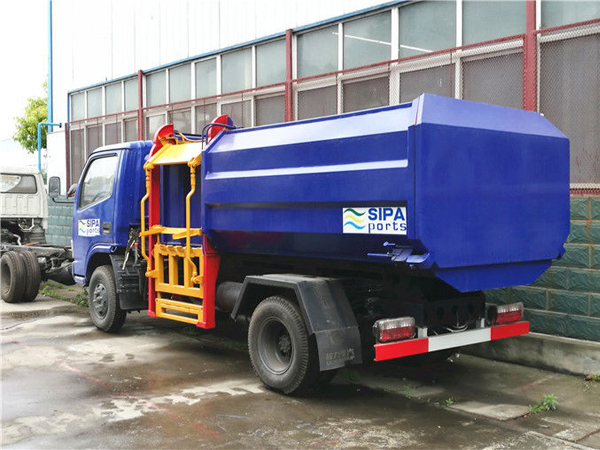

Truck Picture:
