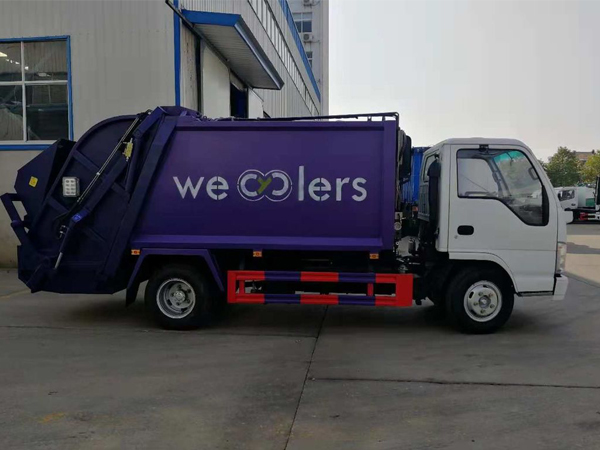

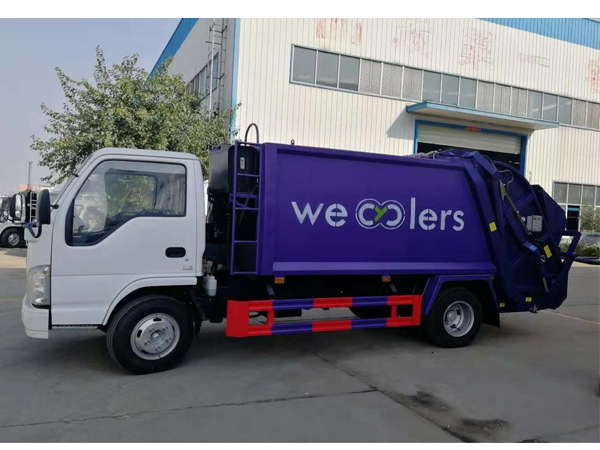

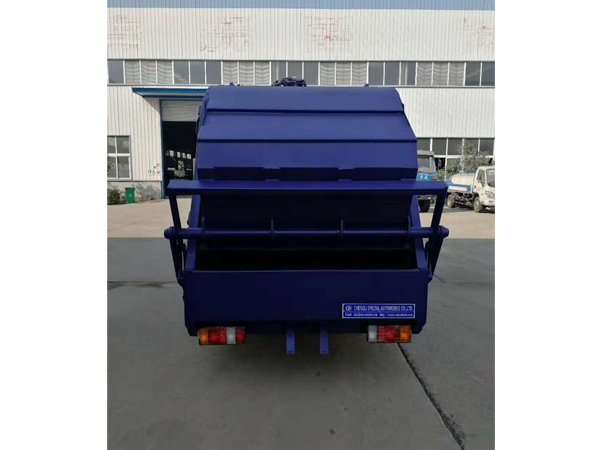

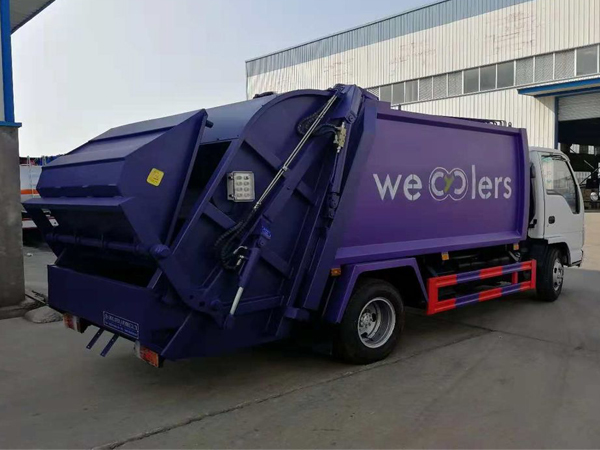

Self Compressing Garbage Compactor Truck Rear Loading 4CBM With Hydraulic Control

I. Vehicle Parameter

Model/name

isuzu 700P Electric Compactor Garbage Waste Truck 5CBM Trash Garbage Transport Truck

Gross weight(Kg)

7300

Overall size(mm)

6950×1960×2600

Payload(Kg)

2120

Tank size(mm)

/

Curb weight(Kg)

5050

Wheelbase(mm)

3360

Cab seats

2

Max speed(Km/h)

110

II. Chassis parameter

Chassis model

QL1070A5HAY

Brand name

ISUZU

Manufacturer

QingLing Motors (Group) Co., Ltd.

Drive type

4 x2

Steering Wheel

Left/right hand drive

Tyre number

6+1(spare tyre)

Tire specification

7.00-16

Fuel Type

Diesel

Emission Standard

Euro III/Euro IV/ EuroV

III. Engine parameter

Engine model

Engine manufacturer

Displacem

Power

4KH1CN5HS

Isuzu Engine Co. Ltd. (Chongqing)

2999ml

96kw

IV. Performance

Body capacity

4 m³

Hopper capacity

0.8 m³

Compression cycle time

30s

Unload garbage time

40s

Control system

Manual + Automatic

Gear box

5 forward
