Sinotruck HOWO 8CBM RHD Garbage Compactor Truck Compressed Waste Truck with Chaochai Engine

Garbage Compactor Vehicle, also called Compressed Garbage Vehicle, Compactor Garbage Truck, Compressed Garbage Truck, Rear Loader Garbage Compactor Truck, Waste Compactor Truck, Waste Compressed Truck, Refuse Compactor.

Description FEEDBACK

Sinotruck HOWO 8CBM RHD Garbage Compactor Truck Compressed Waste Truck with Chaochai Engine



Garbage Compactor Vehicle, also called Compressed Garbage Vehicle, Compactor Garbage Truck, Compressed Garbage Truck, Rear Loader Garbage Compactor Truck, Waste Compactor Truck, Waste Compressed Truck, Refuse Compactor.

The garbage compactor trucks are loaded by sanitation engineers along neighborhood streets. The trash is loaded into a hopper in the back of the truck of rear loaders. Hydraulic cylinders operate the compacting mechanism, which takes the trash out of the hopper and places it into the body of the truck.

Different types of garbage trucks that hold different amounts of waste. The truck that comes through your neighborhood can hold anywhere from 5 tons to 22 tons of waste.

The available chassis brands for Garbage Compactor Truck are ISUZU, SINOTRUK, DONGFENG, FAW, FOTON, JAC, JMC, HYUNDAI, etc

Truck Specification

Chassis model

CLW5080YSCZZ8


Cab

HOWO 2080 one and a half, with power steering.
Electronic flameout ,with air conditioner.power window.

Driving Type

4*2

Max Speed (km/h)

80

Overall dimension(mm)

7350×2250×2750

GVW( kg)

14870

Mass in working order ( kg)

8670

Wheelbase(mm)

3800

F/R track base (mm)

1880/1860

F/R overhang (mm)

1245/1665

Approach/Departure Angel

34/14

Tire

7.50R16(6+1)

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

WLY6T46


Bridge

Front axle

2.4T

Rear axle

7.2T





Enging

Model

CY4102BZLQ

Fuel Type

Diesel fuel

Type

Water-cooled, four-stroke, direct injection

Emission standard

Euro2

Exhaust(ml)

3856

Max output power/rotate speed (hp
/rpm )

120/2800

Max torque/rotate speed(N.m/rpm)

392/1400-1800


Braking system

Service Brake

Compressed air brake

Park Brake

Spring energy

Eletric system

24v

Light

1 units yellow alarm light.
with 2 units high-mount stop lamp

Upper-Body specification



Material of tank (tank with cover)

material : Q345 carbon steel,Thickness :4(mm) side
/5(mm) rear


Color

White and green.Painted in the corporation‘s
colour with logo on both front doors and both sides of the tank as specified by the client

dirty tank volume

200L

filler volume

600L

filing time(s)

8-10s

filling cycle time(s)

50-60s

Discharge type

Dumping

Time for dumping

30-40S

Hydraulic pressure

16Mpa

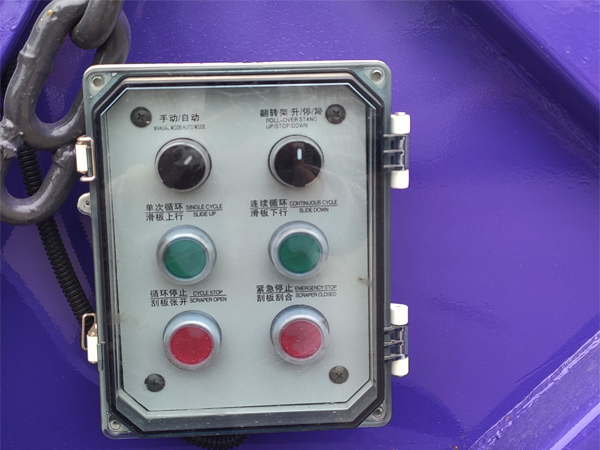

Controlling way


Manualy and electrical control


Hydraulic pump

563 model
1 set

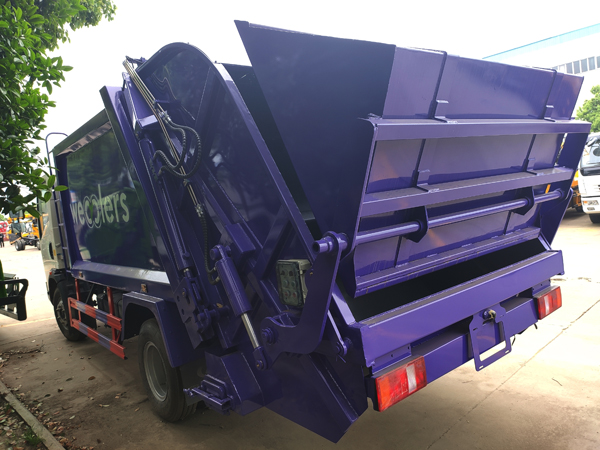

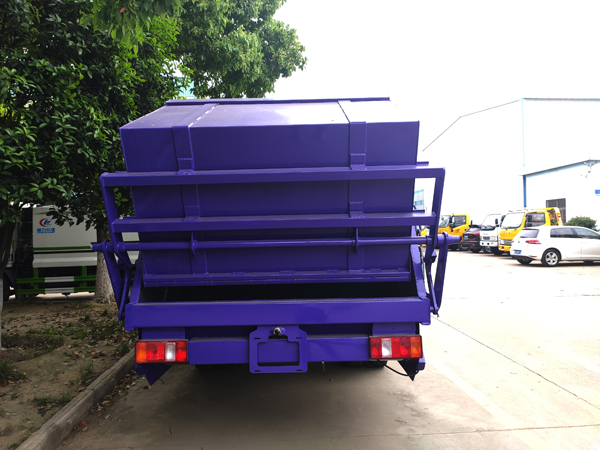

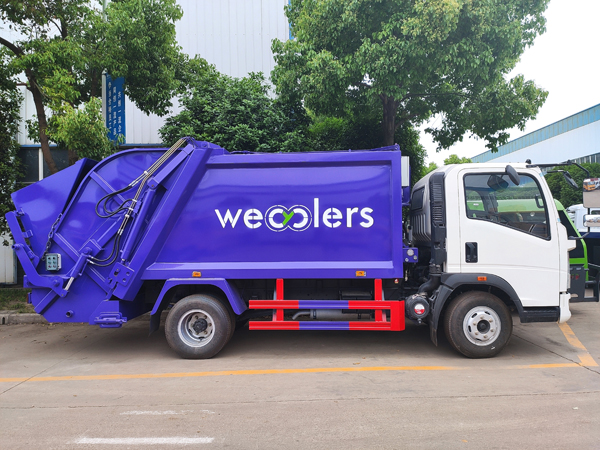

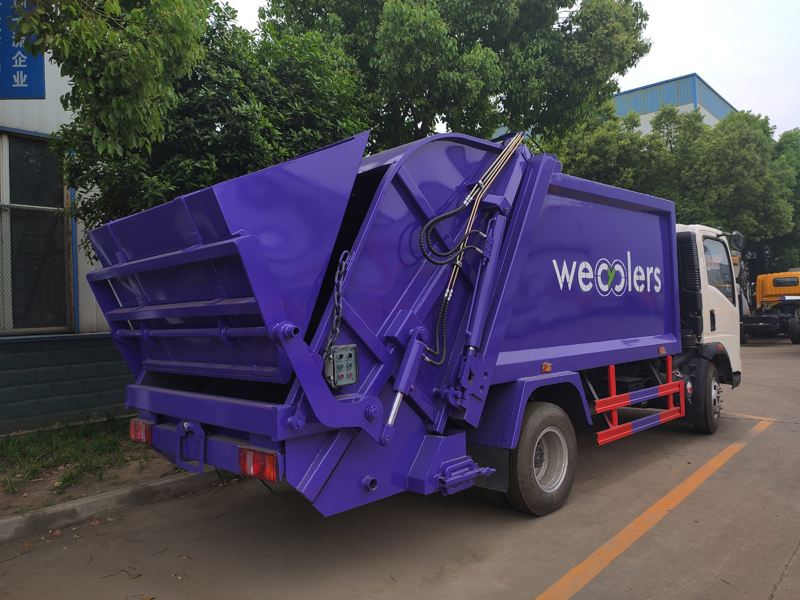

Truck picture:
