Using ultra wide mouthpiece, inside have long row of high pressure water spray bar is near the ground, have a big water impact force, can be direct make the sewage to suction port, efficient.

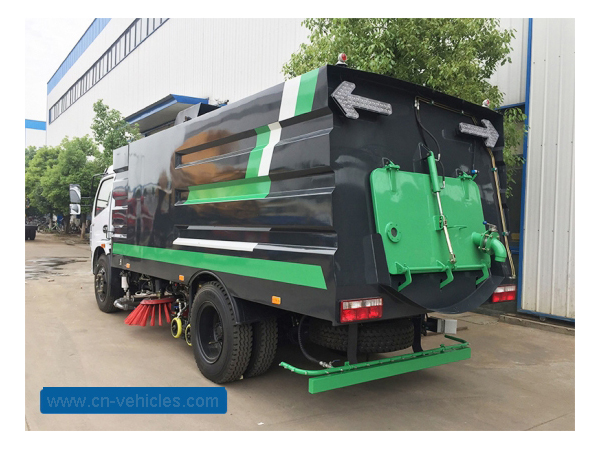

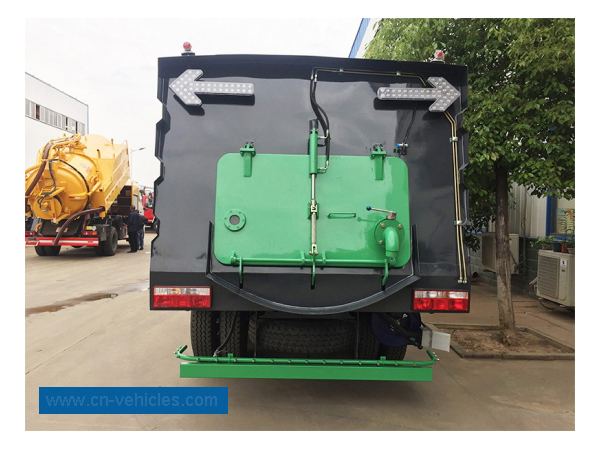

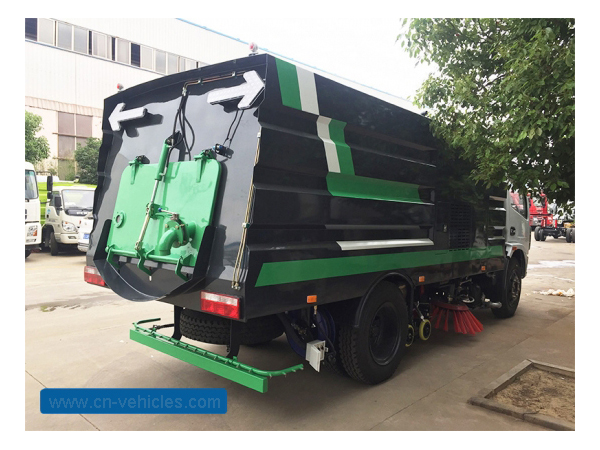

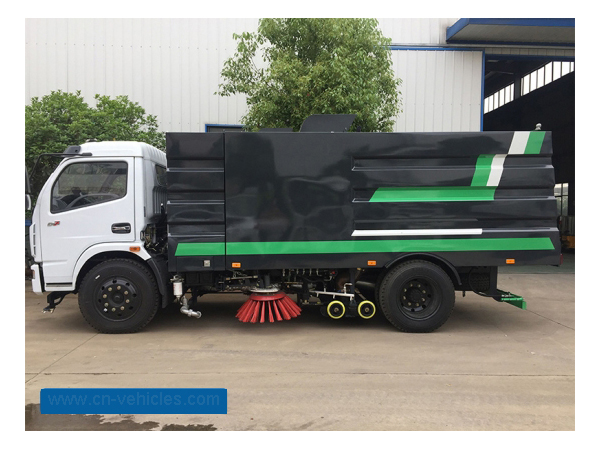

DFAC 6 Wheeler Water Cleaning Street Vacuum Airport Runway Sweeper Truck
Sweeper Truck is an efficient environmental sanitation truck equipped with functions of sweeping road and high pressure cleaning road. It is widely used in city streets, road, station, square etc. Road cleaning truck are mainly composed of chassis, box (garbage box and water tank), sweep system, auxiliary engine, fan system, cleaning system, suction system, dust system, hydraulic system and electrical control system. The garbage box and water tank are made of super thick stainless steel plate. In order to prevent the early damage of the water tank and the garbage box because of corrosion, all the parts of the tank and the garbage box are made of super thick stainless steel, which greatly prolongs the service life of the whole truck.
A large area filter net is set at the top of the box to to reduce the clogging and to ensure the fluency of suction, the top of the box is set with a flow guide slot, which improves the dust effect, makes the garbage accumulation even and improves the effective capacity. Road sweeper truck is equipped with 2 brushes, the cleaning device has the function of automatic barrier protection or automatic reset. Road cleaning truck uses a unique hand pressure pump emergency lifting system: when the auxiliary engine fails and can not start the auxiliary engine, the garbage box is raised to facilitate the maintenance of the worker. The hydraulic valve group adopts the famous leading brands: the test pressure can reach 35MPa and the flow rate is 300L/Min. The dynamic, static and fatigue life of various industrial hydraulic valves and walking mechanical hydraulic valves can be accurately tested.
Using ultra wide mouthpiece, inside have long row of high pressure water spray bar is near the ground, have a big water impact force, can be direct make the sewage to suction port, efficient.
Technical date
|
Vehicle performance and parameters |
|||
|
Item |
Parameter |
Unit |
|
|
Working Performance |
Max sweep width |
3.5 |
m |
|
Low pressure flushing width |
24 |
m |
|
|
Sweep speed |
3—20 |
km/h |
|
|
Max sweep capacity |
70000 |
m2/h |
|
|
Max inhalation of granularity |
≥110 |
mm |
|
|
Angle of unloading |
≥48 |
。 |
|
|
Volume of water tank |
5000 |
L |
|
|
Volume of garbage tank |
5000 |
L |
|
|
Driving Performance |
Max speed |
98 |
km/h |
|
Max gradeability |
30 |
% |
|
|
Braking distance |
≤10 |
m |
|
|
Min turning diameter |
≤13.6 |
m |
|
|
Fuel Performance |
Fuel consumption(Driving) |
≤12 |
L/100km |
|
Fuel consumption(Sweep working at 8km/h) |
6.5 |
L/h |
|
|
2.7 |
L/10000m2 |
||
|
Quality Parameters |
Curb weight |
7045 |
kg |
|
Rated capacity |
4255 |
kg |
|
|
GVW |
10000 |
kg |
|
|
Dimension Parameter |
Overall dimensions |
6900*2200*2700 |
mm |
|
Wheelbase |
3800 |
mm |
|
|
Track front |
1770 |
mm |
|
|
Track rear |
1586 |
mm |
|
|
Front suspension |
1250 |
mm |
|
|
Rear suspension |
1690 |
mm |
|
|
Approach angle |
24 |
。 |
|
|
Departure angle |
16 |
。 |
|
-
