Dongfeng Rhd Sweeper Width 3.8m Road Sweeper Truck for Sales
It is suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes . It is composed of water tank , dustbin , sprayers , sweeping brooms , auxiliary engine , air blower , etc . It is widely used in the municipal sanitation filed because of convenient operation and high efficiency .
Description
Get quotation

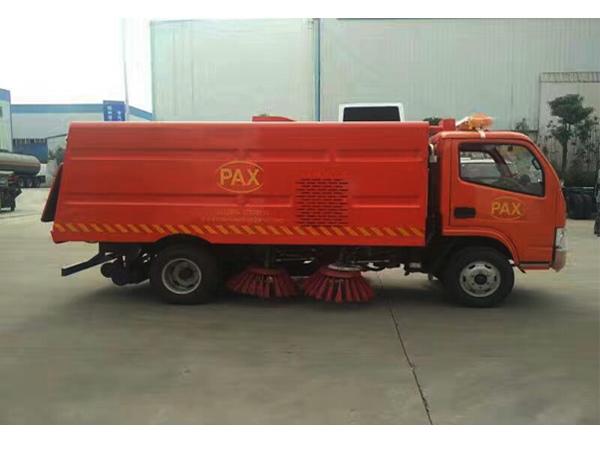

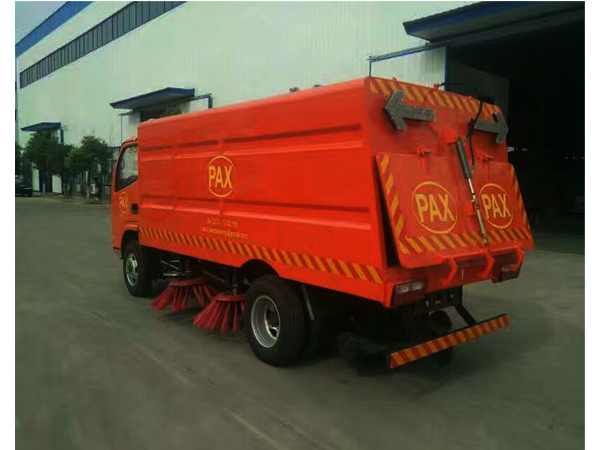

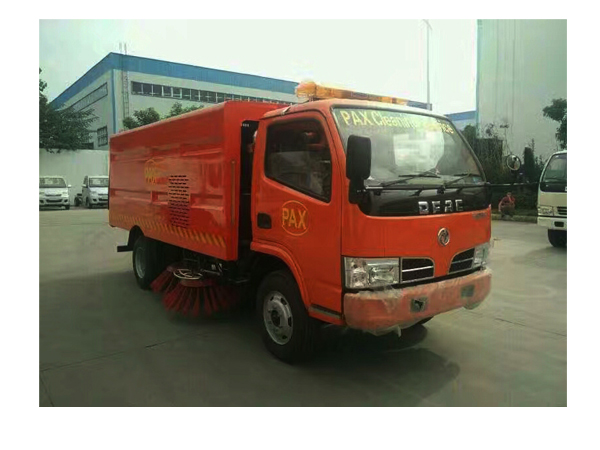

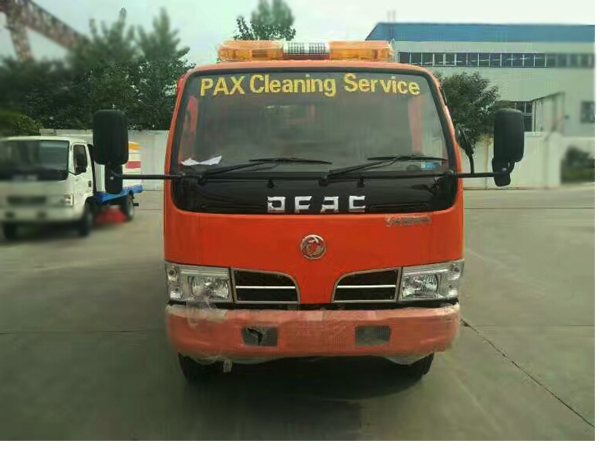

Dongfeng 4*2 RHD Sweeper width :3.8m Road Sweeper Truck for sales
Mini road sweeper truck (also called street cleaning truck , truck mounted sweeper , Road cleaning truck , street sweeping truck ) Is used for all cleaning , brushing and vacuum collecting of surface dusts , leaves , mud , soil , sand , stone chips , gravels and other small particles on the ground of city / municipal roads and areas .
It is suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes . It is composed of water tank , dustbin , sprayers , sweeping brooms , auxiliary engine , air blower , etc . It is widely used in the municipal sanitation filed because of convenient operation and high efficiency .
Technical date
| Dongfeng 4*2 Road sweeper truck | |||||||
| Item No. | Parameters | ||||||
| Overall Dimension | 7160X2230X2750mm | ||||||
| Brand | Dongfeng | ||||||
| Country of Original | China Mainland | ||||||
| Manufacturer | Weiyu , China | ||||||
| Drive model | 8x4, 2018 year, new condition , LHD or RHD | ||||||

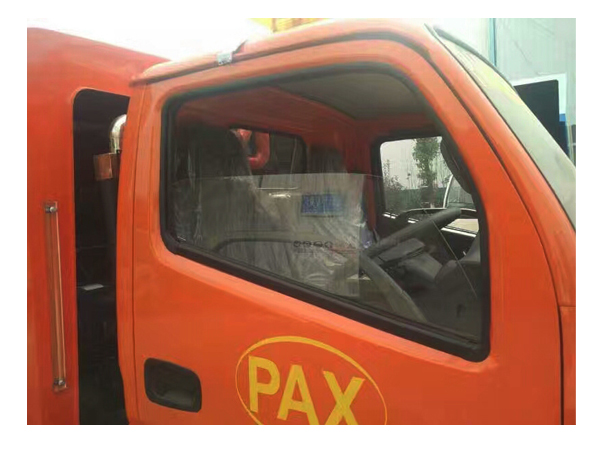

| Cabin | Dongfeng Standard cabin | ||||||
| Gross Vehicle Weight | 8250kg | ||||||
| Curb Weight | 6355kg | ||||||
| CBM | 6000 liters | ||||||
| Wheel Base | 3300 MM | ||||||
| Front/rear Overhang | 1180/2180 mm | ||||||
| Front/rear Tread | 1530/1506mm | ||||||
| Approach/Departure Angle | 24/11 degree | ||||||
| Engine | Chaochai Engine. Water cooled, Diesel Engine, Four Stroke, 4Cylinder in line. | ||||||
| Engine horsepower | 95HP Euro III | ||||||
| Max Driving Speed | 90 km/h | ||||||
| Gear Box | 5 Forward Gear, 1 Backward Gear | ||||||
| Color | As customer request | ||||||
| Tire | 10.00-20 18PR,6 pieces (with 1 spare tire.) | ||||||
| Dongfeng 4*2 Road sweeper truck | |||||||
| Road sweeper truck body | Total cbm | 6000 liters | |||||
| Material | Q235A high tension steel for water tanker, Stainless steel for dust tanker | ||||||
| Working width(mm) | 3200 | ||||||
| Secondary engine | Yucai 56HP | ||||||
| Oil pump | Made in China | ||||||
| Electronic switch | Siemens Made in Germany | ||||||
| Control system | PLC | ||||||
| Hydraulic motor | Sanyo Made in Janpen | ||||||
| Extra cost (Optional) | |||||||
| Part | Cost USD | ||||||
| Stainless steel water tanker | 476 | ||||||
| Front and Rear spray | 476 | ||||||
| Maybe will be damage within 1 year | |||||||
| Part | Cost USD | ||||||
| Bush(1pcs) | 0.63 | ||||||
| Vacuum tube 85cm | 87 | ||||||
| Front cover | 16 | ||||||
| Rear cover | 8 | ||||||
| Suction wheel rubber | 8 | ||||||
| Rear door seal(Per meter) | 5 | ||||||
| Fan seal(Per meter) | 7 | ||||||
