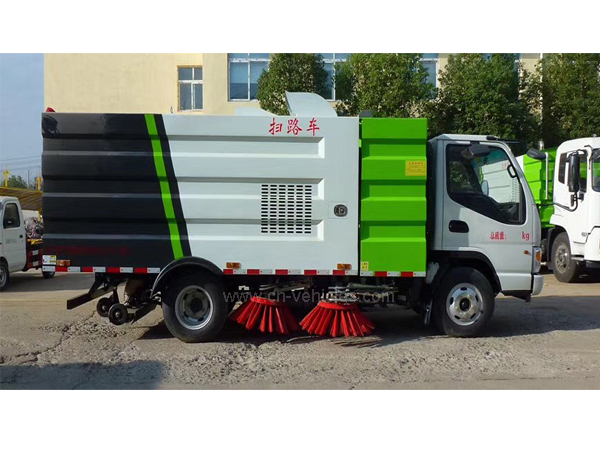

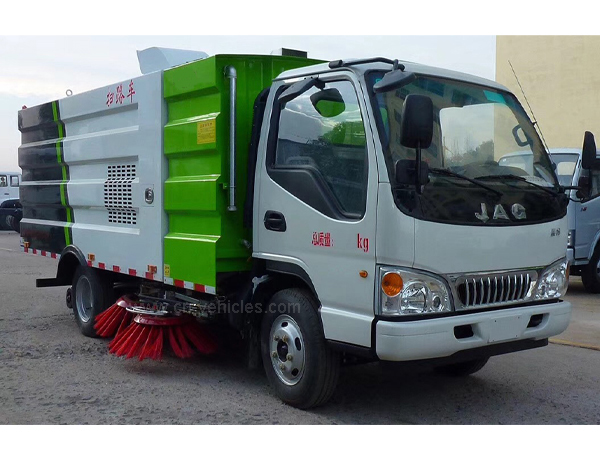

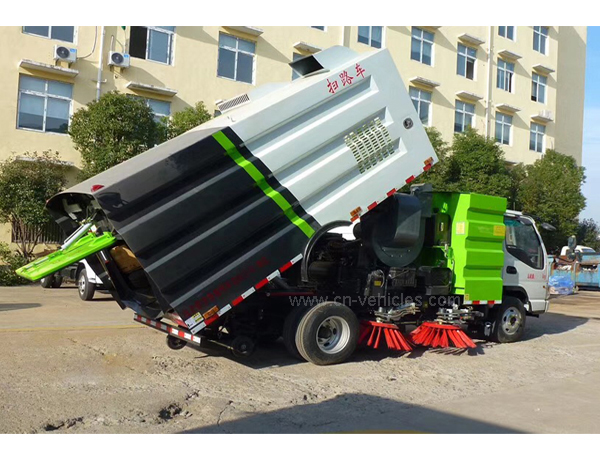

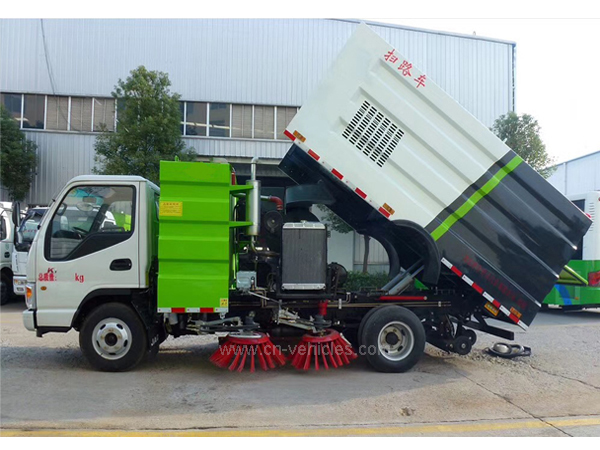

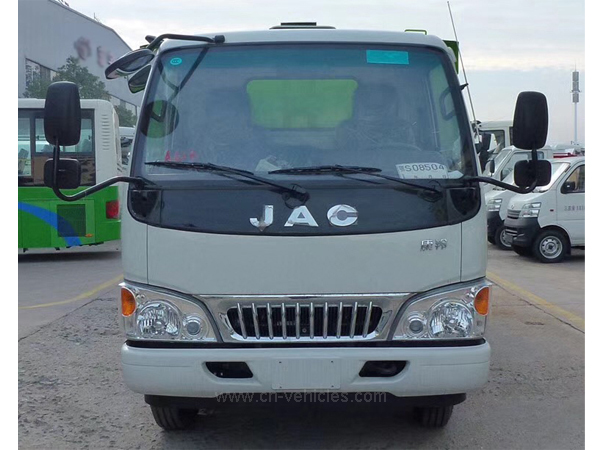

JAC Road Sweeping And Washing Truck

JAC road sweeper truck with washer

General

Chassis Brand

JAC

Overall Dimension

8790 * 2475 *305 0 mm

GVW / Kerb Weight

16,000kg / 11,550kg

Cab

Cab Capacity

3, 2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

FAW

Power

182 HP (134 KW)

Displacement

6600 ml

Emission Standard

Euro 4 or 5

Chassis

Drive Type

4X2, (left hand drive)

Transmission

FAST 6 speed levers with 1 reverse

Wheelbase/No. of axle

5300 mm / 2

Tire Specification

10.00R20

Tire Number

6 tires and 1 spare tire

Max Speed

100 km/h

Paint

Metallic paint

Superstructure

Body capacity

7 cbm dust tank & 9 cbm water tank

Tanker material

Stainless steel

Sweeping capacity

42,000 cbm/h

Sweeping speed

3-15 km/h

Max. sweeping width

3200 mm

Suction plate

Whole set for road cleaning

Auxiliary engine

ISUZU engine, 77HP (57kw), super powerful
JMC engine, 77HP (57kw), super powerful

All standard accessories: Warning lights, music alarm, basic tool kit, English manual...

Optional

** Back alarm and Camera can be equipped.

** Italy Brevini motor can be optional.

** Air blower can be of stainless steel
