Chengli Factory Export Dongfeng DFAC Truck Mountd 4 Ton Straight Crane for Army with Lorry
Truck crane ,also called boom truck crane,mobile truck crane , truck mounted crane , hydraulic folding truck crane,telescopic straight boom crane,truck with crane , crane lorry,hydraulic arm crane for trucks,pickup truck mounted crane,light truck with crane,folding arm hydraulic lift platform,hydraulic crane telescopic boom,mobile crane price ,self loader truck with boom crane,new forland lorry truck mounted crane,telescopic boom truck mounted crane,flatbed knuckle boom truck crane,6 wheelers truck with crane boom truck cranes sale etc
Description FEEDBACK

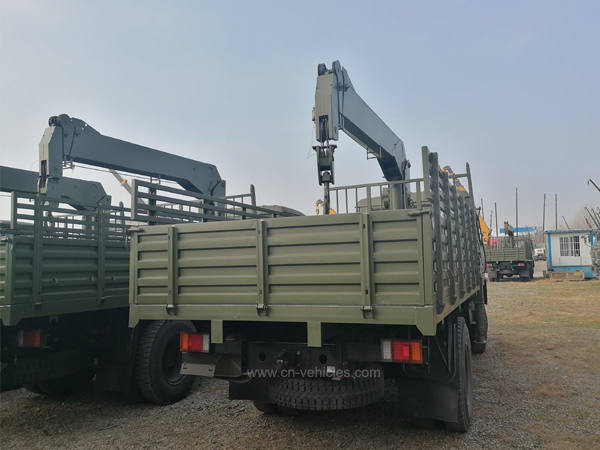

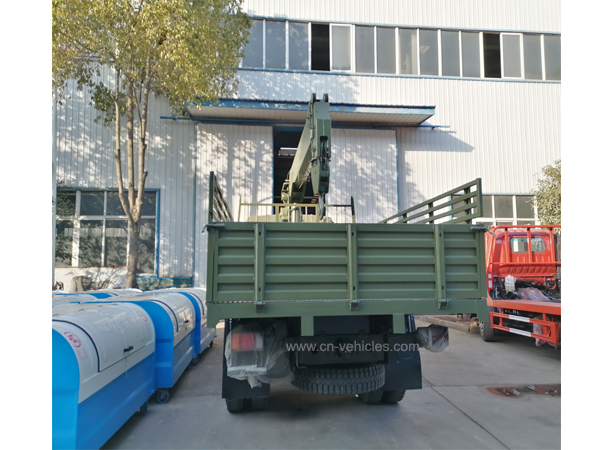

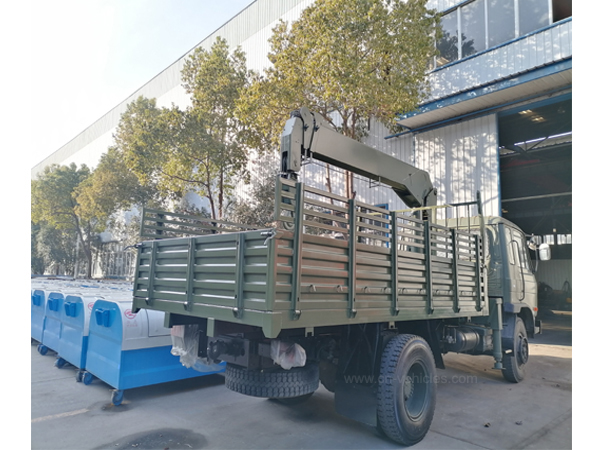

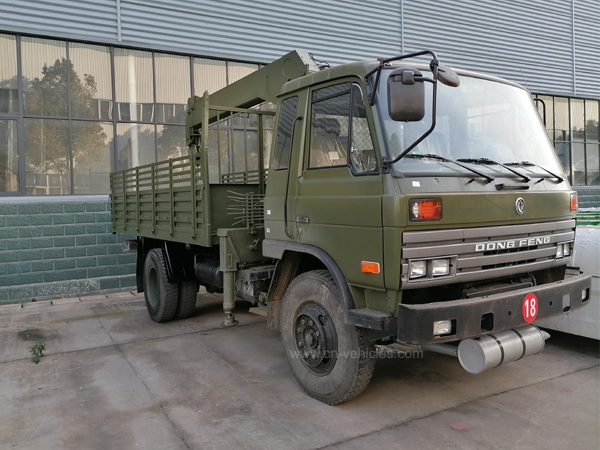

Chengli factory export Dongfeng DFAC Truck Mountd 4 Ton Straight Crane For Army With Lorry


1 telescopic boom or knucle boom all available
2 crane brand :CLW,ZOOMLION, SMJ, SANY or others
3 Crane capacity : 2 ton ,3.2 ton ,4 ton ,5 ton ,6.3 ton ,7 ton ,8 ton ,10 ton ,12 ton ,14 ton ,16 ton ,20 ton ,25 ton ,30 ton ,40 ton ,60 ton ,70 ton ,80 ton ,100 ton ,120 ton ,150 ton etc

Truck crane ,also called boom truck crane,mobile truck crane , truck mounted crane , hydraulic folding truck crane,telescopic straight boom crane,truck with crane , crane lorry,hydraulic arm crane for trucks,pickup truck mounted crane,light truck with crane,folding arm hydraulic lift platform,hydraulic crane telescopic boom,mobile crane price ,self loader truck with boom crane,new forland lorry truck mounted crane,telescopic boom truck mounted crane,flatbed knuckle boom truck crane,6 wheelers truck with crane boom truck cranes sale etc


 A crane mounted on a truck carrier provides the mobility for this type of crane. This crane has
two parts: the carrier, often referred to as the Lower, and the lifting component which includes the
boom, referred to as the Upper. These are mated together through a turntable, allowing the upper
 to swing from side to side. These modern hydraulic truck cranes are usually single-engine machines, with the same engine powering the undercarriage and the crane. The upper is
usually powered via hydraulics run through the turntable from the pump mounted on the lower. In
older model designs of hydraulic truck cranes, there were two engines. One in the lower pulled the
 crane down the road and ran a hydraulic pump for the outriggers and jacks. The one in the upper ran
the upper through a hydraulic pump of its own. Many older operators favor the two-engine system
due to leaking seals in the turntable of aging newer design cranes.

Technical date :

                                   TRUCK MOUNTED CRANE

#

Descriptions

Specifications and types

General







Truck Brand

Chengliwei (our brand)

Chassis Brand

Dongfeng

Approx. Dimension

7100*2300*3150 mm

GVW./Kerb Wt.

8275/ 4780kg

Cab



Cab Capacity

3 persons‘ seat

Air Conditioner

Air Conditioner is optional

Chassis





















Drive Type

4X2,LHD or RHD

Fuel Type

Diesel

Engine Make & Model

Chaochai engine

Power

120hp

Emission Standard

Euro II or EURO III or EURO IV

Brake

Air Brake

Wheelbase/No.of axle

3800  mm / 2

Tyre Specfication

7.50-16

Tyre Number

tyres and 1 spare tyre

Max Speed

80 km/h

Paint

Automative metallic paint

Cargo box

Cargo body dimension

4350*2050*550 mm

Crane









Max Lifting Capacity

1000kg/2000kg /3200 kg /4000kg

Installation Space

550-850mm

Structure& Function

Telescopic/Articulated boom crane loading weight:2T,3.2T,4T,5T,

6.3T,8T,10T,12T,14T,16T,20T 25T or others

Truck Cargo length: 3m-13m.

Crane Brand optional: ZOOMLION, SMJ, SANY,UNIC or others.

Crane Installation Site: Rear or Middle part
