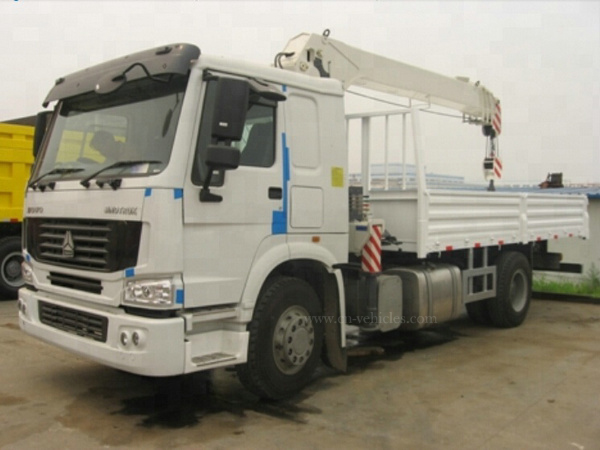

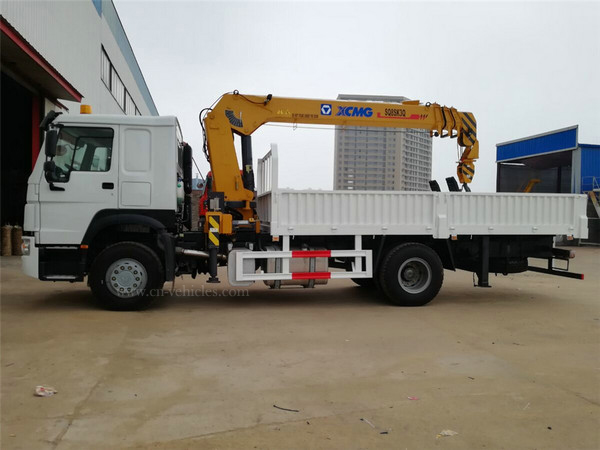

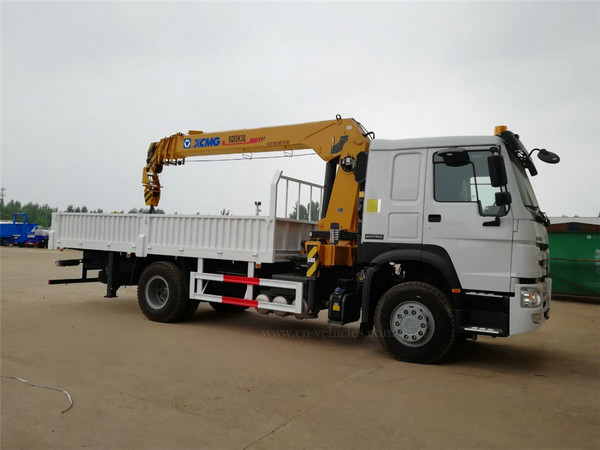

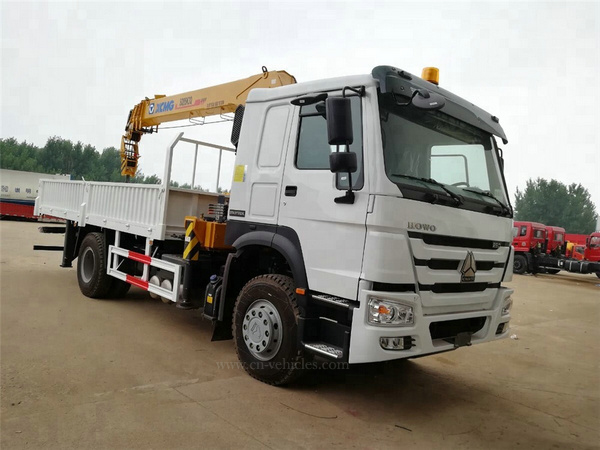

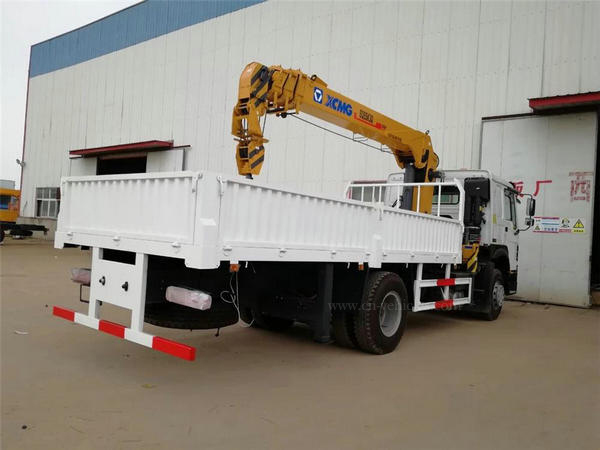

chinese factory sale new right hand drive sinotruk howo boom crane truck 8ton

The boom truck is also called boom arm crane truck, hydraulic crane truck, boom truck crane, dump crane truck, etc. The boom truck is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc

Description FEEDBACK

chinese factory sale new right hand drive sinotruk howo boom crane truck 8ton

The boom truck is also called boom arm crane truck, hydraulic crane truck, boom truck crane, dump crane truck, etc. The boom truck is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc

As a professional boom truck manufacturer in China, the crane capacity is from 2 ton to 160 ton. The drive type of chengli crane truck for sale are 4x2, 6x2, 6x4,8x4,etc.  The truck mounted crane for sale are telescopic boom crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane can be crane, chengli crane, sany crane, etc.


Technical parameters of sinotruk howo boom truck with crane

Items

Descriptions

Specifications and Types

General

Truck Name

Truck mounted crane

Drive Type

4*2

Gross Vehicle Weight(kg)

16000

Curb Weight (kg)

9410

Overall Dimensions L*W*H(mm)

8995×2495×3600

Engine

Engine Model

WD615.62

Engine Brand

SINOTRUK

Fuel Type

Diesel

Power

196kw/266HP

Emission Standard

Euro II

Displacement(ml)

9726

Engine Type

6 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling

Chassis

Chassis Brand

SINOTRUK

Cab

Flat roof, single and half row cab

Tire No.

6+1

Tire Specification

12.00R20 Tubeless tire

Wheelbase (mm)

5000

Axle No.

2

Gear Box

10 speed forward with 1 reverse, manual

Steering Wheel

Left Hand Drive with power-assisted

Brake

Air brake

Crane and outrigger

Crane

Chengli brand, Telescopic boom crane

Max lifting capacity(tons)

8

Max lifting height(m)

15.6

Max working radius(m)

13.5

Boom No.

4 section

Outrigger No.

2 pcs front outrigger

Rotation angle

360 degree full rotation

Box

Box dimensions(mm)

5400x2290x550
