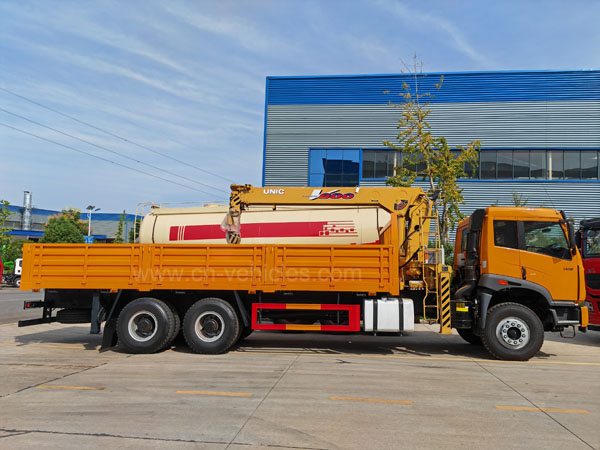

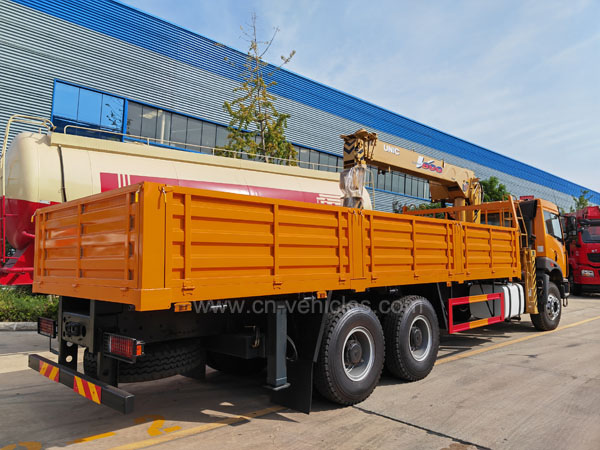

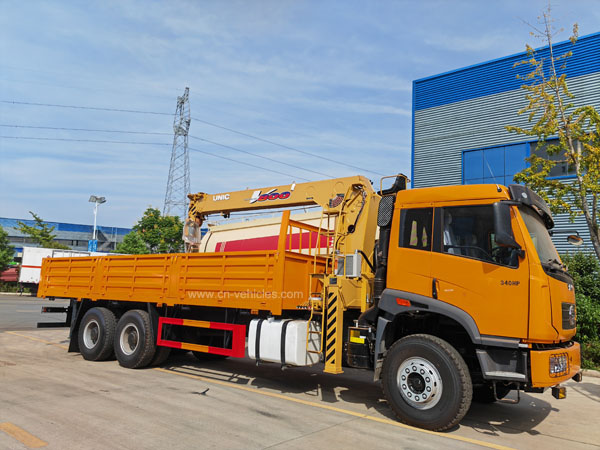

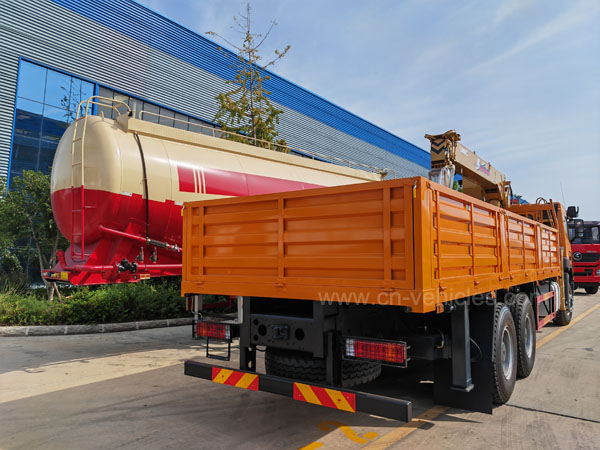

High Operating Efficiency UNIC 16 Ton Stiff Boom Crane with FAW Cargo UNIC Truck Crane

Crane truck is also called crane with truck , Truck mounted crane , crane mounted cargo truck , lorry mounted crane , truck mounted boo lift , truck with loading crane , boom crane , boom crane truck , articulated crane truck , Is used to lift the cargo , load , transport and unload heavy stuff .

There are telescopic boom cranes and knuckle boom cranes , covering a wide range of capacities as follow :

Telescopic boom crane :2 ton , 3.2 ton , 4 ton , 5 ton ,6.3 ton , 8 ton ,10 ton ,12 ton ,14 ton , 16 ton , 25 ton

Knuckle boom crane : 1 ton , 2 ton , 3.2 ton , 4 ton , 5 ton ,6.3 ton , 8 ton ,10 ton ,12 ton ,14 ton , 16 ton , 25 ton

There are telescopic boom cranes and knuckle boom cranes , covering a wide range of capacities as follow :

Telescopic boom crane :2 ton , 3.2 ton , 4 ton , 5 ton ,6.3 ton , 8 ton ,10 ton ,12 ton ,14 ton , 16 ton , 25 ton

Knuckle boom crane : 1 ton , 2 ton , 3.2 ton , 4 ton , 5 ton ,6.3 ton , 8 ton ,10 ton ,12 ton ,14 ton , 16 ton , 25 ton

Description Get quotation

High Operating Efficiency UNIC 16 Ton Stiff Boom Crane with FAW Cargo UNIC Truck Crane

There are telescopic boom cranes and knuckle boom cranes , covering a wide range of capacities as follow :

Telescopic boom crane :2 ton , 3.2 ton , 4 ton , 5 ton ,6.3 ton , 8 ton ,10 ton ,12 ton ,14 ton , 16 ton , 25 ton

Knuckle boom crane : 1 ton , 2 ton , 3.2 ton , 4 ton , 5 ton ,6.3 ton , 8 ton ,10 ton ,12 ton ,14 ton , 16 ton , 25 ton

There are telescopic boom cranes and knuckle boom cranes , covering a wide range of capacities as follow :

Telescopic boom crane :2 ton , 3.2 ton , 4 ton , 5 ton ,6.3 ton , 8 ton ,10 ton ,12 ton ,14 ton , 16 ton , 25 ton

Knuckle boom crane : 1 ton , 2 ton , 3.2 ton , 4 ton , 5 ton ,6.3 ton , 8 ton ,10 ton ,12 ton ,14 ton , 16 ton , 25 ton

Products Technical Specification
Product Name		FAW J6M 6*4 Truck with crane
Chassis Model		CA5250
Fuel type		Diesel
Emission Standard		Euro 4
Cabin		J6M Half row With A/C
Whole Vehicle main dimensions (mm)	Overall dimensions (L×W×H)	1197524953700
	Cargo bady dimensions	80002300800
	Wheel base	5800+1350
	Front overhang	1400
	Rear overhang	3425
	Min. ground clearance	540
Weight data (kg)	G.V.W	25000
	Curb weight (chassis)	15250
	Max payload	20000-25000
Whole vehicle main performance	Max. speed (km/h)	98
Whole vehicle main performance	Max. slope of climb (%)	30
Engine	Model	BF6M1013-28E4
	Maximum power	209kw / 280hp
	Number of cylinders	6
	Displacement (L)	7.146
	Engine Manufacturer	CHINA FAW.
Gear box	Model	CA10
Gear box	Number of gears	10 forward gears & 1 reverse
Rear axle	Rear Load capacity (ton)	11 Optional 13t
Suspension	Leaf spring	`11/11
Steering Wheel	left/right hand drive	LHD
Brake system	Service brake	Air braking with ABS
Electric device	Rated voltage	24V
Tyres & Quantity		11.00R20 & 10+1

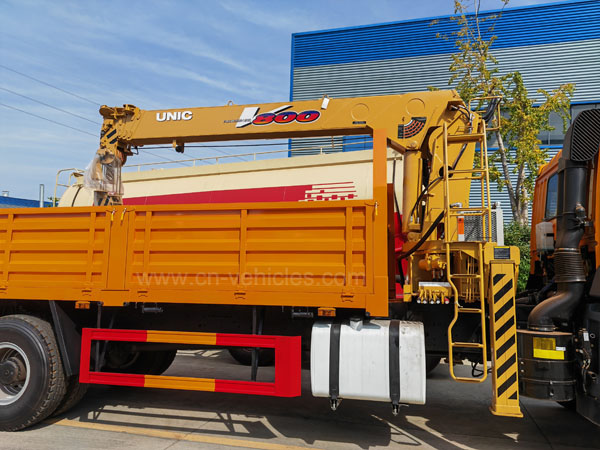

Crane Description
Brand		UNIC
Type		Straight Crane
Model		V800
Max Lifting Capacity (kg)		16000
Maximum lift height (m)		12
Max Lifting Moment (t.m)		25
Max Oil Flow of Hydraulic System (L/min)		63
Max Pressure of Hydraulic System (MPa)		26
Oil Tank Capacity (L)		160
Rotation Angle (°)		All Rotation
Crane Weight (kg)		3800
Installation Space (mm)		1150
Lifting capability diagram
Working radius (m)		2.5 / 4.5 / 7 / 9 / 12
Lifting capacity (kg)		10000 / 5500 / 3200 / 2300 / 1500
