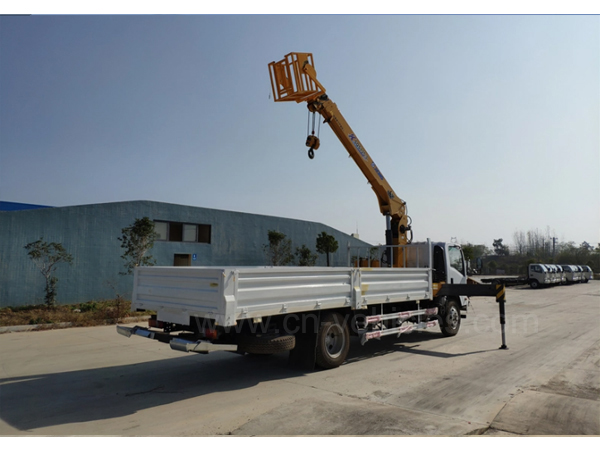

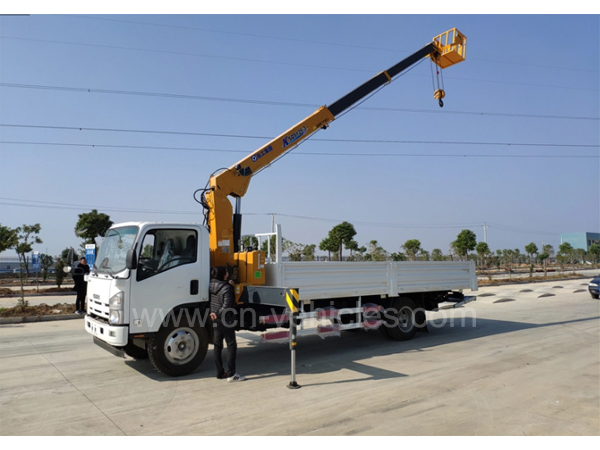

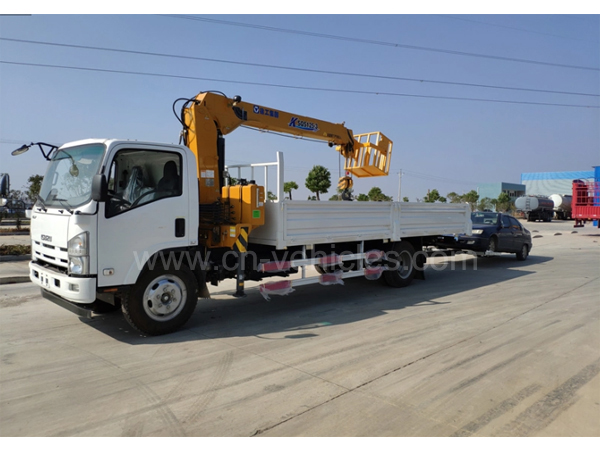

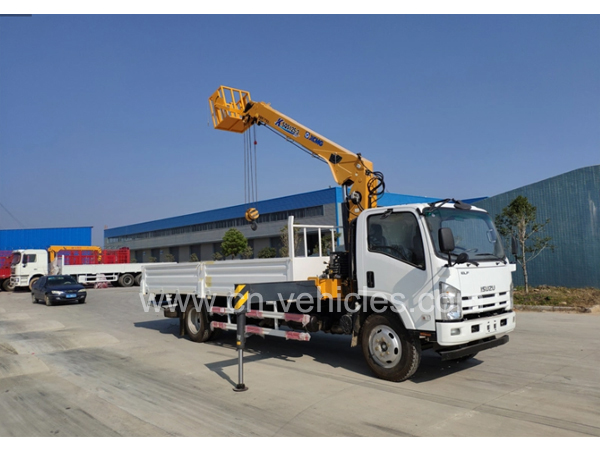

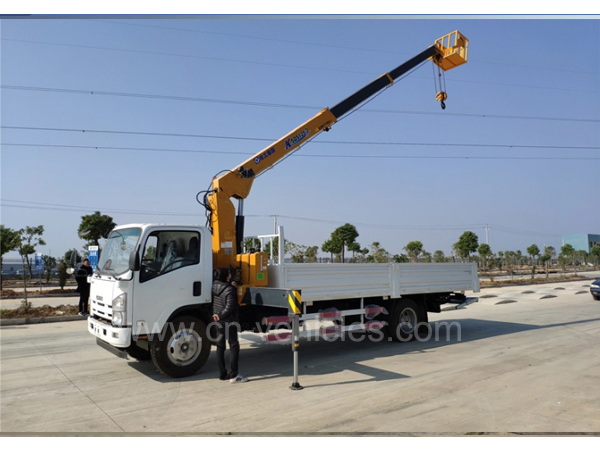

Japan Isuzu Crane Truck 600p 700p 4tons 5tons 6.3tons 7tons 8tons Crane Truck Mounted Crane

Vehicle Parameters

Vehicle Model:

QL1100A8LAY

Overall Dimension(L x W x H)

7370x2420x3360mm

Cargo body (L x W x H)

4400 x1970x600mm
Bottom: 3mm    Side:1.5mm

Curb Weight:

6485Kg

GVW:

10055Kg

Wheelbase:

4175mm

Drive Type:

4x2

Engine

Engine Model:

4HK1-TCG51

Cylinder NO.

4

Engine Power:

141(kw)

Delivery Capacity:

5193(ml)

Horsepower:

191PS

Max torque:

510N.M

Emission standard:

Euro 5

Transmission

Transmission:

ISUZU MLD-6Q

Forward Gear:

6 Speed Gear

Backward Gear:

1 Speed Gear

Max speed

110km/h

Seats

Front Seat:

3

Cabin

ISUZU 700P, tilting cabin

Chassis

Front Wheel Distance:

1680mm

Rear Wheel Distance:

1650mm

Number of spring

8/10+6

Approach/departure angle

21/13

Front/rear overhang

1110/2055mm

Axle Loads:

Double Axles

Rear Axle Ratio:

4.1

Tires:

7

Tire Model:

 8.25-20 16PR

Configuration

1

Power Steering

2

AC

3

Retro-reflective Marking

4

ABS

5

Free Maintenance Battery

Specification for crane

ITEM

UNITS

Crane model

SQ5SK2Q, Straight

Max lifting capacity

KG

5000

Max lifting capacity

T.M

12.5

Recommend power

KW

18

Max oil flow

L/MIN

32

Max pressure

MPA

20

Oil Tank Capacity

L

90

Crane weight

KG

2074

Installation space

MM

900

Rotation angle

DEGREE

360

Extension length

MM

8500

Lifting height

MM

10500

Max elevation

DEGREE

75
