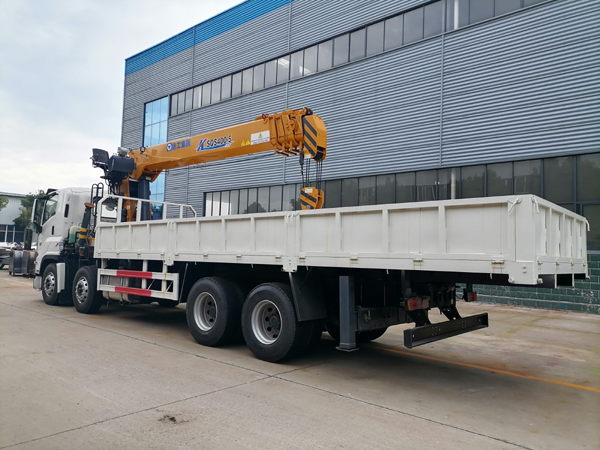

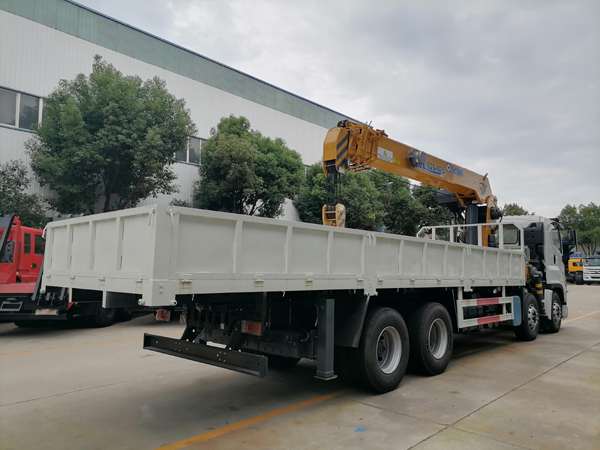

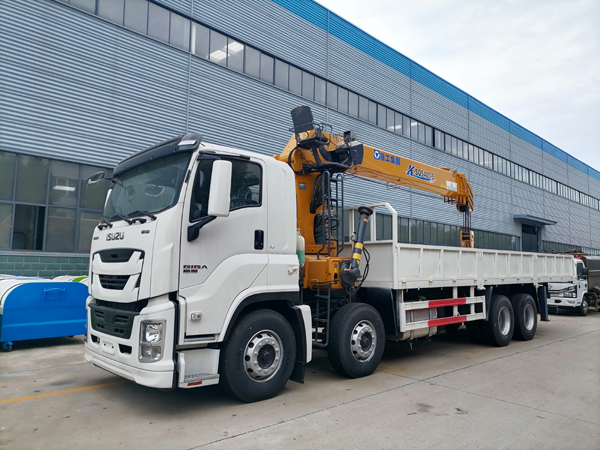

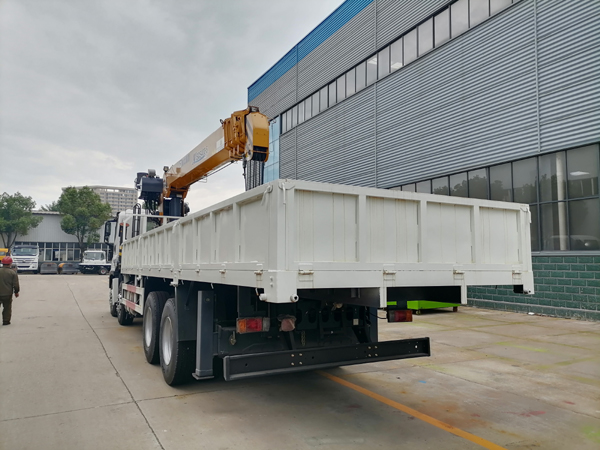

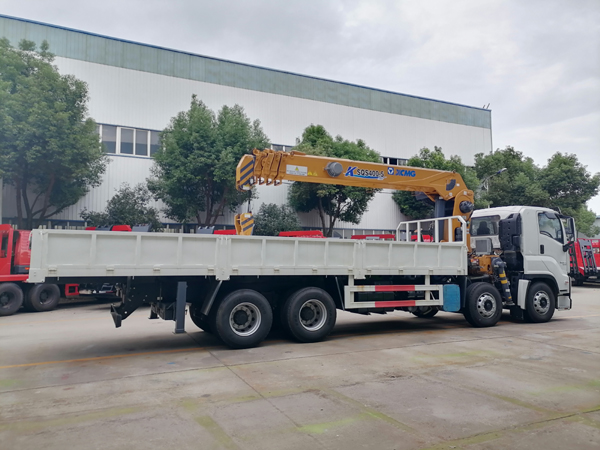

ISUZU GIGA 16 Wheels 16 Ton Hydraulic Mobile Straight Boom Arm Crane Truck With High Position Seat For Heavy Duty Equipments Delivery
1. Purpose: It‘s used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
2. Main parts: Crane. (Different lifting capacities match different chassis.)
3. Advantage: One truck combines the functions of crane and dump truck.
Description FEEDBACK
ISUZU GIGA 16 Wheels 16Ton Hydraulic Mobile Straight Boom Arm Crane Truck With High Position Seat For Heavy Duty Equipments Delivery

Truck crane ,also called boom truck crane,mobile truck crane , truck mounted crane , hydraulic folding truck crane,telescopic straight boom crane,truck with crane , crane lorry,hydraulic arm crane for trucks,pickup truck mounted crane,light truck with crane,folding arm hydraulic lift platform,hydraulic crane telescopic boom,mobile crane price ,self loader truck with boom crane,new forland lorry truck mounted crane,telescopic boom truck mounted crane,flatbed knuckle boom truck crane,6 wheelers truck with crane boom truck cranes sale etc


 A crane mounted on a truck carrier provides the mobility for this type of crane. This crane has
two parts: the carrier, often referred to as the Lower, and the lifting component which includes the
boom, referred to as the Upper. These are mated together through a turntable, allowing the upper
 to swing from side to side. These modern hydraulic truck cranes are usually single-engine machines, with the same engine powering the undercarriage and the crane. The upper is
usually powered via hydraulics run through the turntable from the pump mounted on the lower. In
older model designs of hydraulic truck cranes, there were two engines. One in the lower pulled the
 crane down the road and ran a hydraulic pump for the outriggers and jacks. The one in the upper ran
the upper through a hydraulic pump of its own. Many older operators favor the two-engine system
due to leaking seals in the turntable of aging newer design cranes.


ISUZU GIGA 16 Wheels 16Ton Hydraulic Mobile Straight Boom Arm Crane Truck With High Position Seat For Heavy Duty Equipments Delivery
 Product Description

1. Purpose: It‘s used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.
2. Main parts: Crane. (Different lifting capacities match different chassis.)
3. Advantage: One truck combines the functions of crane and dump truck.
General Technical Parameters
Overall Dimension 11980×2500×3980 (mm)
Gross Vehicle Weight 24900(Kg)
Curb Weight 15800(Kg)
Chassis Specification
Chassis Brand ISUZU
Drive model 8*4
Cabin Double, Left Hand Driving, with air conditional
Number of Passengers 3
Engine Model 4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR
Power
231KW/315HP
Emission standard EURO 4
Displacement 8300(ml)
Fuel type Diesel
Gearbox 9Forwards & 1Reverse
Brake System Air break
Wheel Base 1850+4600+1400 mm
Front/Rear Axle Loading 8000/11500(Kg)
Approach/Departure Angle 23/12(°)
Overhang 1250/3545(mm)
Tire 11.00R20
Max Driving Speed 90(km/h)
Upperstructure Specification
Cargo Body Dimension 8600×2300×550(mm)
Material Q235 carbon steel
Cargo Thickness Side 1.5mm, Bottom 2.5mm
Working System Boom Type Straight 4-Arm telescopic boom
Crane Crane Brand XCMG or SANY or CLW
Range of Sprayer 30m
Max Lifting Moment 25(T.M)
Max Lifting Capacity 16000(kg)
Max lifting height 12(m)
Rotation angle 360(°)
Installation space 1150(mm)
Recommented power 30(kw)
Maximum working pressure 26(Mpa)
Max Flow 63(l/min)
Crane weight 3800(kg)
Oil tank capacity 160(L)
Leg Leg type H type
Leg Span 2.28-5.9(m)
Hydraulic system Pressure 18(M pa)
Capacity 70(l)
Other Configuration Control system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc.
Options Caution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc.
