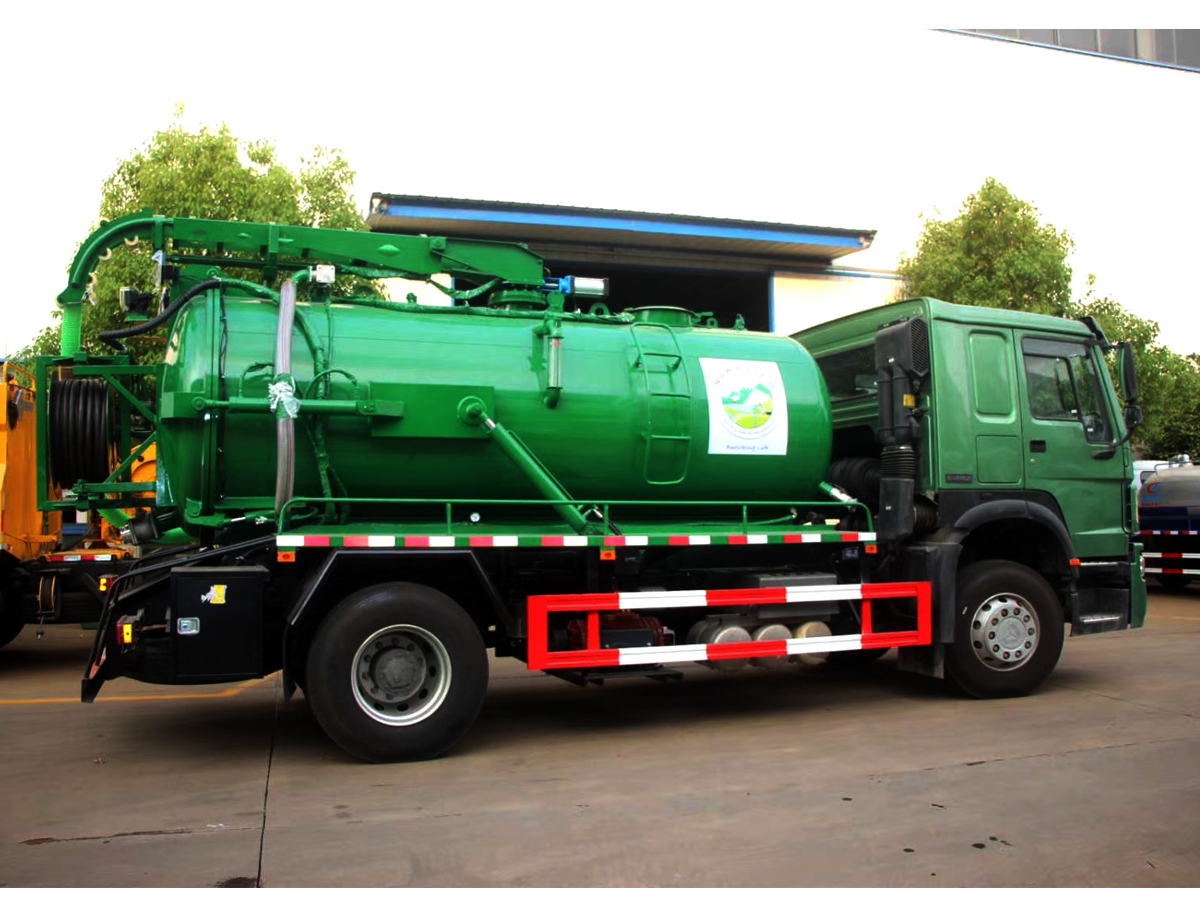

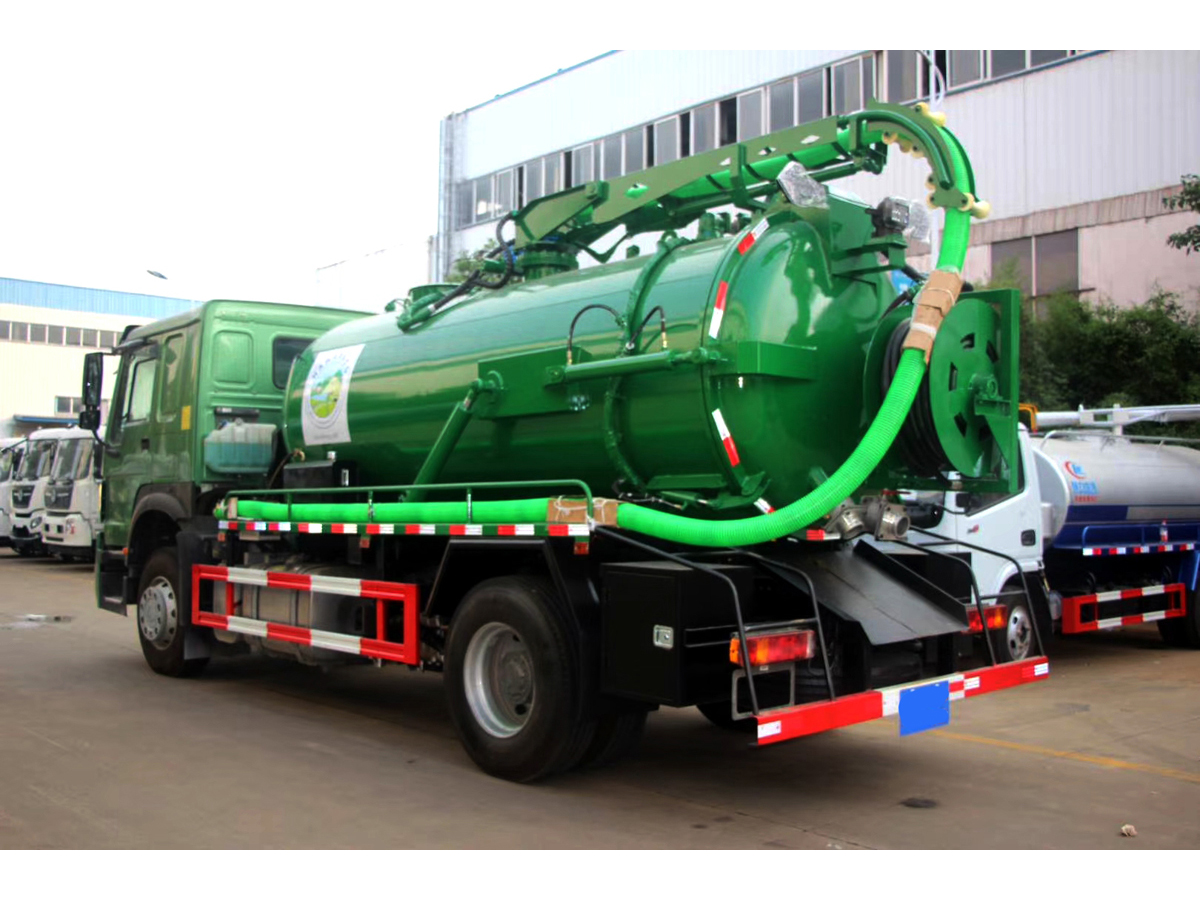

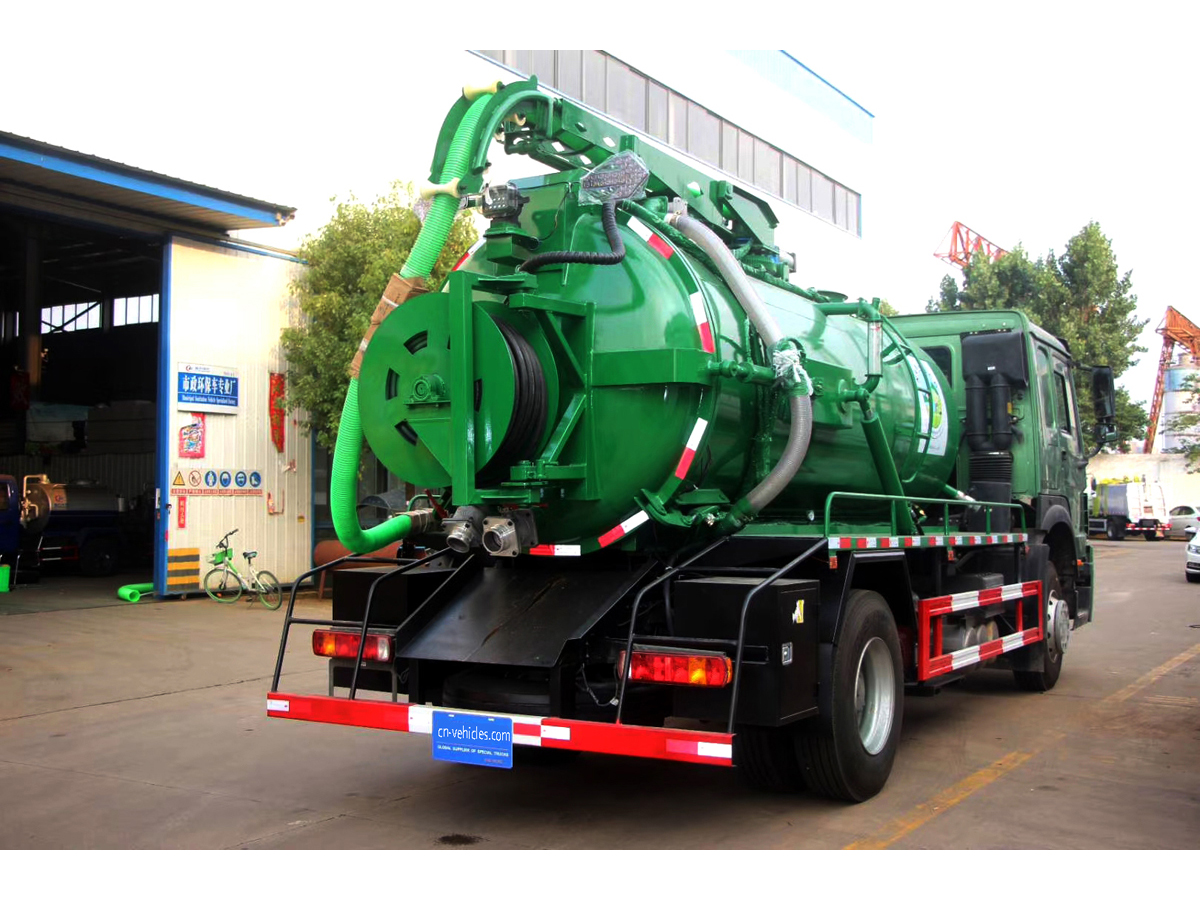

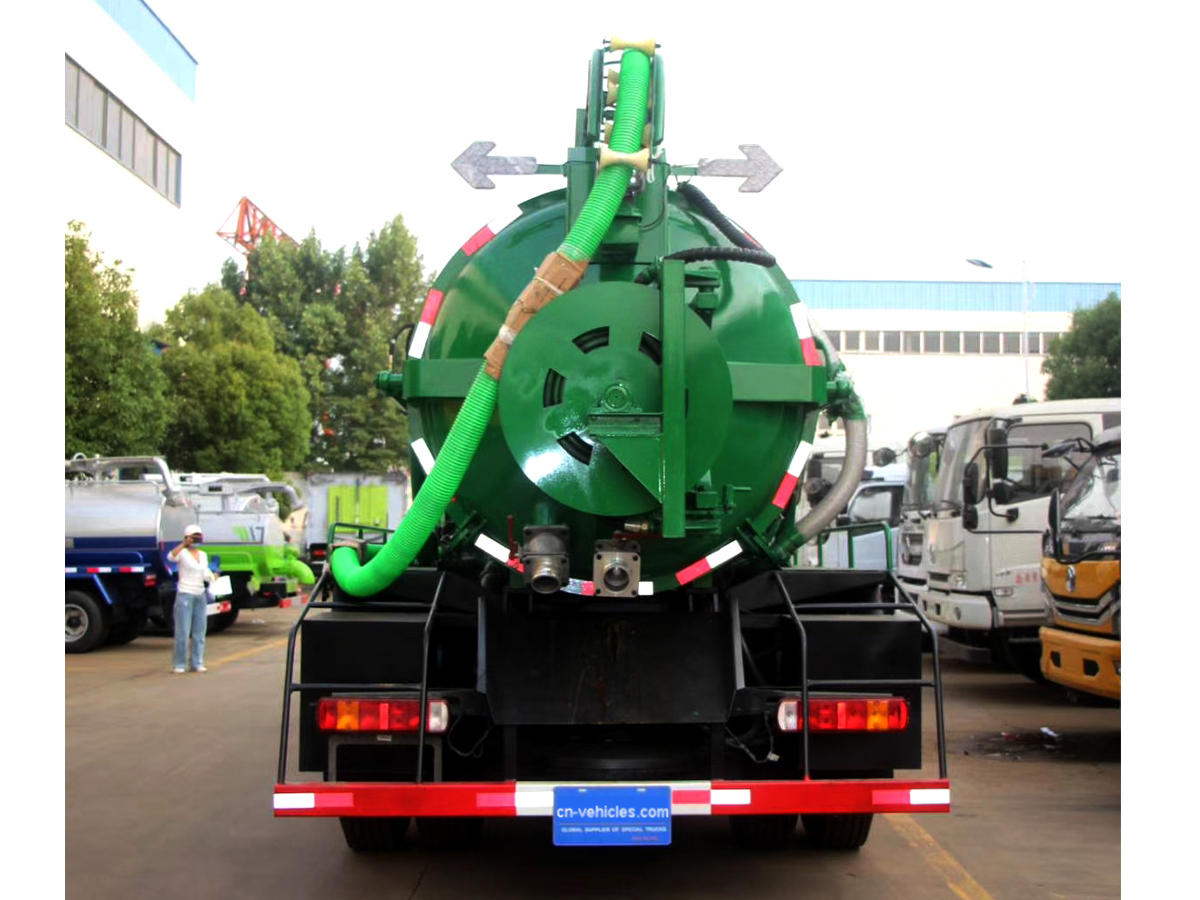

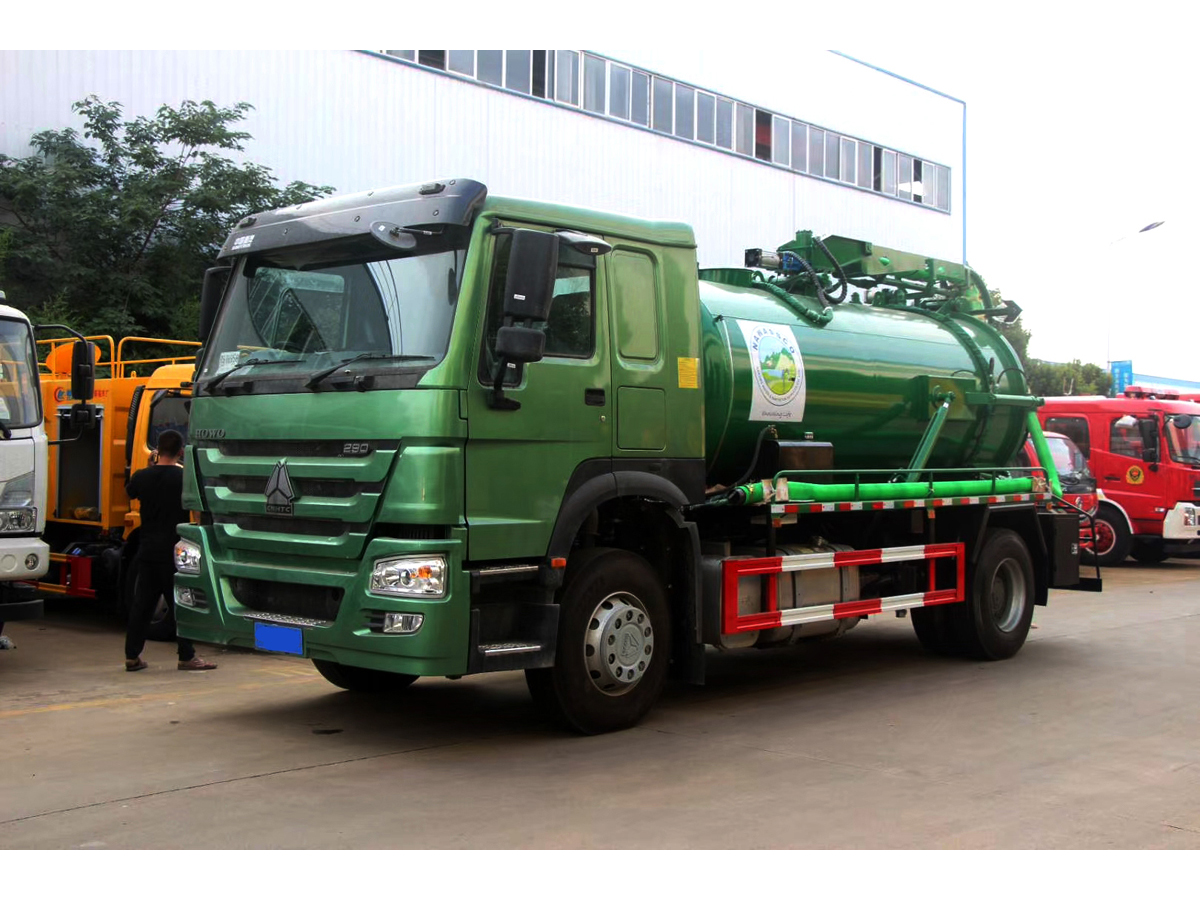

SINOTRUK HOWO 290HP 10CBM 10,000liters Sewage Suction Truck With Jurop Vauum pump Made in Italy
Vacuum Suction Truck is used to collect,transport and discharge liquid such as dirty water, it is widely used in sanitation field.
Description FEEDBACK
SINOTRUK HOWO 290HP 10CBM 10,000liters Sewage Suction Truck With Jurop Vauum pump Made in Italy

Vacuum Suction Truck is used to collect,transport and discharge liquid such as dirty water, it is widely used in sanitation field.

The Vacuum truck models have been designed using the latest technology specifically for local operating conditions. Each model in the range is built to handle the toughest cleanups, including sewerage, line cleaning, industrial sumps and slurries, wet ash, excavation material, and toxic waste or other dangerous materials. Each is designed with focus on a specific application, and there is definitely a model available to meet your requirements.

Truck Technical :

Cabin

HW76 Cabin with two bunks, one sleeper.With A/C. 70° hydraulically tillable to the front as attached photo for ref.

Vehicle Main Dimensions

(L x W x H)mm

8800x2500x3200

Wheel base  (mm)

4600

Wheel track  (front/rear) (mm)

2022/1830

Approach/Departure angle(°)

16/14

Weight in KGS

Tare Weight

10150

Loading Capacity

13000

Front axles loading capacity

1x7000

Rear axles loading capacity

1x16000

Max. driving speedkm/h

90

Engine

Brand

SINOTRUK

Model

WD615.87

Type

4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse PowerHP)

290HP

Emission standard

Euro

Gearbox

HW13710CL, 10 forwards & 2 reverse

Steering Gear

ZF8098,power steering, hydraulic steering with power assistance

Fuel tank (L)

300L

Tire

12 R22.5 all radial tubeless tire , 11 pieces

Brakes

Service brake: dual circuit compressed air brake
Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake


Tank specifications

1, Tank size: 10 cbm
2, with Hydraulic system, the Tank can be lifted up and the tank rear cover openable
3, Equipped with Jurop Vauum pump(Model:PNR155DFL  Serial no.K810231 Max Pressure:1.5ABS/Bar Max speed :1300(R.P.M  Made in Italy)
4, Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment
5, Time for full suction
5min



Working Video
