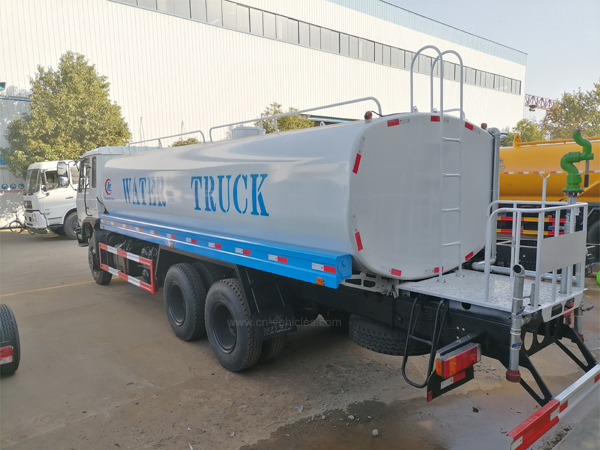

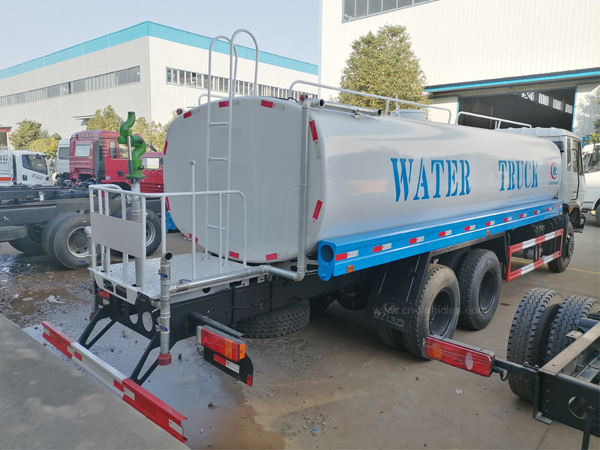

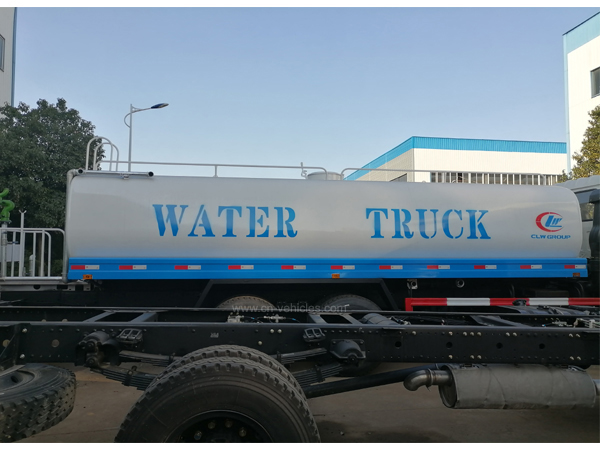

Dongfeng DFAC 3000Liter to 22000Liter Water Tanker Truck With Sprinkler
water tanker truck (also called water tank lorry,Water sprinkler truck , mobile water truck, water tanker, water carrying truck, truck mounted water tanker ) is used to transport and supply water, whatever industrial or agriculture water, widely used in construction engineering, farm irrigation, draught relief, etc.
Description FEEDBACK
Dongfeng DFAC 3000Liter to 22000Liter Water Tanker Truck With Sprinkler

water tanker truck (also called water tank lorry,Water sprinkler truck , mobile water truck, water tanker, water carrying truck, truck mounted water tanker ) is used to transport and supply water, whatever industrial or agriculture water, widely used in construction engineering, farm irrigation, draught relief, etc.

With non-toxic treatment inside tank or tank made of stainless steel, the water tank truck can be suitable for transporting drinking water, called as potable water tanker, drinking water tanker, stainless steel water tanker, agua potavel, safe to human body.

Water tanker can also be equipped with special sprayers to achieve front flush, rear sprinkle, side spray, to sprinkle and clean the roads, streeets for environmental sanitation and protection, called as water sprinkler, water spray truck.
With rear working platform and high cannon, the Water lorry can also be used to water the plants, even high trees in virescence, called as watering truck.

Water bowser can be also equipped with pesticide spraying machine, to be used to spray pesticide in agriculture pest control field
.

Technical Date:

Specification of truck

 Drive Model

 6X4

Vehicle Main            Dimensions

(L x W x H)mm

9950×2490×3200

Wheel base  (mm)

4350+1300

Overhang  (front/rear) (mm)

1245/2670

Approach/Departure angle(°)

28/17

Weight in KGS

Pay loading

15400

Curb Weight

9105

Engine

Brand

Cummins

Model

B210 33

Horse Power

210 hp

Emission standard

Euro 3

Displacement

5900 ML

Max. Output Power

155KW

Gearbox

8JS85E,8 forwards& 2 reverse

Tire

10.00-20

Water Tank

Volume(M3)

22000(22,000liters capacity)

Material

Carbon steel

Manhole

1

Structure& Function

1.Equipped with front,rear, side,sprinkler(sprinkling width>14m )

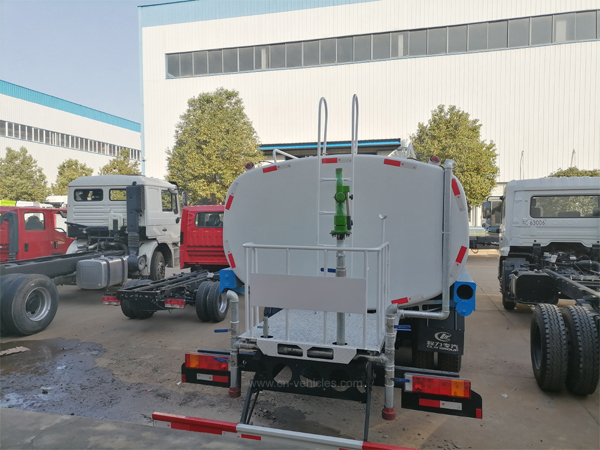

2.Equipped with rear working platform with water cannon (range>28m)
3.Equipped with water pump(suction lift>6m)
4.Equipped with fire valve, water valve
5.Discharge valve and fire joint
6.Two water hose more than 5 meters
