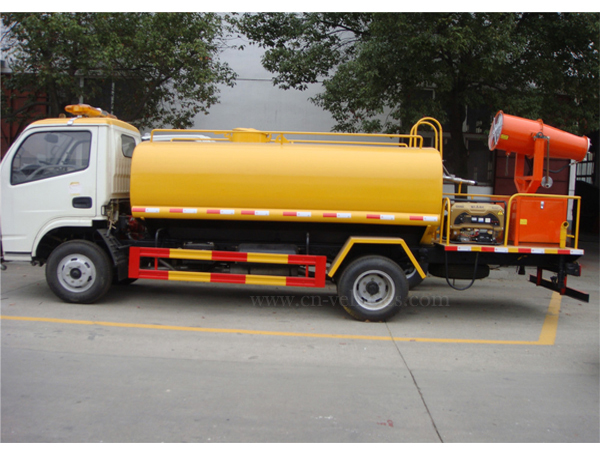

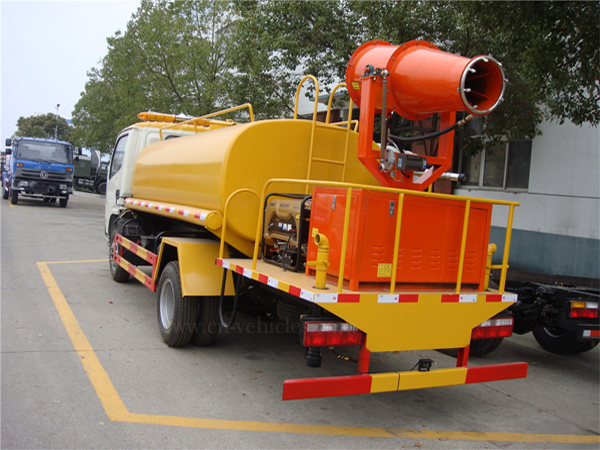

mini 5 ton dust suppression water mist cannon sprayer truck

Items

Descriptions

Specifications and Types

General

Truck Name

Water truck

Drive Type

4*2

Gross Vehicle Weight(kg)

7300

Curb Weight (kg)

3150

Overall Dimensions(mm)

5990×1960×2380

Engine

Engine Model

CY4102-C3F

Engine Brand

CHAOCHAI

Fuel Type

Diesel

Power

70kw/95HP

Emission Standard

Euro III

Displacement(ml)

3856

Engine Type

4 cylinders in line,turbo-charged diesel engine, inter-cooling, water cooling, four stroke,etc

Chassis

Chassis Brand

Dongfeng

Tire No.

6

Tire Specification

7.00-16 Nylon tire

Wheelbase (mm) ;

3300

Axle No.

2

Gear Box

5 speed forward with 1 reverse

Brake

Air brake

Steering Wheel

Left hand drive with power-assisted

Radiator

Suitable for tropical climate

Tank

Water Tank Volume(L)

3000

Tank Material

4mm carbon steel

Tank Shape

Elliptical or Rectangular

Spraying System

Spraying Width(m)

≥15

Water Cannon(m)

30 to 40

Vertical Suction Depth(m)

≥7

Basic equipment

Front dash,rear sprinkle,side spray,rear platform with water cannon
