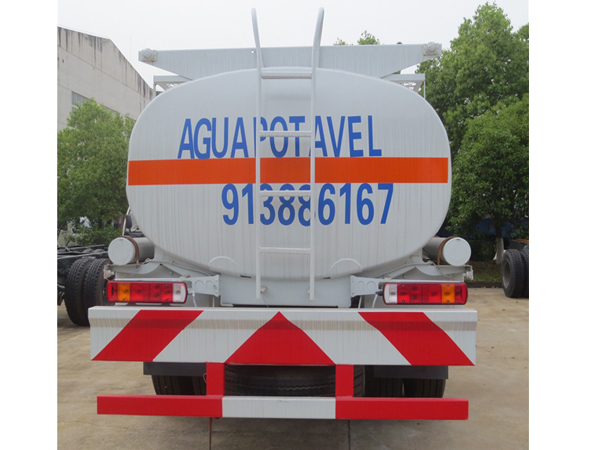

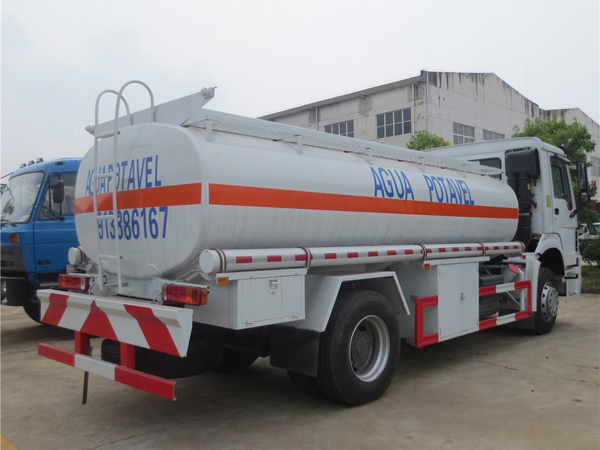

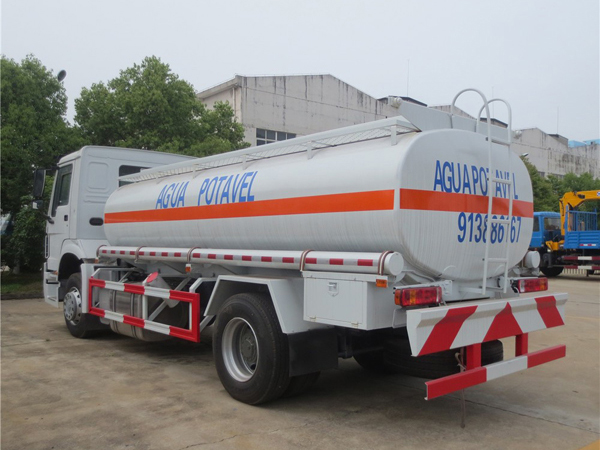

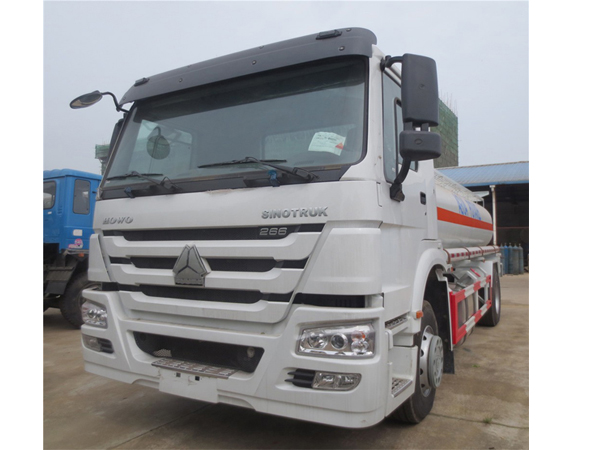

Sinotruck Howo 10 Cbm 266hp Euro 2 Water Spraying Tanker Truck For Washing Various Road

Model

Engine

Make: SINOTRUK

4 stroke direct injection diesel engine

6 cylinder in-line with water cooling, turbo-charging & intercooling

Maximum torque: 1100Nm at 1100~1600 rpm

Bore: 126mm;   Stroke: 130mm;

Displacement: 9.726L;  Compression ratio: 17:1

Specific fuel consumption: 195g/kWh;  Engine oil filling quantity: 23L

Cooling system filling quantity (long-term filling): 40L

Thermostat opening temperature: 80^oC

Twin cylinder air compressor

Transmission

Ratio:14.28 10.62 7.87 5.88 4.38 3.72 2.43 1.80 1.34 1.00 13.91/3.18(R)

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Front Axle

Steering with double T-cross section

Rear Axles

Pressed axle housing, central single reduction and differential locks between axles

Ratio: 4.42

Chassis

Frame: U-profile parallel ladder type with section of 300×90×8 mm and reinforced subframe,, all cold riveted cross members

Front suspension: 10 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension: 12 semi-elliptic leaf springs with bogie spring and stabilizer

Spare wheel carrier: with one spare wheel

Fuel tank: with 400+400 L fuel tank with locking fuel cap.

Steering

ZF81188, hydraulic steering with power assistance

Brakes

Service brake: dual circuit compressed air brake

Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust brake

Wheel & Types

Rims: 8.5-20,10 hole-steel

Types: 12.00R20

Driver‘s cab

Long cab, all steel forward control, 55^o hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver‘s seat and rigid adjustable co-driver‘s seat, heating and ventilation system, with stereo radio/cassette recorder, sun visor, and adjustable steering wheel, air horn, single berth with 4-point support fully floating suspension and shock absorber with transverse stabilizer,safety belt, air conditioner, adjustable roof flap.

Option: air deflector

Electrics

Operating voltage:24V, negative grounded;  Starter: 24V, 5.4KW

Alternator: 28V, 1540W;  Batteries: 2×12, 165Ah

Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp

Dimensions in mm

Wheel base

4600

Front wheel track

2022

Rear wheel track

1830

Front overhang

1500

Rear overhang

2875

Approach angle(^o)

16

Departure angle(^o)

12

Weight in kg

Permissible loading capacity on chassis

13420

Dead weight

8450

Gross vehicle weight

16000

Front axle loading capacity

9000

Rear axle loading capacity

13000
