Dongfeng DFAC Double Cab LHD or RHD Cummins Engine 190HP 3400 Liters Water and 600 Liters Foam Tanker Fire Engine For Sales
Fire Engine(also called fire fighting vehicle , Fire engine , Fire fighting apparatus , Fire service truck , Fire and rescue truck , fire truck , fire fight truck , Foam fire tank truck , Fire extinguishing foam tanker ) is a vehicle designed primarily for fire fighting operation to extinguish fire efficiently to prevent fire spread , reducing the loss caused by fire maximally .
Description
Get quotation
Dongfeng DFAC Double Cab LHD or RHD Cummins Engine 190HP 3400 Liters Water and 600 Liters Foam Tanker Fire Engine For Sales
Fire Engine(also called fire fighting vehicle , Fire engine , Fire fighting apparatus , Fire service truck , Fire and rescue truck , fire truck , fire fight truck , Foam fire tank truck , Fire extinguishing foam tanker ) is a vehicle designed primarily for fire fighting operation to extinguish fire efficiently to prevent fire spread , reducing the loss caused by fire maximally .
Fire fighting truck can be divided into many types:
1. According to vehicle size , There are mini fire fighting truck , Light fire fighting truck , Medium fire fighting truck , Heavy duty fire fighting truck .
2. According to chassis drive type , there are 4*2 fire fighting truck , 6*4 Fire fighting truck , 8*4 fire fighting truck , and off road type 4*4 , 6*6 fire fighting truck .
3. According to chassis brand , There are ISUZU fire fighting truck , Dongfeng fire fighting truck , Foton fire fighting truck , Faw fight fighting truck , Shacman fire fighting truck , Sinotruk fire fighting truck , Mercdes fire fighting truck , etc .
4. According to fire agent , there are water tank fire fighting truck , dry powder fire fighting truck , water / Foam fire fighting truck .
Technical date:
| Product | Dongfeng DFAC Fire Engine | |
| Cab | Double-row, four doors, rated passengers 6 | |
| Volume | Water tank6000~7000L foam tank 2000Litres | |
| Chassis | Brand | DONGFENG |
| Chassis model | DFL1160 | |
| Drive type | 4*2, LHD/RHD | |
| Tire | 9.00-20 | |
| Tire No. | 6+1(spare) | |
| Braking System | Air braking | |
| Clutch | dry clutch, hydraulic remote control | |
| Transmission | 6 forward gear,1 reverse gear,manual mechanical type | |
| Engine | Model | Cummins B190-33 |
| Horse Power(hp) | 190 | |
| Displacement(cc)/Power(kw) | 5900/140 | |
| Emission | Euro2 | |
| Main Parameters | Overall dimension (L*W*H/mm) | 8120*2480*3350 |
| Wheelbase(mm) | 4500 | |
| Axles No. | 2 | |
| GVW(kg) | 15000 | |
| Curb Weight(kg) | 8550 | |
| Leaf spring No. | 7/9+6,8/10+8 | |
| Approaching/Departure Angle | 22/13 | |
| Front/Rear trace(mm) | 1880/1800 | |
| Front/Rear suspension(mm) | 1430/2130 | |
| Max speed(km/h) | 90 | |
| Front/Rear Axle Load(kg) | 5270/9730 | |
| Fire Pump | Atmospheric pressure pump | Type:BS30 firefighting pump,Flow capacity:30L/s,Pressure:1.0MPa |
| Medium-low pressure pump | Type:CB40/10:low pressure Flow capacity:30L/s/1.0MPa;medium pressure Flow capacity:15L/S/2.0MPa | |

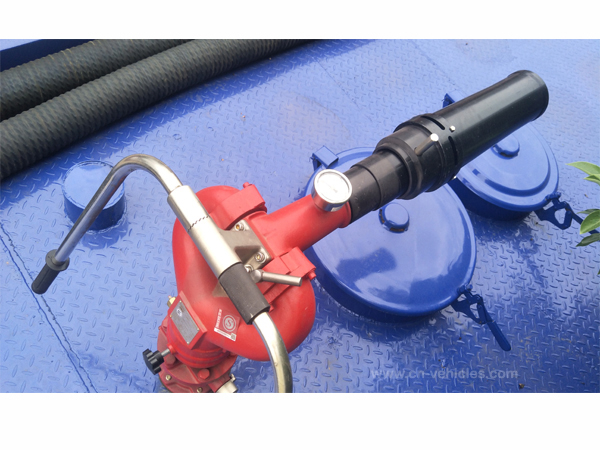

| Fire Monitor | Type | SP80 |
| Shot Range | span>55m | |
