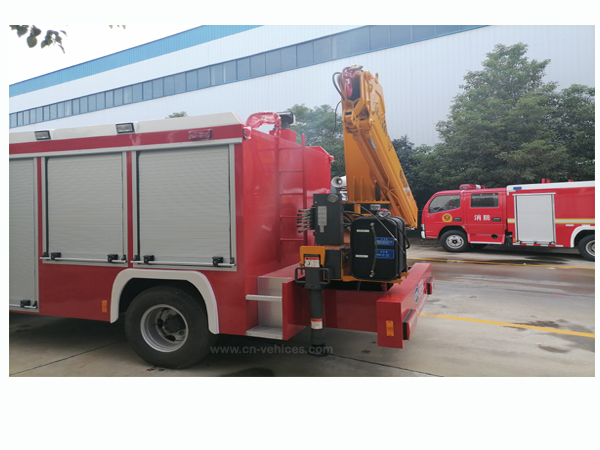

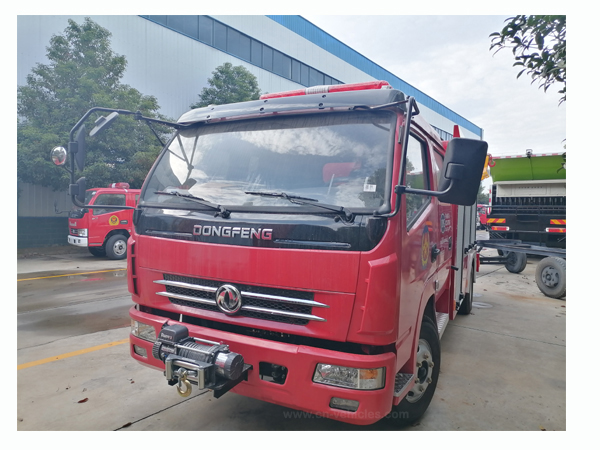

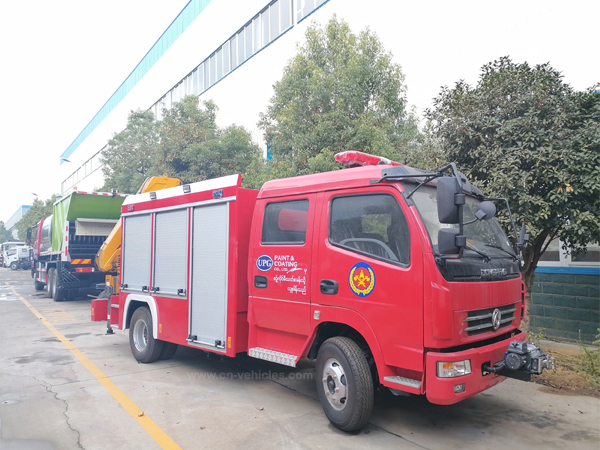

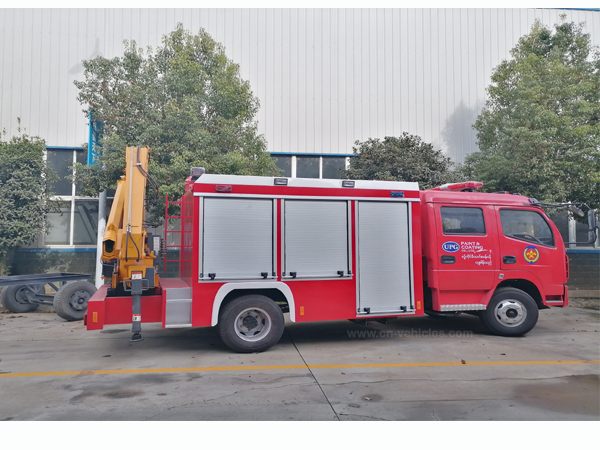

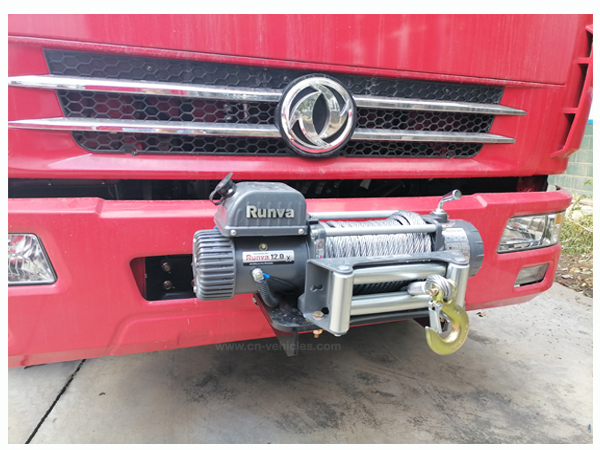

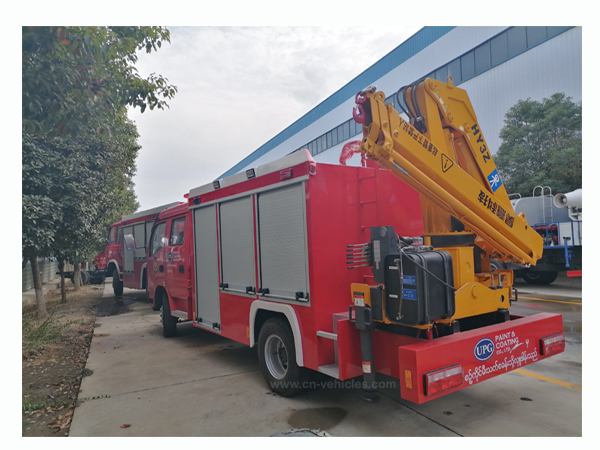

Dongfeng DFAC Fire Rescue Truck With Electric Winch and 3 Ton Crane We Export To Burma

Model

Parameters

others

Overall Dimension

7660×2500×3460

GVW

15560kg

Engine Model

Dongfeng

Engine Power

177kW

Wheelbase

4500mm

Driving Type

4X2

Max.speed

90km/h

Emission Standard

7790 ml

Euro4

Passengers

1+1+4

Fire pump rated flow

60L/s@1.0Mpa;30L/s@2.0Mpa

Vacuum pump

water monitor rated flow

48-64L/s

Adjustable

Water monitor range

Water range≥60m,foam≥55m

Approach angle

≥16°

Departure angle

≥23°

  Item                Parameters

Parameters

others

1

Water tank capacity

water

3000

Built-in type

Foam tank capacity

foam

2000

2

Fire pump model

CB20·10/30·60

Shanghai rongshen

3

Fire pump performance

condition

Pressure1:1.0Mpa flow:60L/S
Pressure2:2.0Mpa flow:30L/S

Use vacuum pump to priming water

4

the installation site of fire pump

rear

5

The quantity of fire pump water outlet

6

6

Pressure gauge

0-1.6 Mpa, 0-2.5 MPa

2.6 level

7

Vacuum gauge

-0.1- -1 MPa

2.6 level

8


Water monitor
(PL48-64YZ)

water

Flow:
48- 64L/S


Range:60m

Shandong zhangqiu

foam

Range:55m

 Depression/Elevation angle

-30-+70°

Turning angle 360°

9

PTO Model

YTQ590K type full power sandwich , pneumatic
