ISUZU FVR Emergency Fire Rescue Truck With 5 Tons XCMG Crane
  • ISUZU FVR Emergency Fire Rescue Truck With 5 Tons XCMG Crane
  • ISUZU FVR Emergency Fire Rescue Truck With 5 Tons XCMG Crane
  • ISUZU FVR Emergency Fire Rescue Truck With 5 Tons XCMG Crane
  • ISUZU FVR Emergency Fire Rescue Truck With 5 Tons XCMG Crane
  • ISUZU FVR Emergency Fire Rescue Truck With 5 Tons XCMG Crane
  • ISUZU FVR Emergency Fire Rescue Truck With 5 Tons XCMG Crane
ISUZU FVR Emergency Fire Rescue Truck With 5 Tons XCMG Crane

Loading capacity range of Emergency Rescue Fire Truck:2ton,2t,3ton,5ton,6tons,8ton,10tons,12ton,14ton,16ton

Description Get quotation

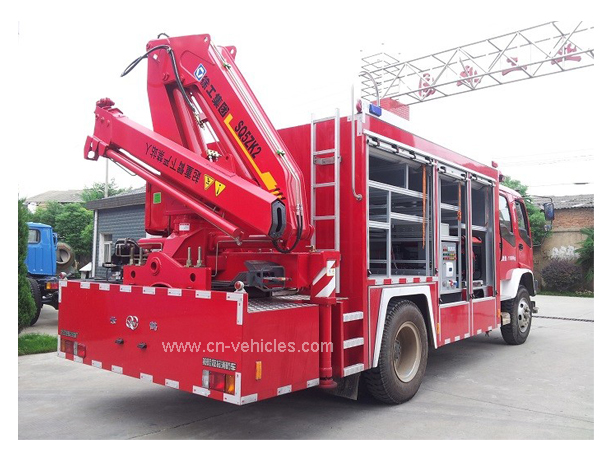

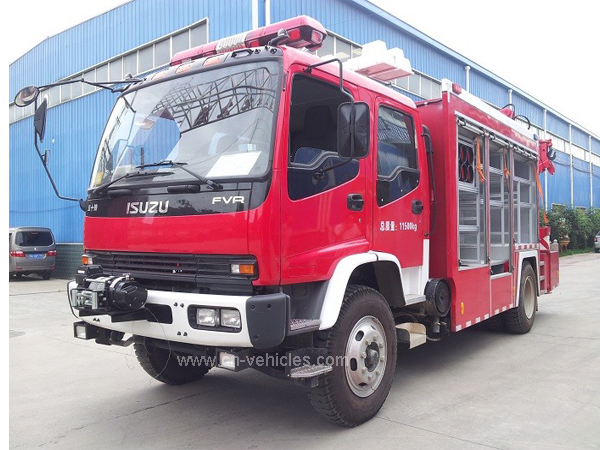

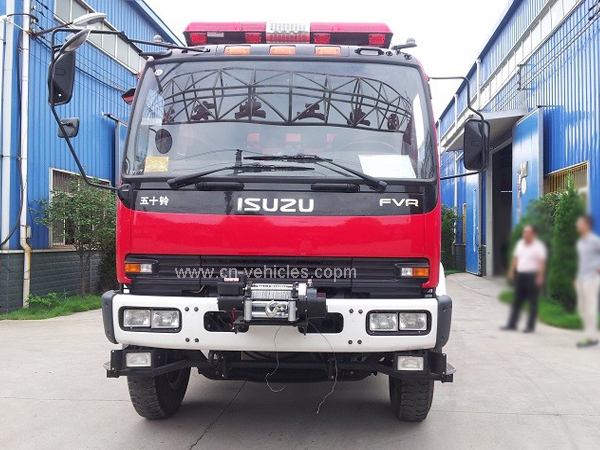

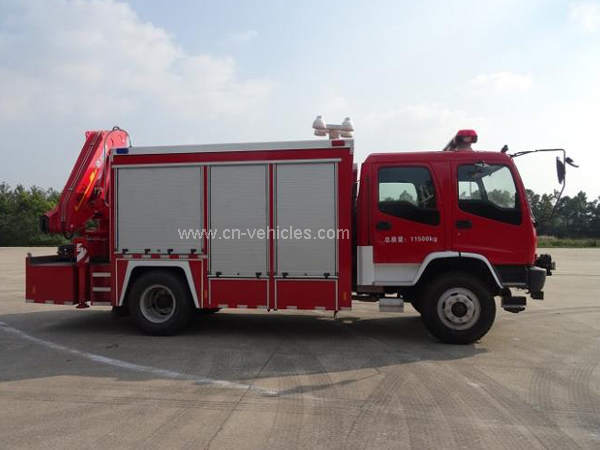

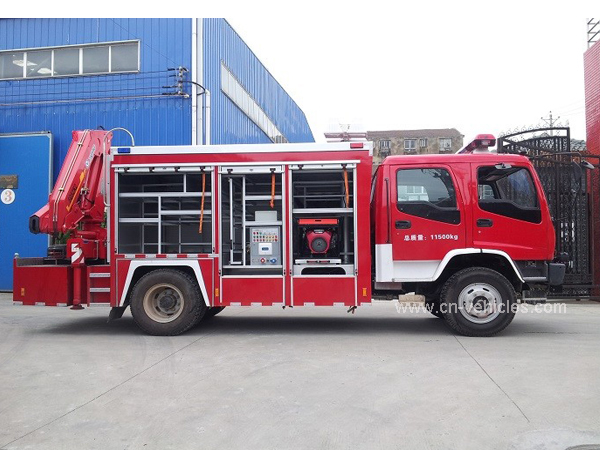

ISUZU FVR Emergency Fire Rescue Truck With 5 Tons XCMG Crane


1) Emergency Rescue Fire Truck is composed with truck body and cabin,cabin is two rows,which can allow 6 persons.The front part of truck body is equipment room,middle is water tank and foam tank,rear is pump room.

2) To ensure good performance of Emergency Rescue Fire Truck is equipped with middle and low pressure fire pump CB20.10/30.6o with flow rate at 60L/S and Shandong zhangqiu fire monitor PL48-64YZ.

3) Firefighter Trucks are widely used in factory,terminal,oil&gas depot to insure emergency fire cases.

4)Loading capacity range of Emergency Rescue Fire Truck:2ton,2t,3ton,5ton,6tons,8ton,10tons,12ton,14ton,16ton


Model

Parameters

others

Overall Dimension

8055×2500×3500

GVW

16000kg

Engine Model

6HK1-TCNG40

Engine Power

177kW

Wheelbase

4500mm

Driving Type

4×2

Max.speed

90km/h

Emission Standard

7790ml

Euro4

Passengers

2+4

Approach angle

≥26°

Departure angle

≥12°

Generator

10KW

SHT11500

Lifting lamp

4×1000W,Height≥7.5M

YZH4-5.04CA

Traction winch

5443kgf

N12000XF

Crane

5000kg

SQ5ZK2


The accessories equipment list


Item
Item
parameters
unit
quantity
1
Portable dry powder fire extinguishers
2kg
piece
1
2
Bucket

piece
2
3
Triangle Warning board

piece
2
4
sole timber for crane

piece
2
5
Spare light tube

piece
2
6
Original chassis tools and accessories

piece
1
