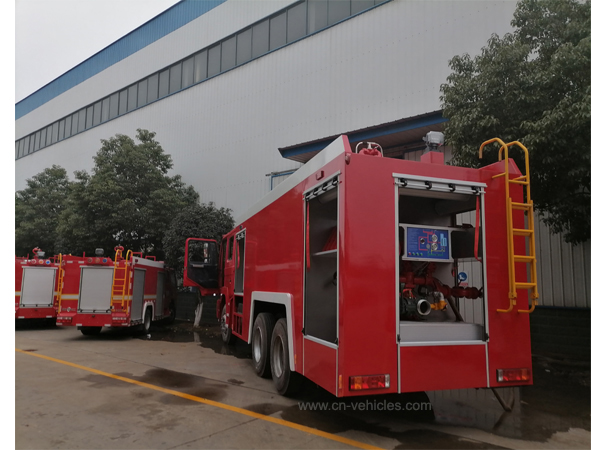

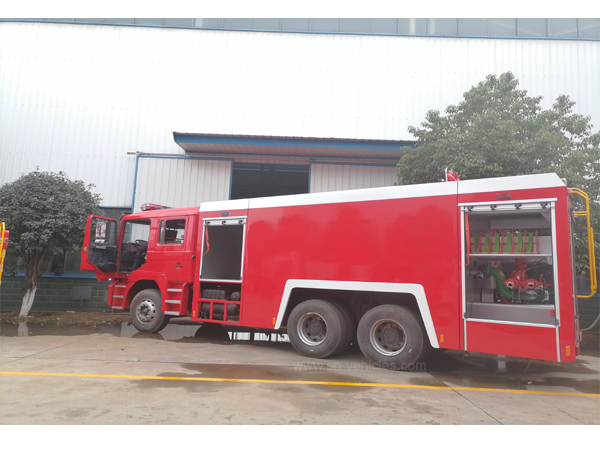

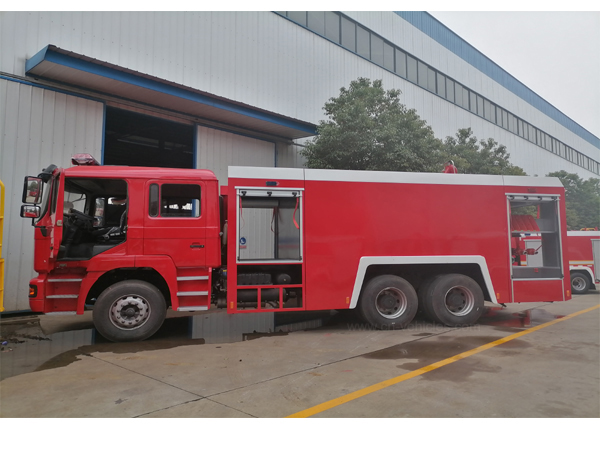

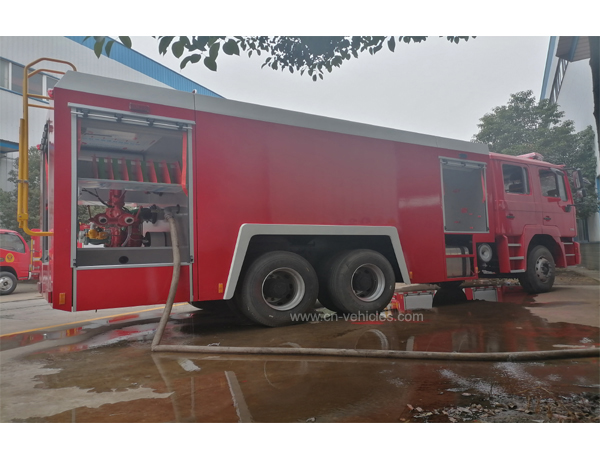

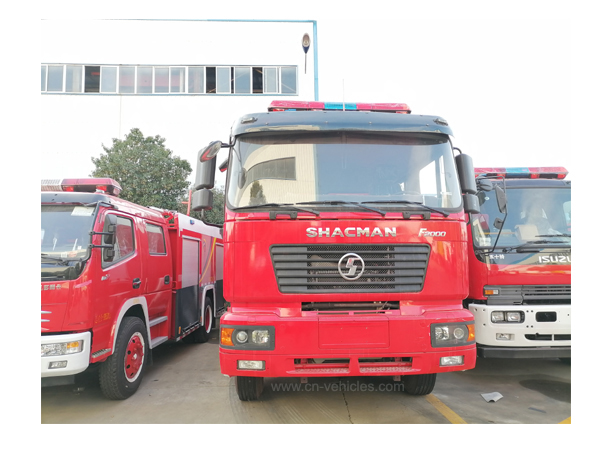

Shac SHACMAN F3000 12000L Water and 4000L Foam Tanker Fire Fighting Truck With English Operation Manuals

Piping system

External water inlet pipe: There is one external water inlet on the back side of the pump, the pipe diameter is Φ150mm, the outer suction pipe is connected, and the inner buckle
Interface (small cover seal); suction pipe Φ150 × 4m (2).

Inner water inlet pipe: 1 Φ150mm rear inlet water, the tank enters the fire pump, and installs 1 Φ150mm
Butterfly valve, connecting liquid tank and water pump.

Water outlet pipe: ※ 2 Φ80mm ball valves and 2 Φ65mm ball valve controlled atmospheric pressure outlets;
※ 1 Φ89mm gun line, using Φ80mm flexible joint, and using Φ80mm
Ball valve control.

Water injection pipeline: ※ 1 Φ50mm internal water injection pipeline, water can be directly injected into the tank through the water pump;
※ There is one external water inlet on each side of the truck body.

Remaining water pipeline: To protect the water pump and each ball valve, install a drain valve at the lowest point of the pipeline.

Cooling water line: The power take-off is used to cope with various complicated situations, and is equipped with a cooling water line and a stainless steel ball valve.

Foam proportional mixer: Type: ring pump type Mix ratio: 6%

Equipment box and pump room

Material: the skeleton is made of high quality steel

Structure: The partition inside the equipment box is made of steel structure, which is firm and reliable, improving space utilization and variability.

Opening the door: There are aluminum alloy rolling shutters on the left and right sides of the equipment box, which are light and reliable and have low noise.

Electrical system

License plate holder: meets the requirements of GB4785 and meets the license lighting requirements.

Cab top: equipped with long row of luxury police lights, alarm power is 100W; alarm, police
The lamp and strobe circuit are independent additional circuits, and the controller is installed in the cab.

Safety sign light: 4 signs on each side of the lower part, one turn signal on each side, with a position light.

General technical requirements

1. All operating switches, instruments, equipment racks and vehicles have nameplate signs that conform to the specifications;

2. The vehicle performance complies with the provisions of GB7956 “Fire Engine Performance Requirements and Test Methods”;

3. The quality of the liquid tank complies with the provisions of GA39;

4.English Operation Manuals

Components And Accessories

Category

Serial number

Equipment name

Quantity

Unit

Fire extinguisher

1

Water Suction Pipe

4000mm*2

pcs

2

Water Strainer

1

pcs

3

Water Segregator

1

pcs

4

Water Collector

1

pcs

5

∈65×20m Soft-wall fire hose

8

pcs

6

∈80×20m Soft-wall fire hose

4

pcs

7

Adapter Joint

2

pcs

8

Irregular interface Joint

1

pcs

9

Fire Axe

1

pcs

10

Hose protector

4

pcs

11

Groud Hydrant-wrench

1

pcs

12

Undergroud hydrant-wrench

1

pcs

13

Suction pipe wrench

2

pcs

14

Fire water gun

2

pcs

15

Fire bucket

1

pcs

16

4M Aluminum Ladder

1

pcs

17

Foam gun

1

pcs

Demolition rescue tool

1

Fire extinguisher

1

pcs

2

shovel

1

pcs

3

Fire waist axe

1

pcs

4

Tick

1

pcs

5

Shovel

1

pcs
