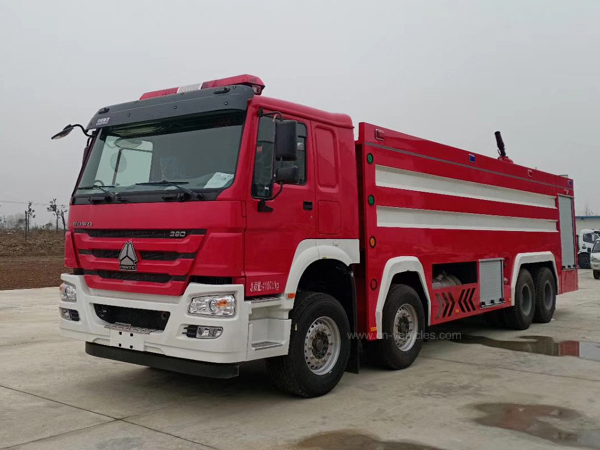

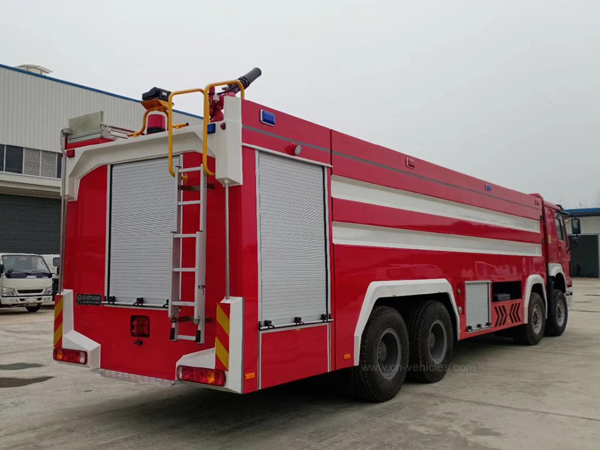

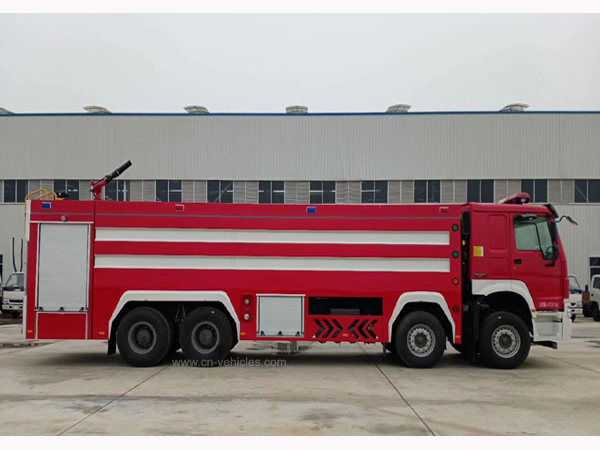

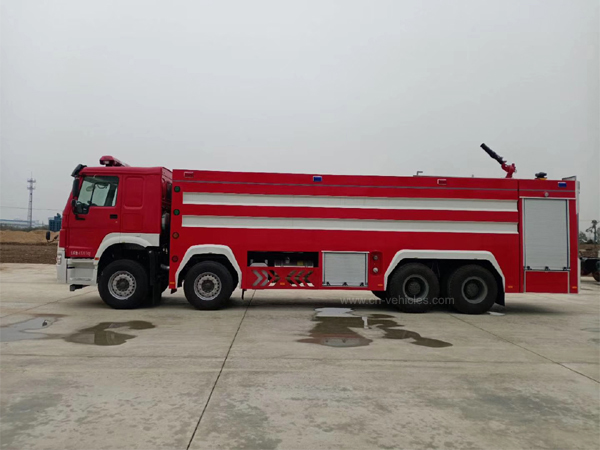

Sinotruck Howo 8*4 20tons to 25tons Foam Fighting Fire Truck For Sales

Technical Data

Name：

Sinotruck Howo 20tons Foam Fire Truck

Dimension(mm)：

11900*2500*3635

Gross weight(kg)：

41000

F/R overhang(mm)：

1500/2545(mm)

Rated load weight(kg)：

23550

Max speed(km/h)：

85(km/h)

Curb weight(kg)：

17300(Kg)

Chassis

Chassis type：

ZZ5437V4667E1

Fuel type：

Diesel

Axle number：

4

Front tread(mm)：

2022/2022

Wheelbase(mm)：

1800+4600+1350

Rear tread(mm)：

1830/1830

Crew：

2

Spring plate number：

11/11/12/ 13/12

Tyre number：

12

Axle load：

8500/7300/12600/12600

Tyre specification：

385/65R22.5/315/80R22.5,385/65R22.5/12.00R20,385/65R22.5/12.00-20

Remarks：

Rear extension:105 mm

ABS system type:460046300

Side and rear protection material: Q235

Rear ground clearance: 545mm

Engine type:

D10.38-50

Output power

276 kw /380 hp

Displacement:

9726 ml

Extinguishing system

Tank capacity:

20000 L

Water tank volume:

15450 kg/15.45 CBM

Tank dimension:

6135×2380×1450 mm

Foam tank volume:

4100 kg/4.008 CBM

Pump:

80L/S 1.0Mpa

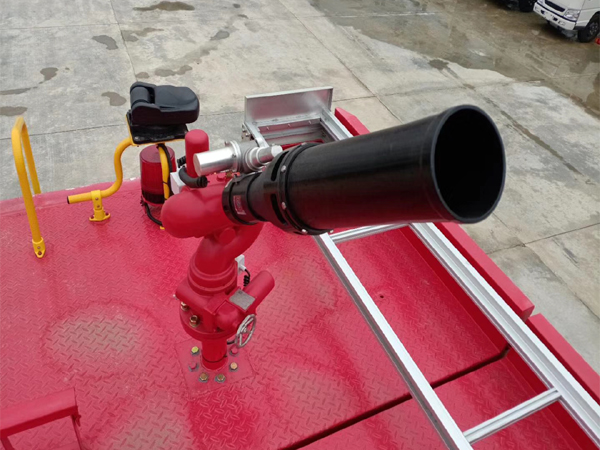

Fire monitor:

80L/S 1.0Mpa

Working height:

water: 75 m, Foam: 70 m
