3axle 2axle 27000liter 10000 Gallons 27cbm Chemical Liquid Chl Road Tanker 38cbm Sulfuric Acid Tank Trailer

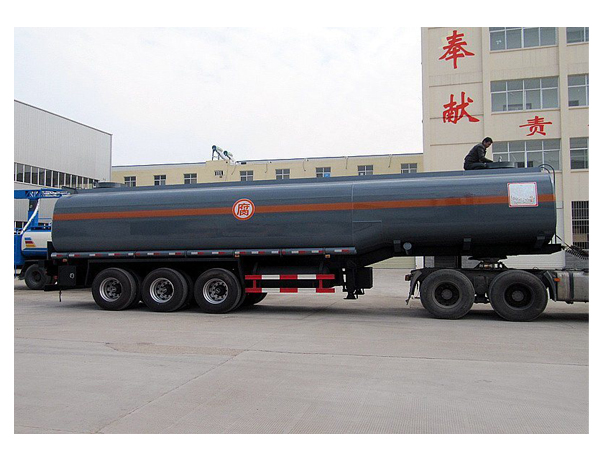

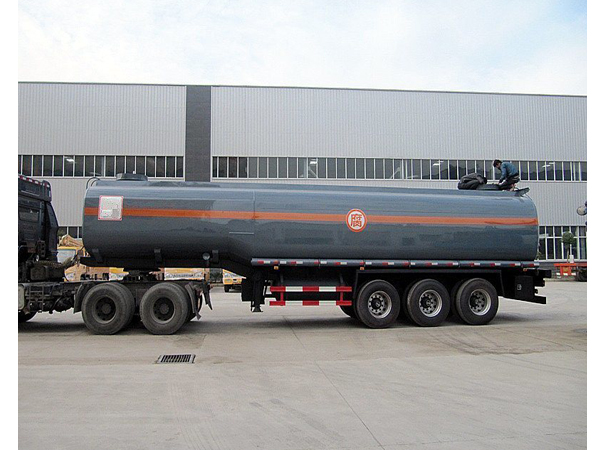

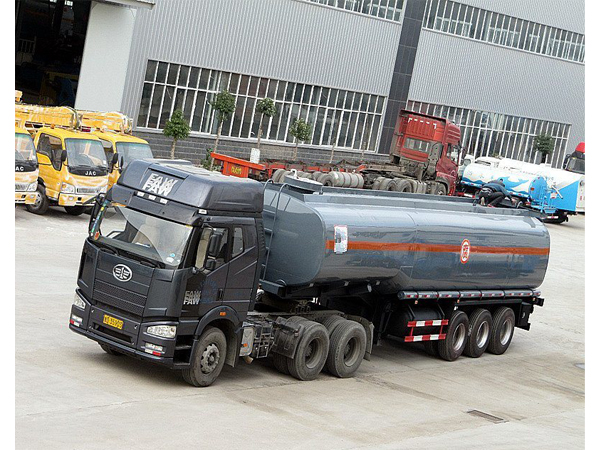

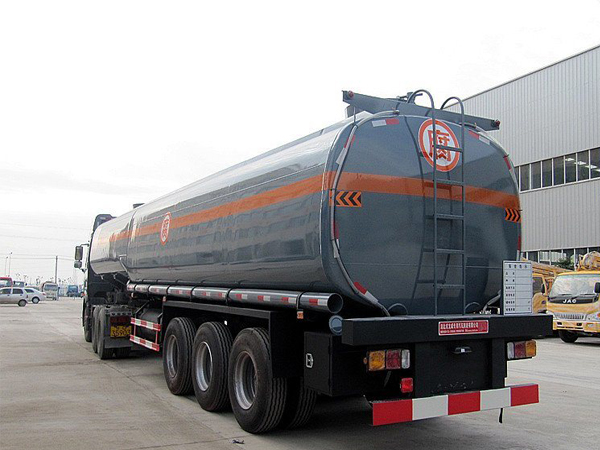

CHL road tanker 38cbm sulfuric acid tank trailer
38cbm sulfuric acid tank trailer
CHL road tanker 38cbm
27cbm chemical liquid CHL road tanker
27cbm CHL road tanker
27cbm chemical liquid road tanker

Standard configurations:
  1. Tank material:Q235-B(Tank 5mm , Head 6mm)
  2. Tank interior :lining PE , Thickness 16mm
  3. Head:Water Head
  4. Steel plastic wave proof plate :Double corrugated , surface lining plastic PE
  5. Sub warehouse
  6. Main valve:Built in valve
  7. Artesian mouth :After the end of a 3 inch artesian mouth , with PP ball valve
Description FEEDBACK
3axle 2axle 27000liter 10000 gallons 27cbm chemical liquid

CHL road tanker 38cbm sulfuric acid tank trailer
38cbm sulfuric acid tank trailer
CHL road tanker 38cbm
27cbm chemical liquid CHL road tanker
27cbm CHL road tanker
27cbm chemical liquid road tanker

Standard configurations:
  1. Tank material:Q235-B(Tank 5mm , Head 6mm)
  2. Tank interior :lining PE , Thickness 16mm
  3. Head:Water Head
  4. Steel plastic wave proof plate :Double corrugated , surface lining plastic PE
  5. Sub warehouse
  6. Main valve:Built in valve
  7. Artesian mouth :After the end of a 3 inch artesian mouth , with PP ball valve
Technical Date
Main Technical Parameters
Curb weight 9500kgs
Fact load 30500kgs
Overall G.W. 40000kgs
Overall size 10600*2500*3530mm
Tank
Tank size 10000*2500*1710mm
Tank inner size 9800*2300*1510mm
Tank Volume 27m3
Tank shape Oval
Medium Ammonium nitrate ;German saltpetre
Tank color Any color customer like
Tank thickness Tank body:5mm , Tank head:6mm
Tank inside 16mm PE
Thickness of tank insulation 100mm
Protective material Q235A carbon steel
Reflecting marking  TW1200-1 ,HW1400
Head type Hydraulic head
Corrugated board Double corrugated , surface lining plastic PE
Warehouse Whole type or seperate type according to your needs
Main Valve Inside valve
Artesian moutn Two pcs of 3 inch artesian mouth in the left end and the right end of the trailer , with PP ball valves
Running gear
Suspension Leaf spring suspension
Wheelbase 4800+1310+1310mm
ABS model CM2XL-4S/2K(4S/2M)
Tire type 11.00R20
Tire number 12
Spring 8;8;8
Approach/departure angle 18
Overhang F/R 1840/1840mm
Level Gauge 24000(three alex group)
Number of axles 3
Axles 13T Fuma axles with ABC
Axles support legs Single motion lifting legs(Perfectly fit to various road conditions
Traction pin 90# or 50#
Tool box 1 pcs
Water box 1pcs
Warrenty ≤0.5Mpa
Flow speed 1 year
Certification CCC,ISO
1.We use steel plastic wave proof plate , Is has the advantages of high strength , good anti impac , long life and etc.
2.Optional equipment:PTFE Pump
