FAW J6 30000liters Mobile Refueling Tanker Truck For Sales
1. Oil tank truck also called flow bowser, computer tax-controlled tanker truck, gasoline truck, oil truck.

2. Mainly used for oil derivatives (gasoline, diesel oil, crude oil, lubricating oil and coal tar oil )transportation&storage.
It‘s made of tanks, take power device, a transmission axis, a gear oil pump, pipeline system and other parts.

3. Four consists of oil pump, the 3-way ball valve pipe network system, two-way of ball valve, strainer, pipe.

4. Chassis brand: HOWO, Dongfeng, Shacman, JAC , ISUZU , Foton etc are available
Material: carbon steel, aluminium, stainless steel Capacicity : 25000 liters, 30000 liters , 35000liters
5. Usage: transport oil, fuel petroleum, chemical liquid Axle: 2 axles, 3 axles, 4 axle Type: 4x2, 6x2, 6x4, 8x4.
Description FEEDBACK

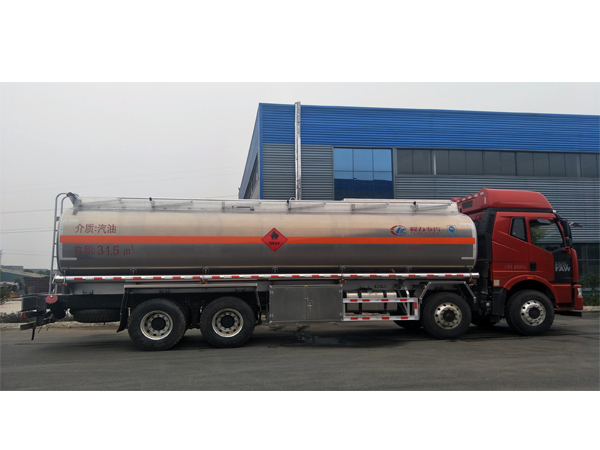

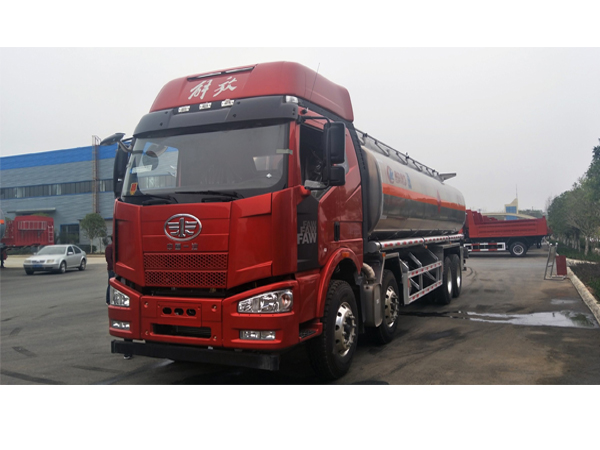

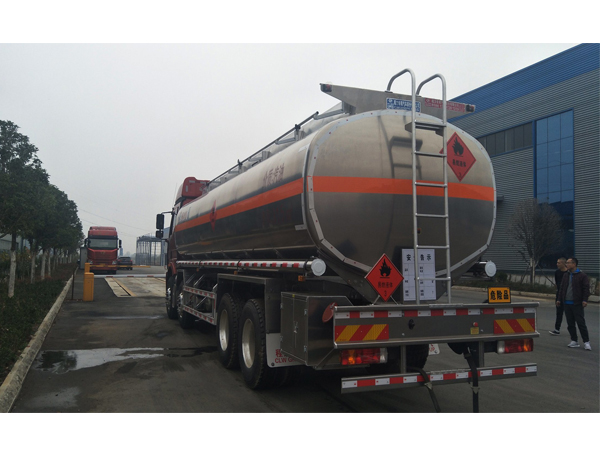

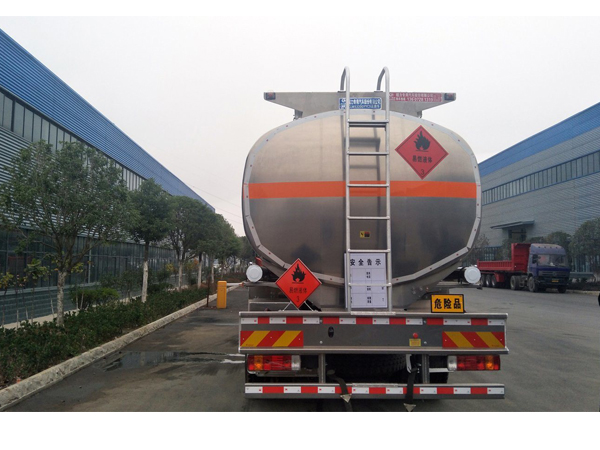

FAW J6 30000liters Mobile Refueling Tanker Truck For Sales

1. Oil tank truck also called flow bowser, computer tax-controlled tanker truck, gasoline truck, oil truck.

2. Mainly used for oil derivatives (gasoline, diesel oil, crude oil, lubricating oil and coal tar oil )transportation&storage.
It‘s made of tanks, take power device, a transmission axis, a gear oil pump, pipeline system and other parts.

3. Four consists of oil pump, the 3-way ball valve pipe network system, two-way of ball valve, strainer, pipe.

4. Chassis brand: HOWO, Dongfeng, Shacman, JAC , ISUZU , Foton etc are available
Material: carbon steel, aluminium, stainless steel Capacicity : 25000 liters, 30000 liters , 35000liters
5. Usage: transport oil, fuel petroleum, chemical liquid Axle: 2 axles, 3 axles, 4 axle Type: 4x2, 6x2, 6x4, 8x4.


Item Unit Description
Model   Faw J6 Oil Tank Truck
Dimension Mm 11995*2500*3600
Sample Tank Dimension Mm 9200*2450*1780
Litter 35000
Material Aluminum Alloy 5083H111, 6 Mm Thick
Option~ Stainless Steel, Carbon steel
Curb Weight Kg 12605
G.V.W Kg 40000
Wheel Base Mm 1950+4550+1350
F/R Track Base Mm 1950 / 1950 / 1847
F/R Axle-Load Kg 6500 / 6500 / 13000 /13000
Type Steel Spring Type
Approach/Departure Angle . 18 / 21
Traction System Type 8*4
Max Speed Km/h 90
Tire Specification/Number Model 12.00-20 / 12 Units+1 Spare
Engine Model Bf6M1013-28
Emission/Kw 7146 Cc, 195 Kw / 2300 r
Horse Power 280 Hp
Power 1050 N.m - 14000 r/Min
Type Diesel, 6 Cylinder, Turbocharge, Water Cooling
Brand Faw Brand Engine
Gear Box Model 9 F&1R, Manual
Electronic V 24
Cab Person 3
Type Reversable, Manual
Steering Type Powering
Installing Lhd Or Rhd
Air Condition Yes Radio, Cd.
Equipment Installed Top Installing Human Foldable Ladder, Rear Climbing Ladder, Top Aluminum Type Human Port Diameter 450mm. Bottom Output And Input Port With Ball Valve,Bottom Urgent Cut Off Valve, Tool Box.
China Manufacturer Standard
Option Refueling Device, Fuel Dispenser
Option Api Standard
