Forland 6 Wheels Construction 3-5T Light Duty Dump Garbage Tipper Truck

Dump truck is also called dumper truck, tipper truck, dump truck tipper, tipper,etc.The dump trucks  adopts is consisted of dump truck chassis, tipping box, hydraulic cylinder for dump truck. The dump truck is mainly used for transport sands, stone, gravels, etc. As a dump truck supplier, the dump truck for sale are 4x2 dump truck, 6x4 dump truck, 8x4 dump truck, forland dump truck, dongfeng dump truck, sino dump truck, jac dump truck, jmc dump truck, iveco dump truck, etc.



Description FEEDBACK

Forland 6 Wheels Construction 3-5T Light Duty Dump Garbage Tipper Truck

Dump truck is also called dumper truck, tipper truck, dump truck tipper, tipper,etc.The dump trucks  adopts is consisted of dump truck chassis, tipping box, hydraulic cylinder for dump truck. The dump truck is mainly used for transport sands, stone, gravels, etc. As a dump truck supplier, the dump truck for sale are 4x2 dump truck, 6x4 dump truck, 8x4 dump truck, forland dump truck, dongfeng dump truck, sino dump truck, jac dump truck, jmc dump truck, iveco dump truck, etc.



The main Brand Partner: Dongfeng, SINO HOWO, HOWO, Beiben, Faw, Foton, Forland, Hyundai, Hino, Iveco, JAC, JMC, Shacman, Honyan, Genlyon

Driving Type: 4*2, 6*4, 8*4, 4*4 , 6*6 , 4wd , off-road , 10 wheel , 12 wheeler , 18 wheel

Capacity: 3T, 5T,10T, 15T, 20T, 25T, 30T, 35T, 40T, 50T, 60T, 80T, 100T

Steering Wheel: Left Hand Drive and Right Hand Drive





Truck Specification



Truck model

CLW0305TZXMX

BJ1073VEPXA-B2

Cab

1695 single row

Driving Type

4X2 Left hand driving

Max Speed (km/h)

90Km/h

Overall dimension(mm)

5995×2250×2450(mm)

GVW( kg)

4290(Kg)

Truck  tare weight( kg)

2600(Kg)

Wheelbase(mm)

3360

F/R track base (mm)

1780/1605

F/R overhang (mm)

 1180/1455(mm)

Approach/Departure Angel

20/18(°)

Tire

6.50-16

Clutch

Hydraulic control with air booster, pushing

Steering

Hydraulic steering with power assistance

Gear box

Type

5-speed

Bridge

Front axle

2.2T

Rear axle

3T

Engine

Model

4DW91-63NG2

Fuel Type

Diesel fuel

Horse power

63

Braking system

Service Brake

Full air brake system

Park Brake

parking spring brake acting on rear axles

Eletric system

24V



Upper-Body  specification

Dump box dimension (L*W*H)(mm)

3850X2274X800

Dump box material

Carbon steel

Dump box thickness (mm) bottom/side

4/3

Hydraulic cylinder

340 cylinder

Dump box color

red

Hydraulic cylinder type

middle position,  double middle cylinder

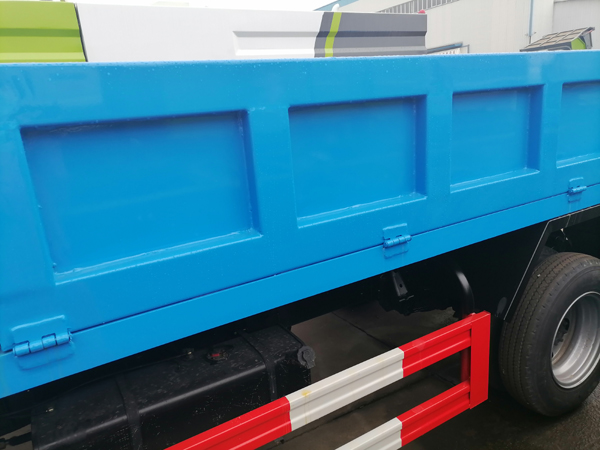

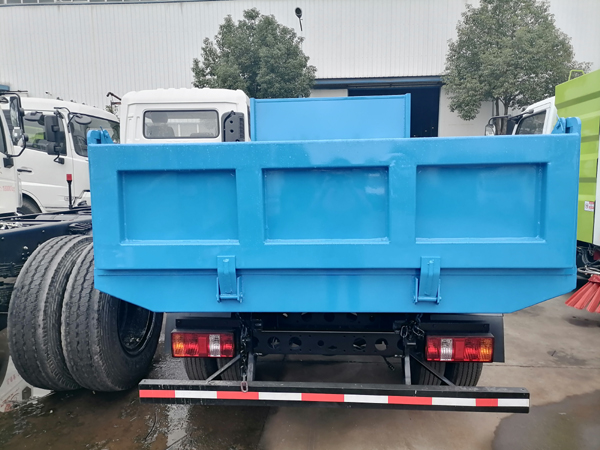

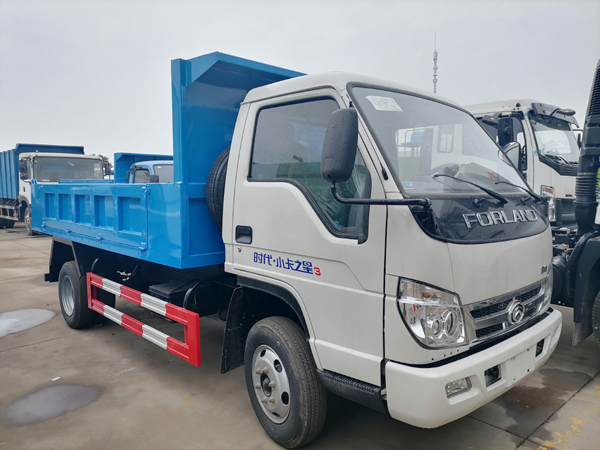

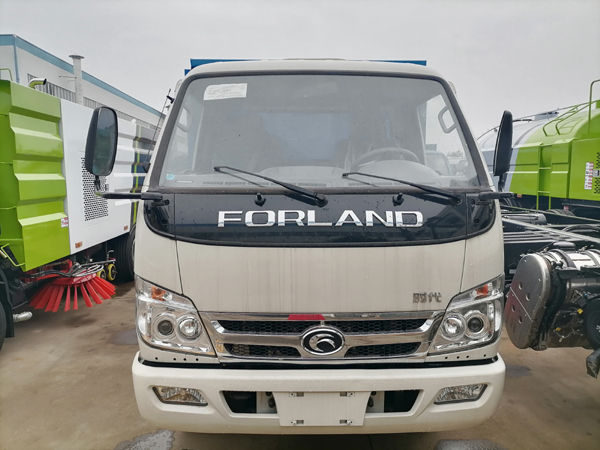

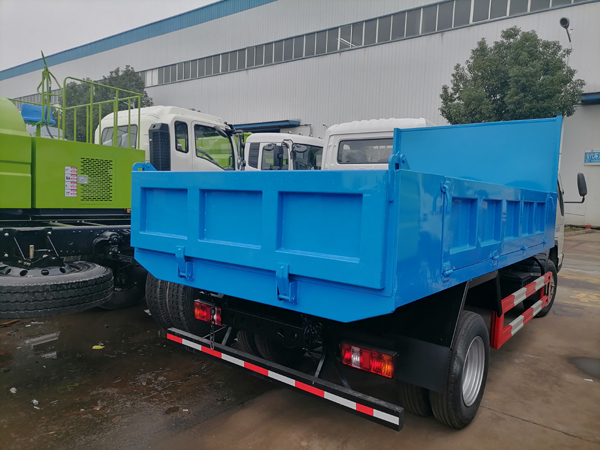

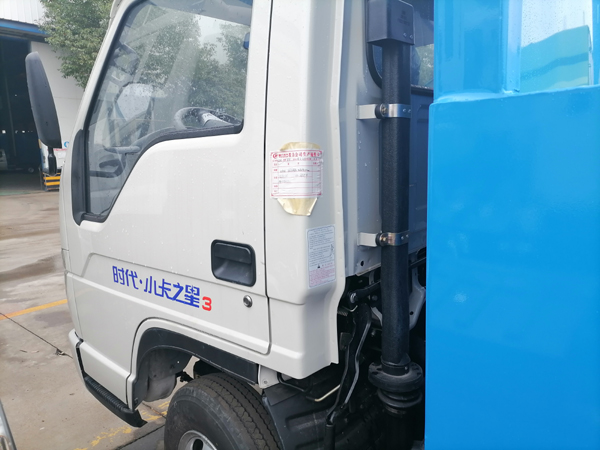

Forland 6 Wheels Construction 3-5T Light Duty Dump Garbage Tipper Truck picture:
