ISUZU 6 Wheels 600P Small 8000kg Garbage Transport Dump Truck For Sales

Dump truck  is a vehicle that could discharge by itself through the hydraulic or mechanical hoisting system.

It is also called the tipper. It is consisting of the chassis, hydraulic hoisting structure, cargo box, power take-off device, and other spare parts.

Description FEEDBACK

ISUZU 6 Wheels 600P Small 8000kg Garbage Transport Dump Truck For Sales

Dump truck  is a vehicle that could discharge by itself through the hydraulic or mechanical hoisting system.

It is also called the tipper. It is consisting of the chassis, hydraulic hoisting structure, cargo box, power take-off device, and other spare parts.



Vehicle Description

Vehicle model

Tipper truck

Overall dimensions (mm)

4880×1885×2300

GVW (kg)

Appro×6000

Fact loading capacity(kg)

5000

Mass in working order (kg)

Appro×2500

Max. Speed (km/h)

90

Chassis Description

Chassis Model

QL1070

Cab

Single row non-longhead cab can turn over

Color

Optional

Allowable person in cab

2

Wheel base (mm)

3360

Front/Rear track base (mm)

1260/1260

Front/Rear overhang (mm)

795/1065

Number of axles

2

Axle

Front axle

2500

Rear axle

4800

Traction system

4×2

Operation control system

Power steering

Braking system

Oil brake

Electric system

24V

Transmission

5-speed

Spring plate

5/4

Tire specification

7.00R16

Tire quantity

6 6+1

Engine Description

Engine model

4KH1-TCG40

Emission standard

Euro4

Exhaust/output

2999ml/88kw

Horse power

120hp

6 Up-parts Description

Max capacity(kg)

5000

Dump box dimension (L*W*H)(mm)

4000×1860×400

Dump box material

Carbon Steel

Dump box thickness (mm) bottom/side

4/3

Hydraulic cylinder

Mid-Double Cylinder

Dump box color

Optional

Working Condition:

1Altitude: 0-4500m

2Temperature: -350C~+450C

3Relative humidity: 80%

4Wind force: 8 degree

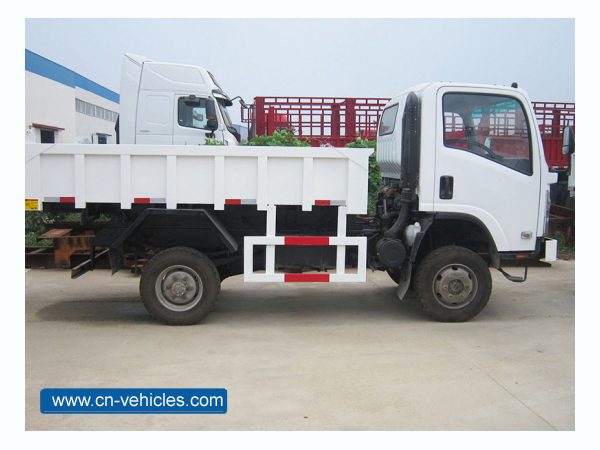

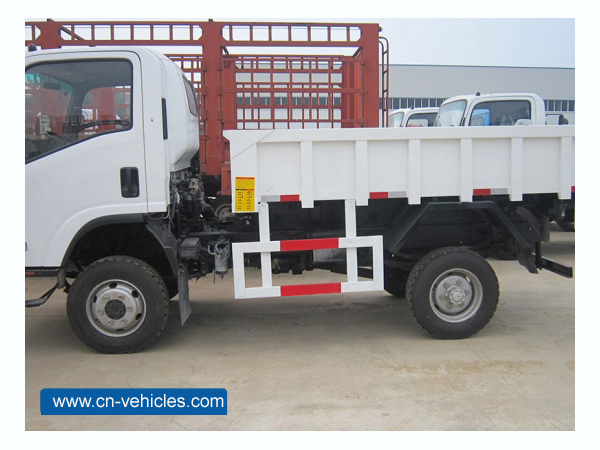

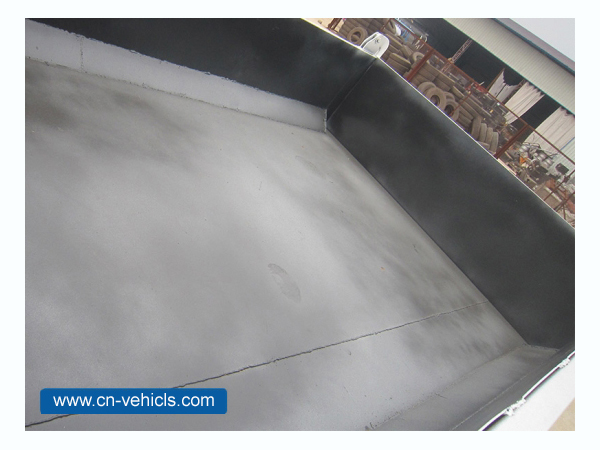

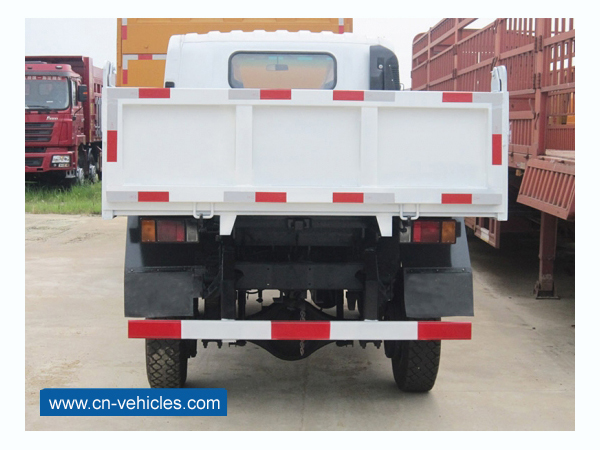

Truck picture:
