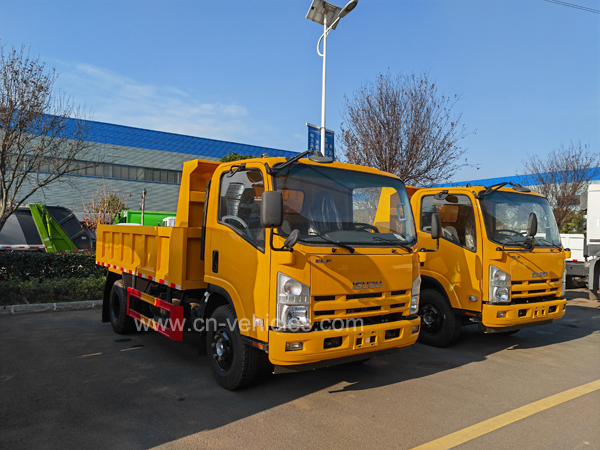

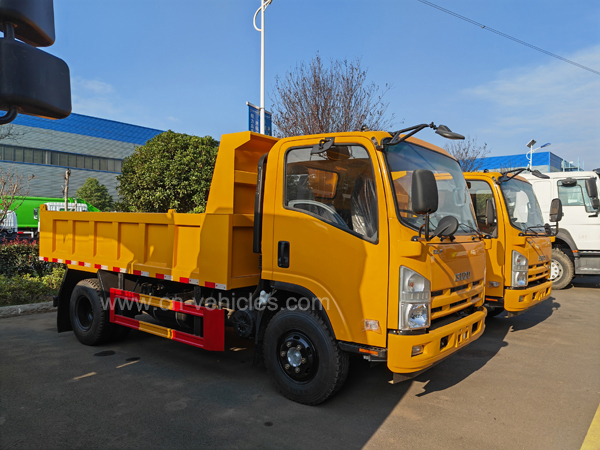

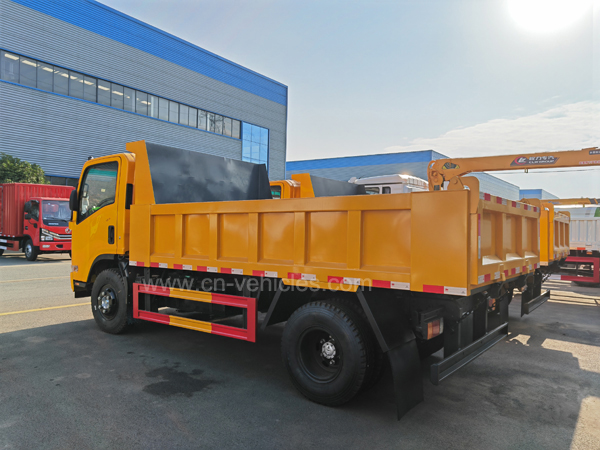

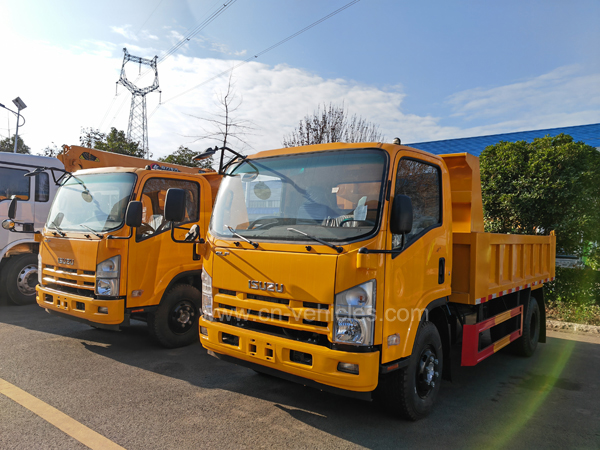

Isuzu 700p 4X2 190HP 8 Tons Small Dumper Tipper Dump Truck for Sale

Truck parameters

Chassis model

QL1090

Cargo box size

5050x2150x450mm

Side 3mm, bottom 4mm

White color

Overall dimensions

7050x2307x2550mm

Wheel base

3815 mm

Front/rear wheel track

1680/1650mm

Front/rear suspension

1110/2602mm

Approach/departure angle

21/10°

Maximum speed

110km/h

Chassis Manufacturer

QingLing Motors (Group) Co., Ltd.

Isuzu 4HK1 diesel engine 190hp, Euro 4 emission,  MLD six gears transmission,  with A/C,  hydraulic assist, front axle 4T, rear axle 7T, tyre 8.25-16,  oil brake, truck cabin tiltable forward lifting, cabin can be flipped.

Cab

Configuration

700P, single cabin, allowable 3 passengers, air conditioner, USB radio interface, cab can be flipped.

Color

White

Engine

Model

4HK1

Emission

Euro 5

Rated power

190hp

Displacement

5193ml

Manufacturer

Isuzu Engine (Chongqing) Co., Ltd.

Tire

Size

8.25-16

Number

6+1 nos

Brake

oil brake

Frame

216X60(6+3)mm

Front axle

4.0 tons

Rear axle

7.0 tons

Drive form

4X2

Suspension

Multi leaf springs

Rated voltage

24V,DC

Transmissions

Isuzu MLD six speed transmission, 6 speed forward 1 reverse.

Steering device

Power assisted steering

Steering wheel

Left hand drive
