Sinotruck HOWO Outdoor or Indoor Appear Message LED Truck for Export
  • Sinotruck HOWO Outdoor or Indoor Appear Message LED Truck for Export
  • Sinotruck HOWO Outdoor or Indoor Appear Message LED Truck for Export
  • Sinotruck HOWO Outdoor or Indoor Appear Message LED Truck for Export
  • Sinotruck HOWO Outdoor or Indoor Appear Message LED Truck for Export
  • Sinotruck HOWO Outdoor or Indoor Appear Message LED Truck for Export
Sinotruck HOWO Outdoor or Indoor Appear Message LED Truck for Export

Combined full color outdoor LED, monochrome screen, roller box, high-power stereo equipment, and other media show together, strengthen the system optimization makes the activity more convenient operation

Description Get quotation

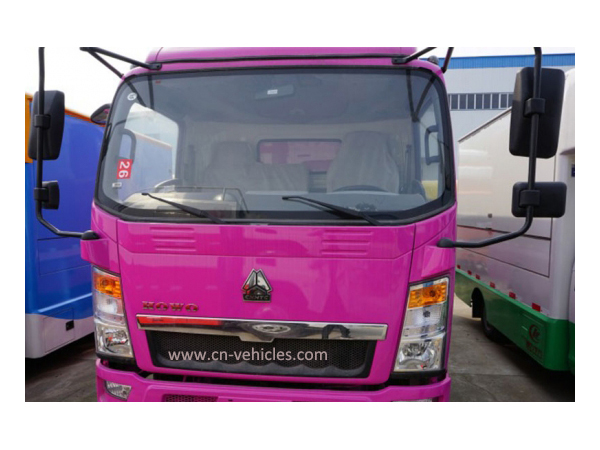

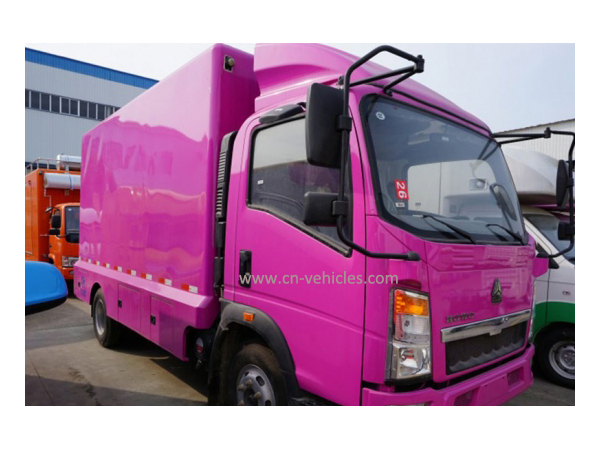

Sinotruck HOWO Outdoor Or Indoor Appear Message LED Truck For Export



LED display, also called led screen, led video wall, or led sign, with its unique advantages, has gradually replaced the traditional billboards, light boxes, etc. LED display advertising has become a new force in the media industry.
Traditional advertising can only show pictures, But LED display/led video wall/led screen can perfect combine text, pictures, video, and sound with high resolution, high brightness and full colour!

LED display Advertising screen can easily attract the attention of pedestrians, and also are easy to remember, which can generate greater advertising effectiveness.Led display screen now are widely applied in media advertising, transportation, Security,Real estate and Stage show background.

 Technical Date

Vehicle Description

Vehicle model

LED screen truck

Overall dimensions (mm)

5995×2025×2995

GVW (kg)

Appro×5495

Fact loading capacity(m3)

-

Mass in working order (kg)

Appro×4300

Max. Speed (km/h)

90

Chassis Description

Chassis

CA1047

Cab

Short cab withRight hand drive

Color

Optional

Allowable person in cab

3

Wheel base (mm)

3360

Front/Rear track base (mm)

1415/1485

Front/Rear overhang (mm)

1085/1550

Number of axles

2

Axle

Front axle

2000

Rear axle

3500

Traction system

4*2

Braking system

Air brake

Electric system

24V

Transmission

5speed

Tire specification

7.00R16

Tire quantity

6+1

Engine Description

Enginemodel

4DW93-84

Emission standard

Euro3

Exhaust/output

2540ml/66kw

Horse power

85hp

E Up-parts Description

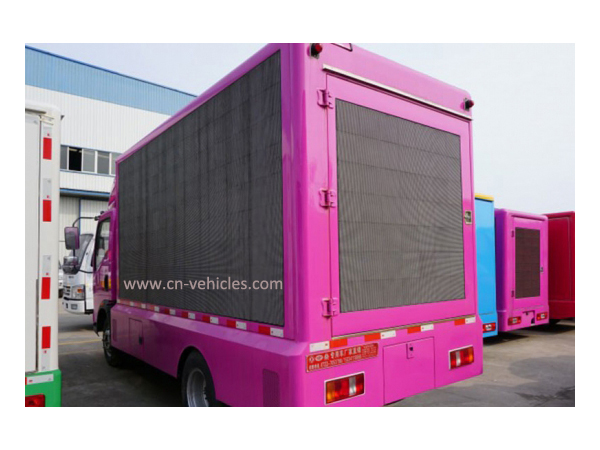

Left side LED screen

P4    3840*1792 mm

Right side LED screen

P4    3840*1792 mm

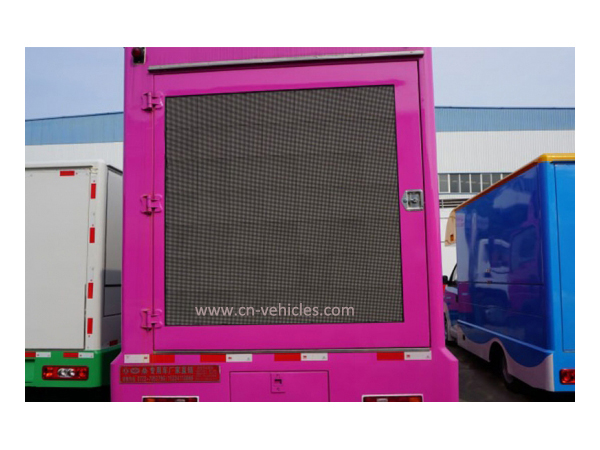

Rear LED screen

P4    1280*1440 mm

Generator power

15KW

Standard equipment

1,Van box material:5cm composite steel frame

2,Wood floor and lighting system

3,Electrical source distribution box

4,Circulating ventilation cooling system

5,Control computer:1 SET

6,Waterproof speakers:4 PCS

7,Power amplifier: 1 SET

8,OUMA Silent generator: 1 SET

9,Operation desk

10.Media control system
