40Ton to 50 Ton Sea Food Refrigerator Trailers Price

Sea Food Refrigerator Trailer is a kind of refrigerated truck.The refrigerated trailer is mainly composed of an automobile chassis, a heat insulation and insulation body,a refrigeration unit, and a temperature recorder in the compartment.The body of a refrigerated trailer is very long, which also has the advantage that it can carry morecargoes, save freight, and can also contribute to improving the overall economic efficiency of road transport. It has been the main force in the long-distance cold-chaintransportation.

Description FEEDBACK

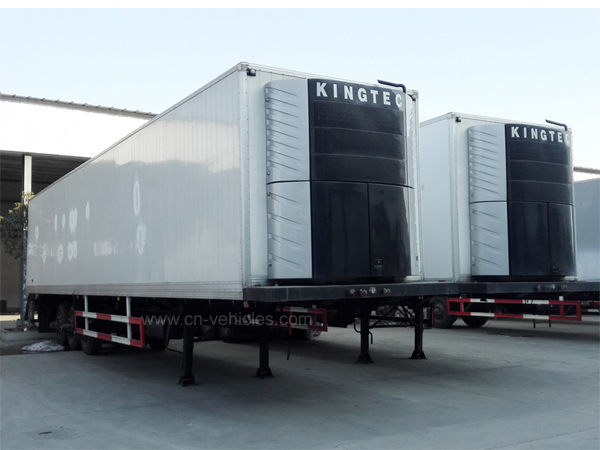

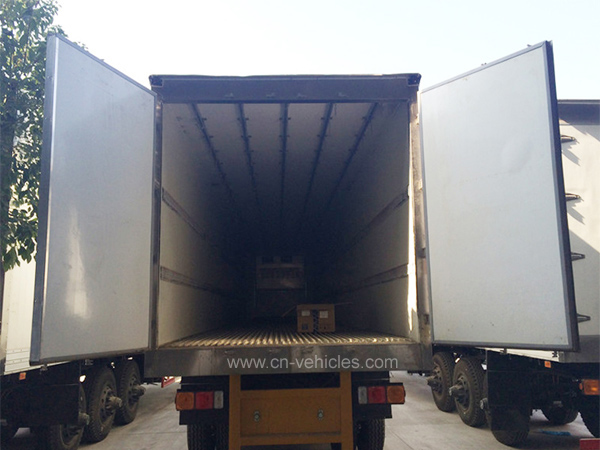

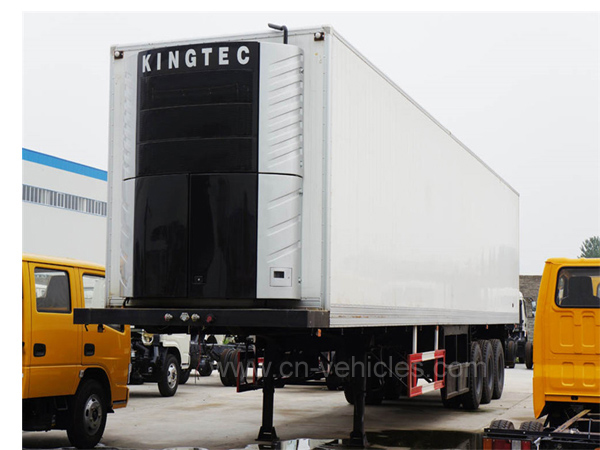

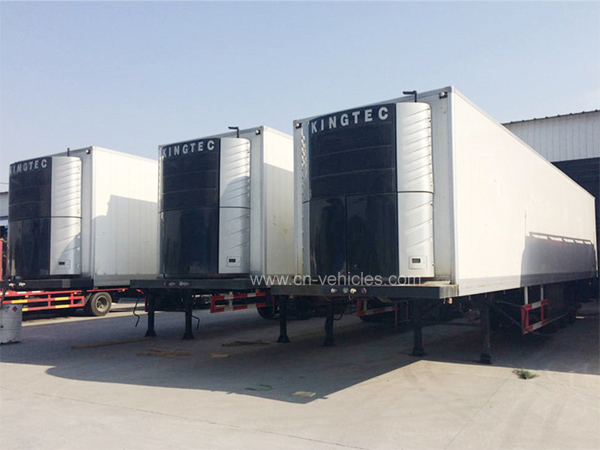

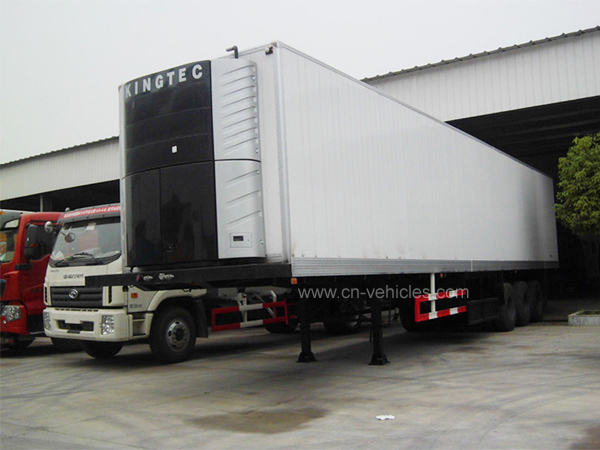

40Ton-50 Ton Sea Food Refrigerator Trailers Price



Sea Food Refrigerator Trailer is a kind of refrigerated truck.The refrigerated trailer is mainly composed of an automobile chassis, a heat insulation and insulation body,a refrigeration unit, and a temperature recorder in the compartment.The body of a refrigerated trailer is very long, which also has the advantage that it can carry morecargoes, save freight, and can also contribute to improving the overall economic efficiency of road transport. It has been the main force in the long-distance cold-chaintransportation.



1.Famous Brand Axle and King Pin Support

2.China Best Q345B-T700 support Stronger Trailer Skeleton

3.Heavy duty and extra durability designed I beam chassis.

4.Refrigeration unit  imported from American or Korea

5.Compartment thickness : 8mm, heat preservation performance meet the National Grade A standard.

6.Reliable Quality and competitive price



Main Dimensions

Overall Dimensions

14600*2550*4000mm

Van Dimensions

13820*2330*2410mm

Tare Weight

9900KGS

Loading Capacity

40T

Van Body

Van Body Stuff

FPR,Roofing iron,PPGI Aluminum,Duralumin

Fact Cubagem3

55~65

Insulation Material

Polyurethane

Insulation Thickness

80mm

Door

Rear door,optional for side door

Temperature Range

-25° to +27°

Refrigerator System

Brand

KINGTEC

Refrigerant

SK1380

Lowest working temperature

18 centi degree

Chassis

Main Beams

Special design I beam, connected by bolts and nuts with van body, removable from van body for separate transportation;

Axle

3 axlesFuwa 13 Ton

Landing Gear

JOST brand Two-speed, manual operating, heavy duty landing gear

King Pin

JOST brand 2 bolt-in king pin

Suspension

German design heavy duty mechanical suspension

Pneumatic Braking System

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.

Wheel rim

8.25-22.5 wheel rim, 13 pieces

Tire

11R22.5 with one spare tire, 13pieces
