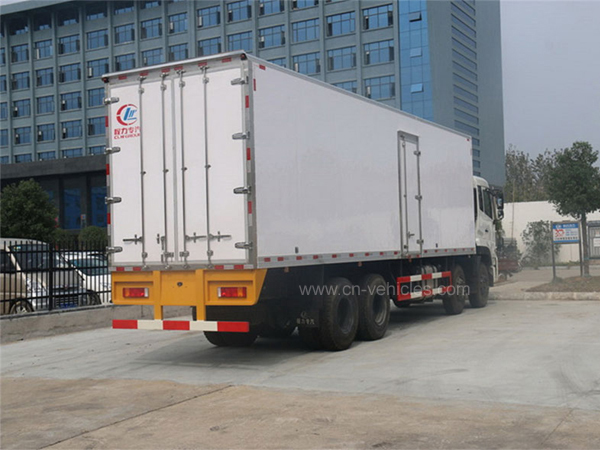

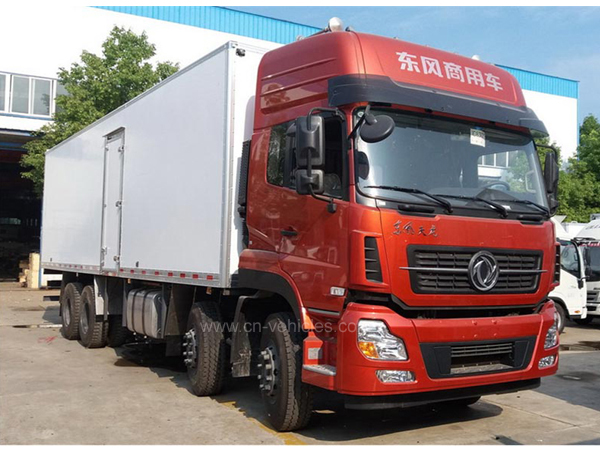

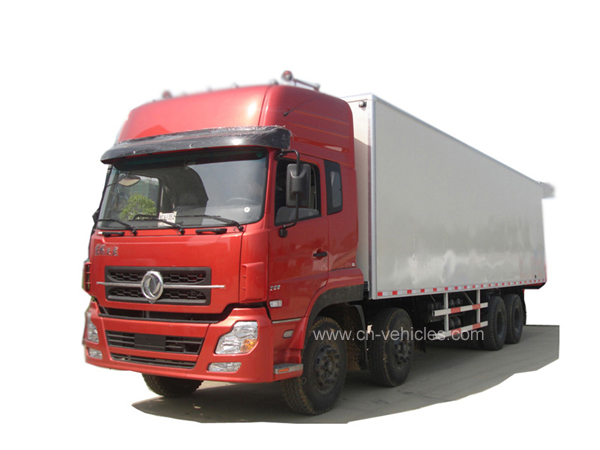

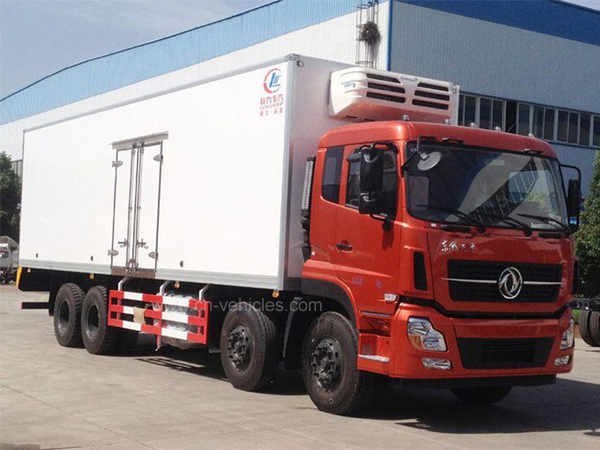

Logistics Refrigerated Truck refers to a special vehicle that transports perishable foods from one place to another place at a low temperature. It is an indispensable part of the cold chain. The refrigerated truck itself can maintain a certain low-temperature environment and can transport low-temperature foods. Cold chain transportation can be divided into two categories of primary agricultural products and processed foods according to the degree of food processing. Primary agricultural products include vegetables, fruits, meat, poultry, eggs, milk, aquatic products, and flower products; processed foods include frozen foods, packaged cooked foods such as poultry, meat and aquatic products, ice cream and dairy products, and fast food ingredients. Different foods have different temperature requirements for freshness, so the types of vehicles that need to be transported are also different.
Cabin |
Driving type 8x2 |
|
Vehicle Main Dimensions |
Overall dimensions (L x W x H)mm |
11980*2550*3990 |
Wheel base (mm) |
1850+4600+1350 |
|
Wheel track (front/rear) (mm) |
1460/1440 |
|
Weight in KGS |
Tare Weight |
13650 |
payload |
17220 |
|
Front axles loading capacity |
2x5000 |
|
Rear axles loading capacity |
2x10000 |
|
Max. driving speed(km/h) |
120 |
|
Engine |
Brand |
Dongfeng Cummins |
Model |
Diesel type engine |
|
Horse Power(HP) |
340 HP |
|
Emission standard |
Euro III |
|
Gearbox |
12 forwards & 1 reverse |
|
Fuel tank |
580L |
|
Tire |
11.00R20 tires with one spare,13 pics totally |
|
Refrigerating System |
1, Box Size: 9400*2400*2450 mm |
|
2,Box Material, glass epoxy in the surface, foam in the middle , side ,top ,front ,rear thickness 95mm;bottom 102 mm. |
||
3, Working temperature is minus 15 celsius degree. Chinese famous brand refrigeration unit |
||
4, Rear door open |
