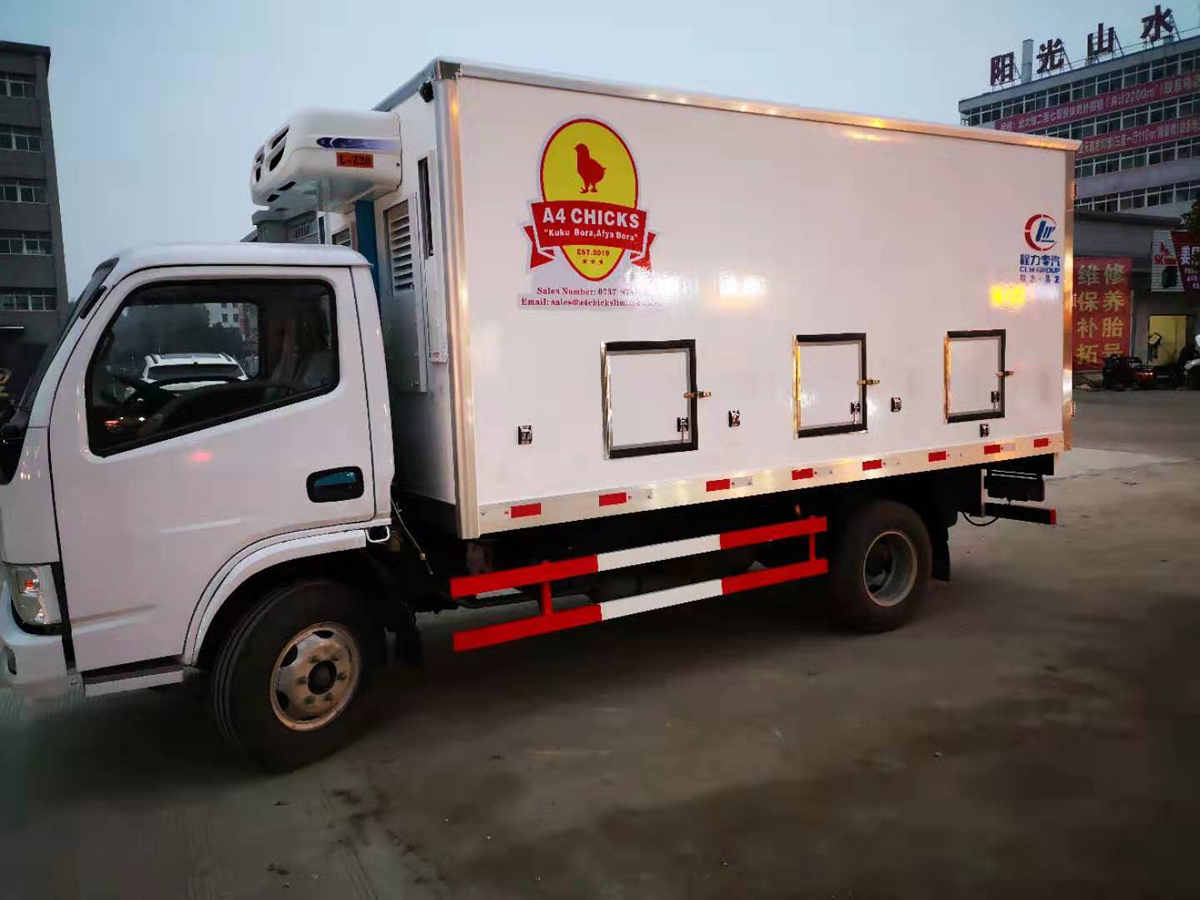

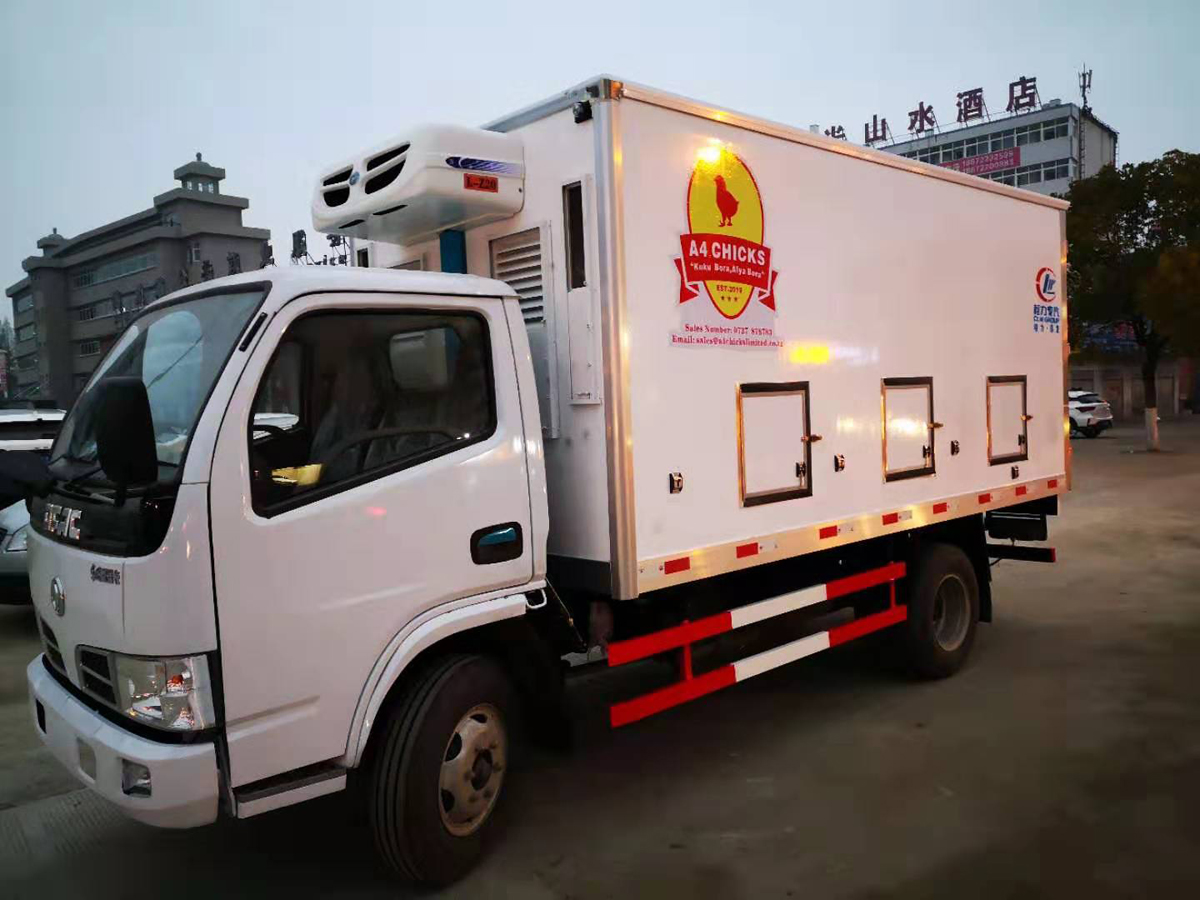

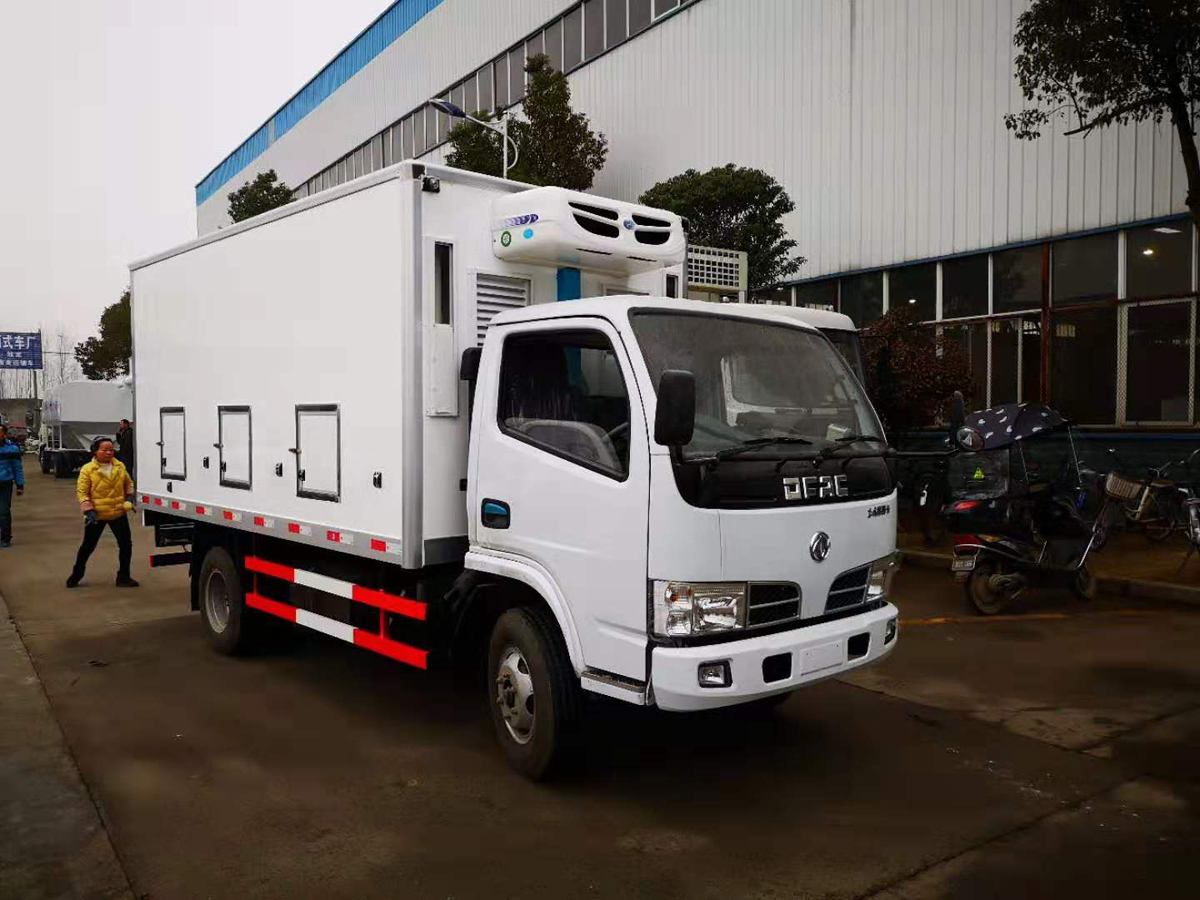

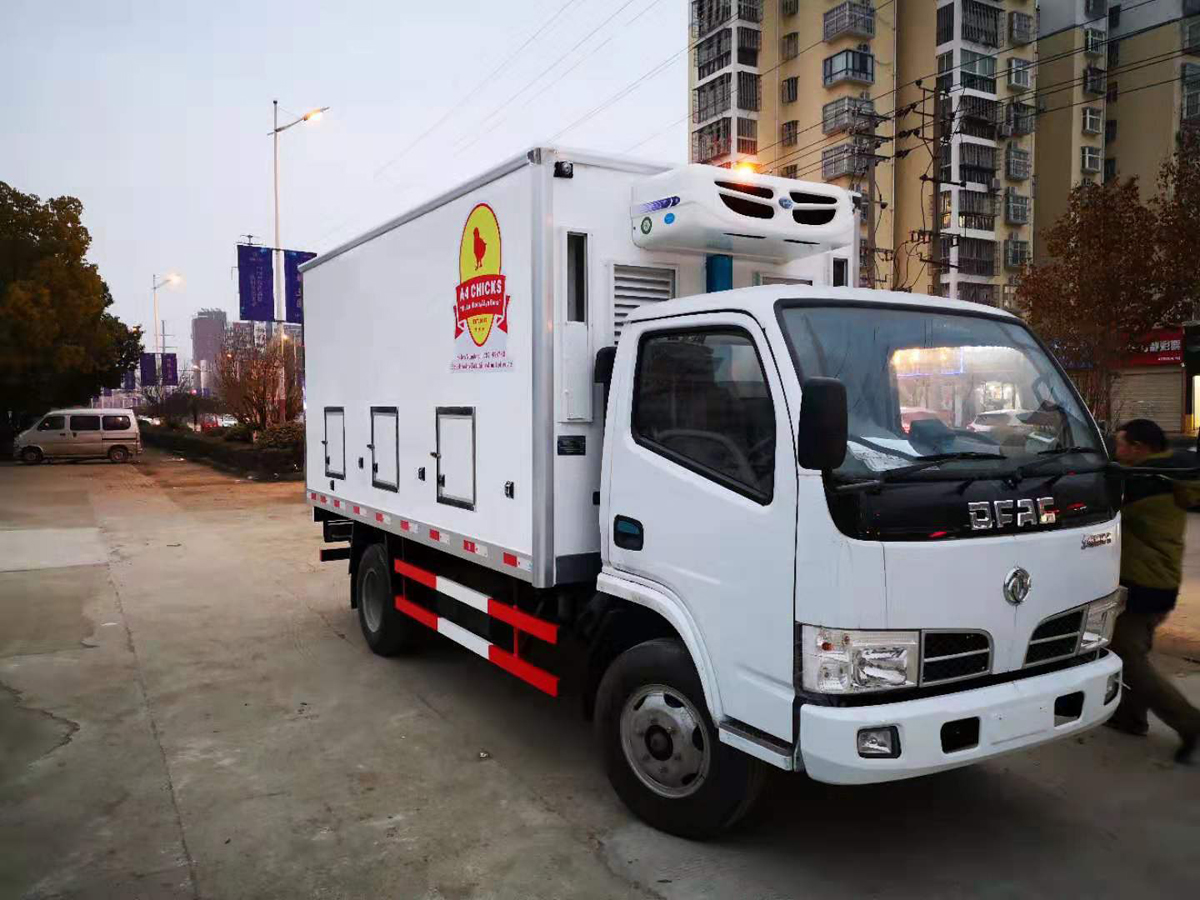

Day old chick truck is also called baby chick truck, young chicks transported truck. There are several electronic ventilator fans on the top, and the left-right sides with several slidable windows to keep air ventilated. There is cooling reefer, adjusted the temperature freely, suitable for transporting farm poultry, etc.
Dongfeng 3 Ton Van Chicks Transported Truck with Colling Reefer And Adjusted Temperature Freely
(1) Truck specification
|
Main specification |
Chassis brand |
/ |
Dongfeng |
||||
|
Overall dimension(L*W*H) |
mm |
5995×2100×3050 |
|
||||
|
The size of the cargo box(L*W*H) |
mm |
4035×1930×1850 |
|
||||
|
Total Mass |
kg |
7,300 |
|
||||
|
Loading capacity |
kg |
2,990 |
|
||||
|
Truck chassis |
Chassis model |
/ |
DFA1070 |
||||
|
Drive modle |
/ |
4×2 left hand drive |
|
||||
|
Wheel Base |
mm |
3308 |
|
||||
|
Front/rear suspension |
mm |
1070/1617 |
|
||||
|
Front/rear track |
mm |
1595/1586 |
|
||||
|
Spring number |
/ |
8/10+7 |
|
||||
|
Tyre size & number |
/ |
7.00-16 |
|
||||
|
Max speed |
km/h |
95 |
|
||||
|
Engine |
Manufacturer |
/ |
Chaochai |
||||
|
Model |
/ |
CY4102 |
|
||||
|
Horse power |
kw/hp |
83/112 |
|
||||
|
Displacement |
ml |
3856 |
|
||||
|
Torque |
N.m |
300 |
|
||||
|
Max torque speed |
rpm |
1300-1500 |
|
||||
|
Emission |
/ |
Euro 4 |
|
||||
|
Cargo box |
Overall dimension(L*W*H) |
/ |
4035×1930×1850 |
||||
|
Material |
/ |
color plate in the surface, inside foam |
|
||||
|
Thickness |
mm |
8 |
|
||||
|
Working Temperature: |
° |
-18 |
|
||||
-
