Most of the long-distance refrigerated transport by truck is done in articulated trucks pulling refrigerated semi-trailers. Research is done on fuel cell auxiliary power units.

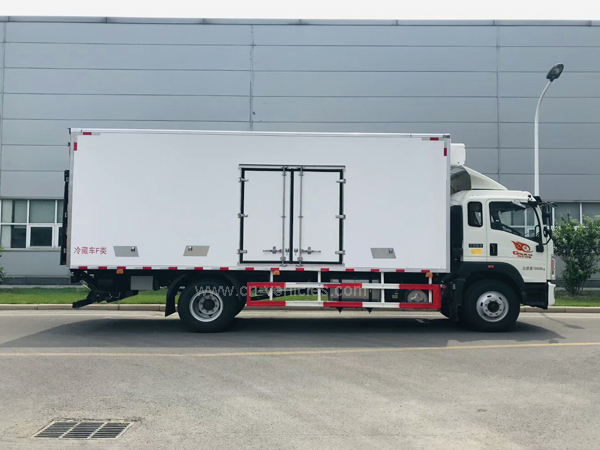

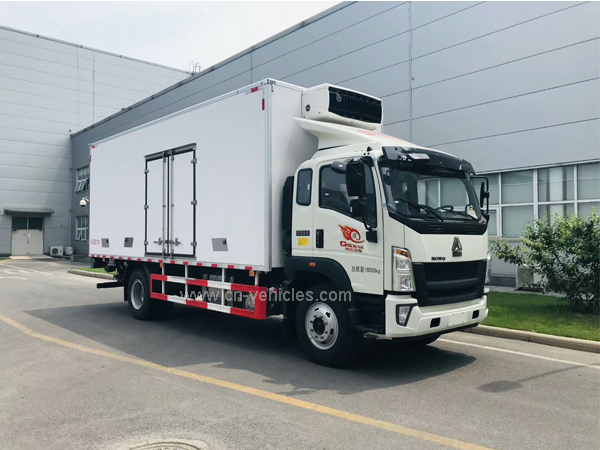

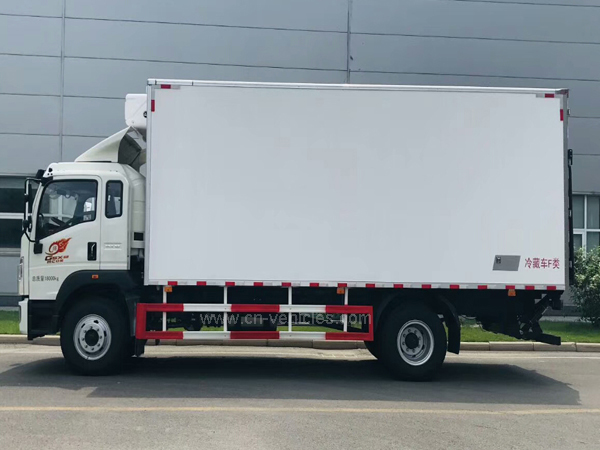

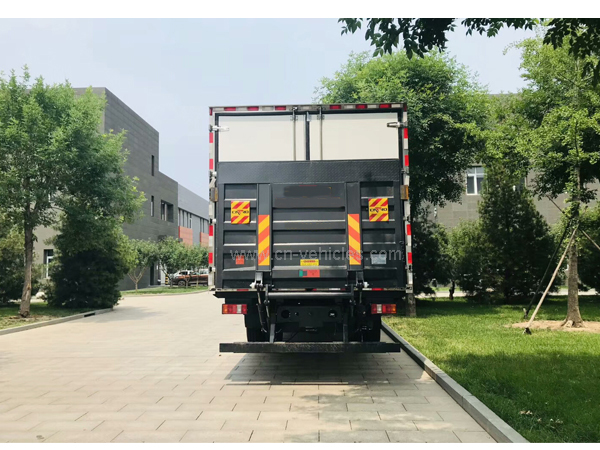

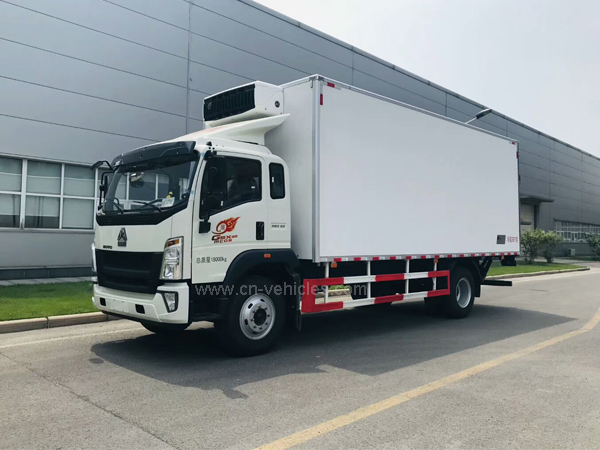

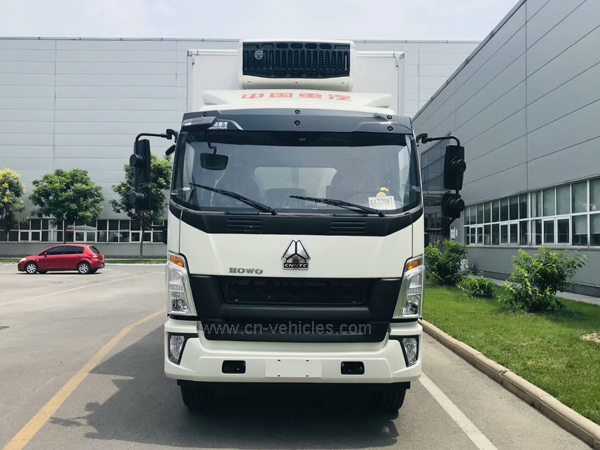

Sinotruck Howo 4*2 Man Engine 10-15 Ton -5 Degree to -15 Degree Refrigerator / Freezer Vehicles For Sales
A refrigerator truck is a van or truck designed to carry perishable freight at specific temperatures. Like refrigerator cars, refrigerated trucks differ from simple insulated and ventilated vans (commonly used for transporting fruit), neither of which are fitted with cooling apparatus. Refrigerator trucks can be ice-cooled, equipped with any one of a variety of mechanical refrigeration systems powered by small displacement diesel engines, or utilize carbon dioxide (either as dry ice or in liquid form) as a cooling agent.
Most of the long-distance refrigerated transport by truck is done in articulated trucks pulling refrigerated semi-trailers. Research is done on fuel cell auxiliary power units.
|
Max. driving speed(km/h) |
85 |
|
|
Vehicle Main Dimensions |
Overall dimensions (L x W x H)mm |
5995×2020×2330 |
|
Wheel base (mm) |
3360 |
|
|
Wheel track (front/rear) (mm) |
1160/ 1375 |
|
|
Approach/Departure angle(°) |
20/25 |
|
|
Engine |
Brand |
Sinotruk |
|
Type |
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
|
Horse Power(HP) |
266-371 |
|
|
Emission standard |
Euro 2 |
|
|
Gearbox |
10 Forwards gear & 2 reverse gear |
|
|
Clutch |
Reinforced diaphragm clutch, diameter 430mm |
|
|
Steering Gear |
ZF 8098,power steering, hydraulic steering with power assistance |
|
|
Fuel tank (L) |
300 |
|
|
Tire |
12R22.5 tubeless tyre |
|
|
Brakes |
Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
|
|
Van size |
Length from 4.5 to 9.4 m as customers‘ requirements |
|
|
Configurations |
GRP/Steel/Aluminium Alloy in the surface, foam in the middle, thickness is 80-100 mm |
|
