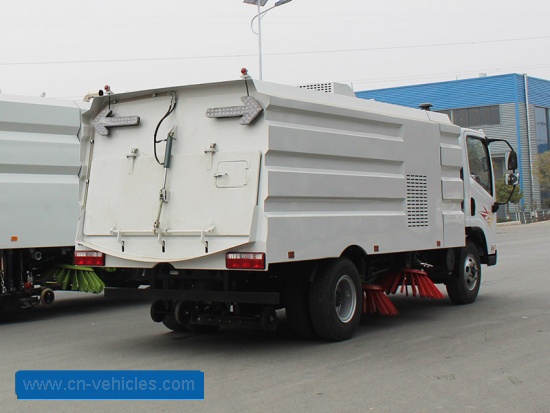

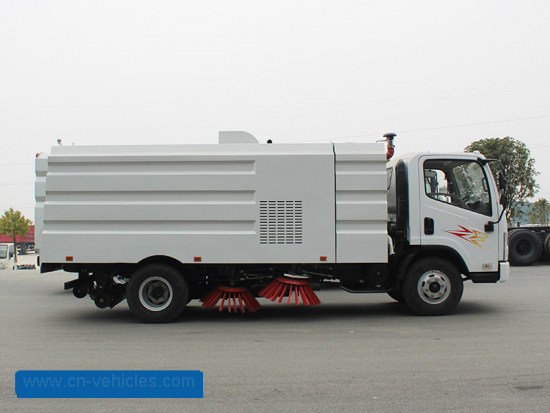

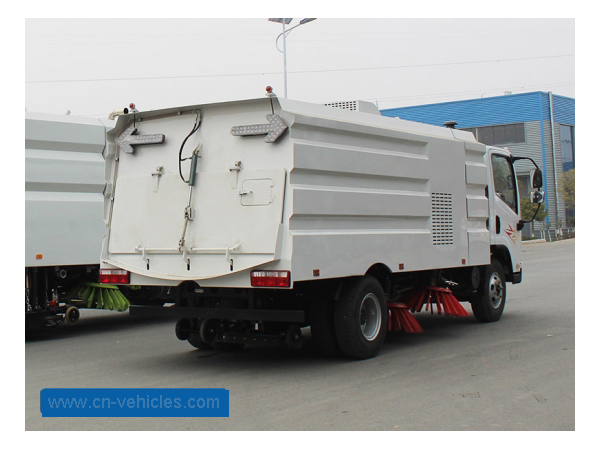

Truck Specification

Chassis model

CLW5081TSLF2

Cab

FAW HV single cab, with power steering. Electronic flameout，with a/c

Driving Type

4*2 Right hand driving

Max Speed (km/h)

97

Overall dimension（mm）

6800*2230*2550

GVW（ kg）

6000

Mass in working order（ kg）

10000

Wheelbase（mm）

3860

Tire

8.25R16 (6+1)

Clutch

Single-plate 330mm

Steering

Hydraulic steering with power assistance

Gear box

6-speed 6T115

Bridge

Front axle

2900KG

Rear axle

7000KG

Enging

Model

YC4D130-33 Euro2

Fuel Type

Diesel fuel

Type

Water-cooled four-stroke,, direct injection, turbocharged

Max output power/rotate speed (hp /rpm )

130/2800

Max torque/rotate speed(N.m/rpm)

380/1400-1700

Braking System

Service Brake

Compressed air brake

Park Brake

Spring energy

Auxiliary brake

Engine exhaust brake

Eletric system

24v

Upper-Body  specification

Vice generator

Model

JE493-G3

Rated power (kw)

57KW

Suction sweep operation

Cleaning efficiency

≥95%

The maximum diameter of the suction body(mm)

110

Suction sweep width(mm)

2.8-3.2

Maximum cleaning power （m3/h）

60000

Butterfly dish brush overhang dimension(mm)

≥400

Working speed (km/h)

3-20

Water tank body

Rated capacity （m3）

2

Material

Stainless steel

Garbage tank body

Rated capacity（m3）

6

Material

Stainless steel

Discharge door opening angle

≥46º

Hydraulic system

Model

Open, electrical control

The main element

Gear pumps, hydraulic motors, hydraulic cylinders, solenoid valve

Pressure (mpa)

16

Hydraulic oil tank capacity  (l)

60

Hydraulic oil temperature (ºC)

60

Electrical system

Model

DC24V

voltage

24V

Battery

24V（2 set 12 v battery seriesconnection ）

Sprinkle system

The main elements

Electric diaphragm pump, water filters, nozzles, etc.

Sweeper disk device

Model

Center twosweeper disk,controlled bya hydraulic motor, front right can be independently controlled with avoidance and reset function

Diameter (mm)

850

Angel

Forward  4-6º  roll 4-7º

Sucker device

Model

single suction port, hydraulically controlled, spring suspension.

Diameter (mm)

200
