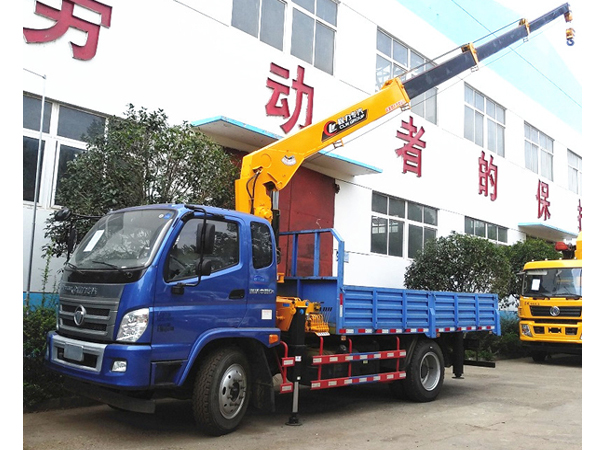

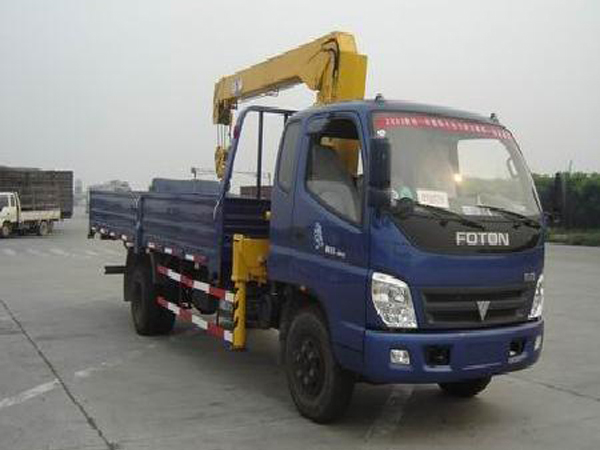

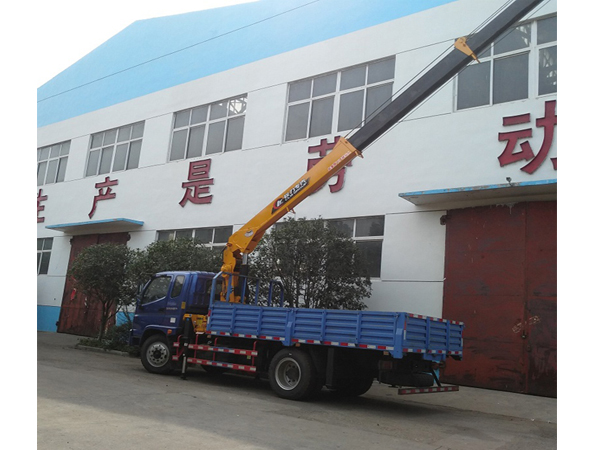

FOTON 3.5ton small truck with crane 4.3m cargo box cargo truck with crane boom
  • FOTON 3.5ton small truck with crane 4.3m cargo box cargo truck with crane boom
  • FOTON 3.5ton small truck with crane 4.3m cargo box cargo truck with crane boom
  • FOTON 3.5ton small truck with crane 4.3m cargo box cargo truck with crane boom
  • FOTON 3.5ton small truck with crane 4.3m cargo box cargo truck with crane boom
  • FOTON 3.5ton small truck with crane 4.3m cargo box cargo truck with crane boom
FOTON 3.5ton small truck with crane 4.3m cargo box cargo truck with crane boom

boom truck with crane is also named hydraulic truck crane,  mobile crane, truck mounted crane,  lorry-mounted crane, lorry crane, truck with loading crane, truck cargo crane and so on.  It is widely used in various loading and unloading, installation and lifting, especially in the field of outdoor lifting, salvage operation and other narrow places such as station, port, warehouse and construction site.

Description Get quotation

FOTON 3.5ton small truck with crane 4.3m cargo box cargo truck with crane boom



FOTON 4x2 3.5ton small truck with crane 4.3m cargo box cargo truck with crane  boom truck with crane



boom truck with crane is also named hydraulic truck crane,  mobile crane, truck mounted crane,  lorry-mounted crane, lorry crane, truck with loading crane, truck cargo crane and so on.  It is widely used in various loading and unloading, installation and lifting, especially in the field of outdoor lifting, salvage operation and other narrow places such as station, port, warehouse and construction site.



Product Notes:

Optional: from 2 ton to 200 ton lifting capacity crane truck
Optional: straight arm and floding arm truck crane with or without remote control
Optional: different famous crane brand: HIAB, Shimei, Zoomlion, Sany, Chengli balong, etc.
Optional: different famous chassis brand: Dongfeng, FAW, Foton, Sinotruk, Syter, Shaanxi, T-king, Dayun, Yuejin, JMC, JAC, etc.
Factory direct sale, low price and good quality.
Product Information

Main Parameters of truck with crane

Product Name

boom truck with crane

Cab

Single row cab, two doors, rated passengers 2 or 3

Chassis

Brand

Foton

Adaptive Crane

3.5T

Front/Rear Axle Load

4.36T/7.09T

Drive type

LHD or RHD 4*2

Tire/Tire No.

8.25R20/6+1 spare tire

Wheelbase(mm)

3800

Braking System

air brake

Transmission

Manual , 5 gearbox

Engine

Brand

Chaochai

fuel type

diesel

Horse Power(kw/hp)

115kw/156hp

Displacement(ml)

3856

Emission standard

Euro 2/3/4/5

Dimension & Weight

Overall dimension (L*W*H/mm)

7100x2350x3300

Body dimension(L*W*H)(mm)

4300×2100×550

Axles No.

2

Curb Weight(kg)

5100

Max speed(km/h)

103



Performance Parameters of Crane

Max lift quality(kg)

3500

Max. Lifting Height(m)

9.5

Number of boom sections

3

Working radius(m)

7.6

Outrigger span(m)

3.1

Boom shape

Hexagon

Swivel Angle Range

360°

Installation space

850



Operating range(m)

2.5

3

3.5

4

4.5

5



Rated load(kg)

3500

2600

1780

1530

1330

1180



Operating range(m)

5.5

6

6.5

7

7.5

7.61



Rated load(kg)

1050

950

850

780

720

700
