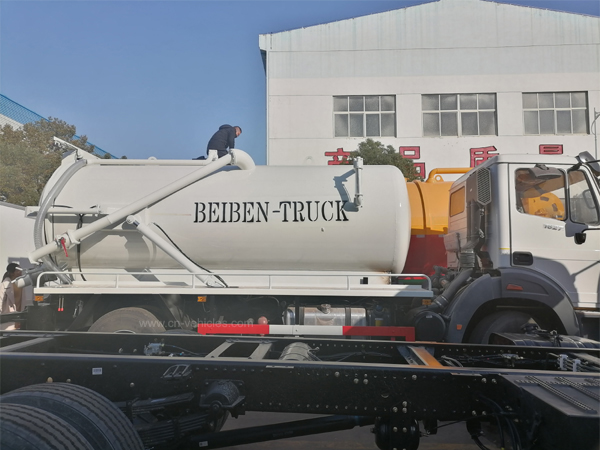

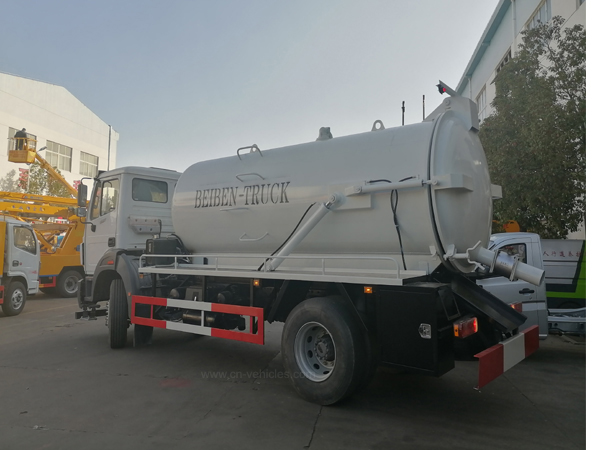

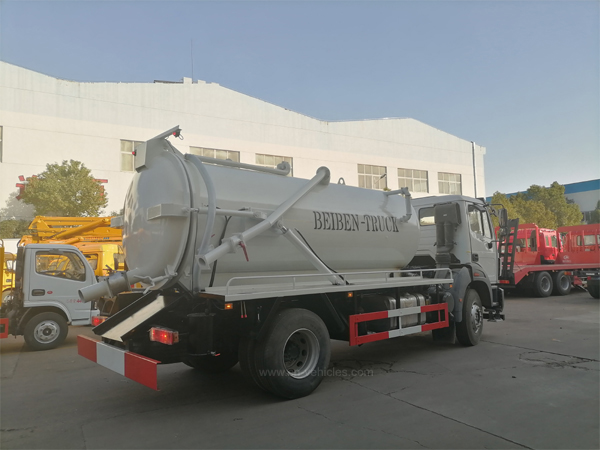

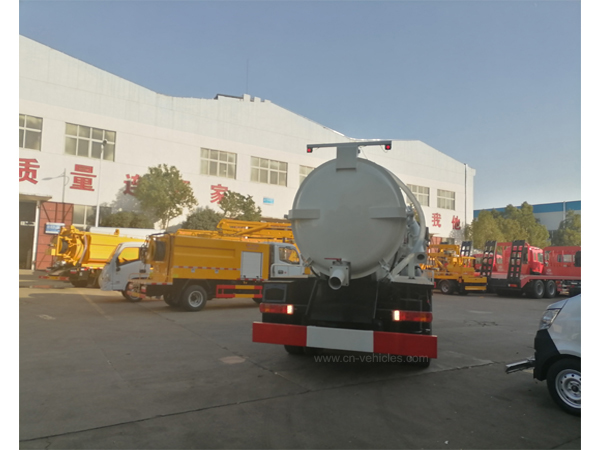

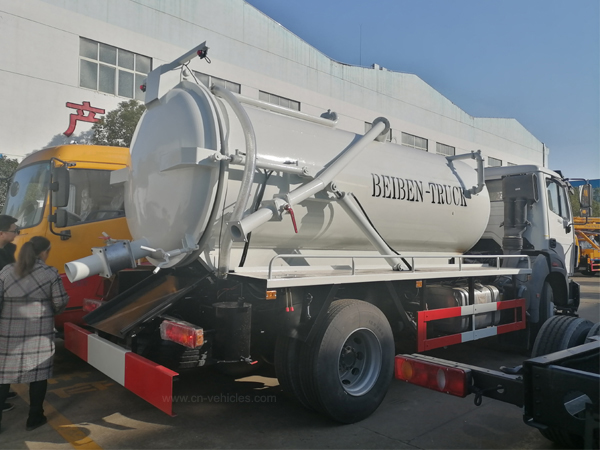

BEIBEN North Benz 8cbm To 12cbm Cubic Meter Vacuum Sewage Suction Truck Septic Tanker Truck Based on Mercedes Benz Technology

4*2/4x4

ND1160A41

4100

WP6.180

ND1163A48J

4800

WP10.270
WP10.290

Model

ND2160E48J (4*4)

Engine

290 HP EURO II-V

chassis

BeiBen 4x4 military chassis

Outside dimension(mm)

8826×2500×3355

volume of tank

 6000L~ 10000L

Material of tank

Carbon steel

Thickness

6mm

Total mass (kg)

16000

Kerb mass (kg)

7960

Rated payload(kg)

7910

Wheelbase (mm)

4800

Tread(front/rear)

1995/1800

Approach/departure angle

30/28

Front /rear suspension

1410/2616

Minimum turning diameter

20.4

Clutch type

GFX420, diaphragm spring clutch

Gear box type

9JS119,mechanical , 9 forwards, manual

Tire  type

14.00R20 (6+1)

Fuel tank capacity (L)

300

Max.gradient

60

Max. Speed(Km/h)

85

Battery(V)

Electrical system storage battery 2X12V/135Ah

generator

28V-35A

Starter

5.4Kw/24V

A/C

YES

Chassis

Model

ND11601A48J

Traction type

4X2

Driving type

LHD

Driver‘s cab

Long cabin, A/C

Dimensions in (mm)

Wheel base(mm):  4800

Overall size(mm):  8690x2500x3080

Engine

Maker: WEICHAI

Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & intercooling

Engine model: WP10.270E31

Emission Standard: EUROIII EGR

Maximum output: 270HP /1900 rpm

Number of cylinder:6

Displacement: 9.726L

Clutch

430mm, hydraulically operating with air assistance

Transmission

Fuller 9JS135

Steering

TAS85

Front Axle

Benz front axle 7.5 ton

Rear Axle

Benz strengthened type 13T, double reduction drive axle
Ratio: 5.263

Spring

10/8+6

Types

12.00-20 Bias tyre

No. of tyre

6+1(spare)

Fuel tank

400L Aluminium

PTO

QH50

Electrics

Operating voltage: 24V, negative grounded

Kerb weight(kg)

 6920

Body

Tank Volume

8m3,9m3,10m3,12m3
