Dongfeng DFAC 3000liter Vacuum Sewage Fecal Suction truck
  • Dongfeng DFAC 3000liter Vacuum Sewage Fecal Suction truck
  • Dongfeng DFAC 3000liter Vacuum Sewage Fecal Suction truck
  • Dongfeng DFAC 3000liter Vacuum Sewage Fecal Suction truck
  • Dongfeng DFAC 3000liter Vacuum Sewage Fecal Suction truck
  • Dongfeng DFAC 3000liter Vacuum Sewage Fecal Suction truck
  • Dongfeng DFAC 3000liter Vacuum Sewage Fecal Suction truck
Dongfeng DFAC 3000liter Vacuum Sewage Fecal Suction truck

Dongfeng DFAC 3000liter Vacuum Sewage Fecal Suction truck

Description FEEDBACK

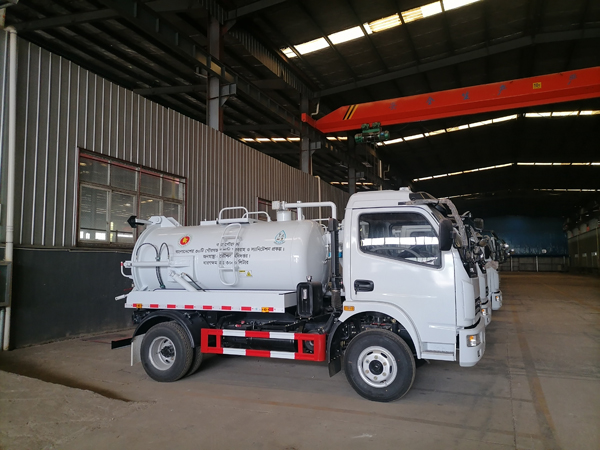

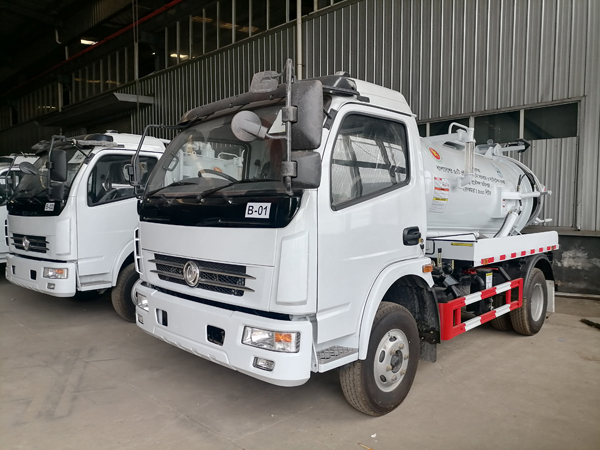

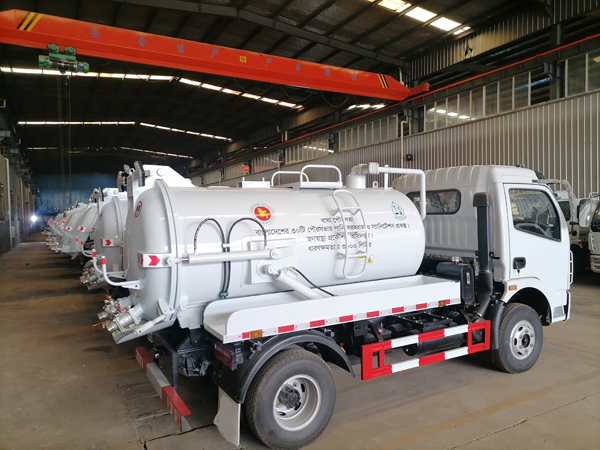

Dongfeng DFAC 3000liter Vacuum Sewage Fecal Suction truck


Fecal suction truck is a special purpose vehicle mainly used in cleaning the septic-tank, bilge and sewer.

It is mainly used for urban and rural sanitation sector suction and delivery feces and other sewage

. Suitable for sucking fecal, sewage, mud, and liquid mixed with tiny granules. It is apply to the municipal sanitation, large & small industrial and mining enterprises, neighborhoods, schools, septic tank cleaning & transport , city pipeline cleaning & dredge, factories marsh liquid biogas clean-up.

Description
Dongfeng New Vacuum Tank Truck Fecal Sewage Suction Truck
Drive Model
4X2
Chassis
EQ1060
Number of axles
2
Vehicle Main Dimensions
Dimensions(L x W x H)(mm)
5995×2000×2550
Wheel base (mm)
3300
Overhang (front/rear) (mm)
1032/1663
Wheel track (front/rear) (mm)
1506/1466
Approach/Departure angle(°)
19/14
Weight in KGS
GVW.
6495kg
Curb Weight
4200kg
Max. driving speed(km/h)
90
Engine
Model
CY4102-C3F
Type
4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP)
99HP
engine capacity(ml)
3856
Emission standard
Euro III
Gearbox
5 forwards & 1 reverse
Clutch
Reinforced diaphragm clutch
Steering Gear
Power steering, hydraulic steering with power assistance
Fuel tank (L)
100
Tire
7.00-16 tire , 6 + 1(spare)
Brakes
dual circuit compressed air brake

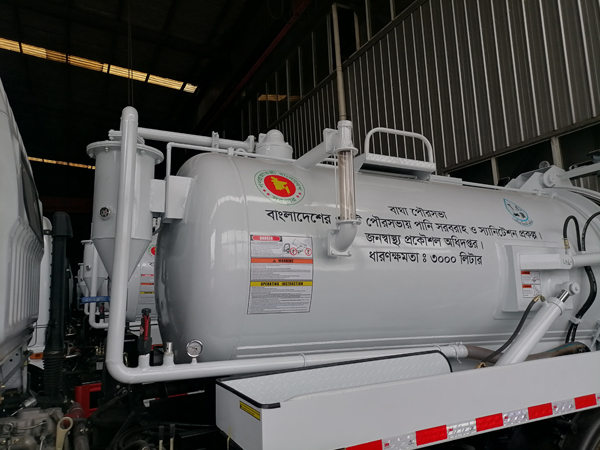

Tank
Material
Q235A Carbon steel
Medium Density
800kg/m³
Loading Capacity (m³)
4
Overall dimensions(mm)
3200×1100×1100
Thickness(mm)
5
Standard
Equipment

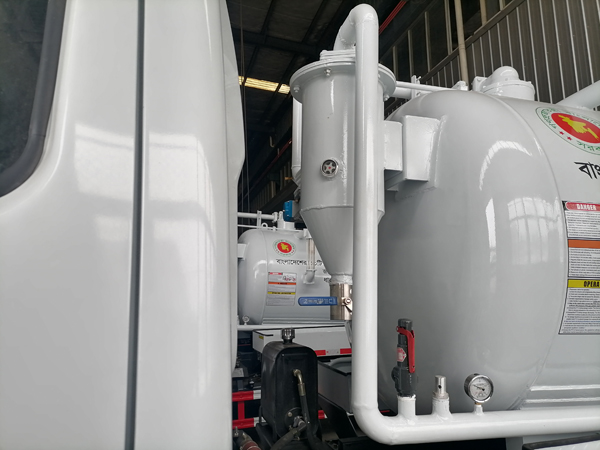

Equipped with vacuum pump
rating rotate speed 1400r/m,
min rotate speed>800r/m,
max suction lift>6m, vacuum>500mmHg,
Equipped with power take off, transmission shaft,
fecal tank, pipe network, fecal pipe for observing & cleanout equipment
Time for full suction<5min
