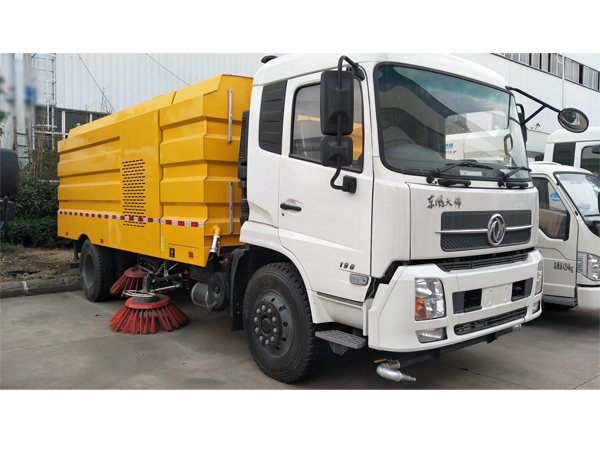

Dongfeng DFM Tianjin KR 12cbm Vacuum Cleaner Road Sweeper Truck
Road Sweeper truck is known as sweeper truck, street sweeper truck, street Cleaning Truck, vacuum sweeper truck. It is a new generation of different-sized and environmental protective vehicle, combined with suction type and road sweeping. It‘s mainly applied to city streets, municipal square, large-scale mechanized factory etc. The truck chassis can be any brand of China. Such as Sinotruk Howo, Foton, Shacman, DONGFENG, ISUZU etc.
Description
Get quotation

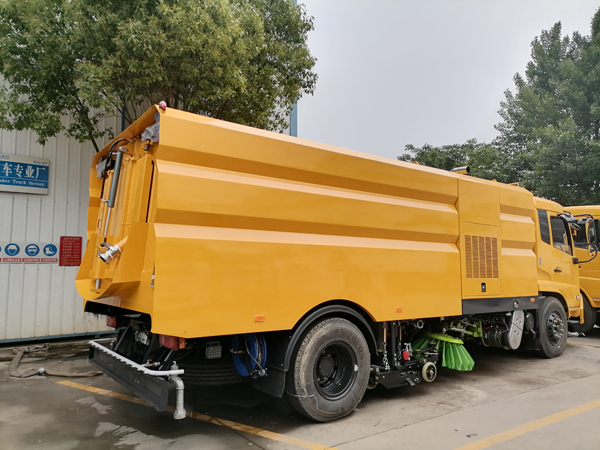

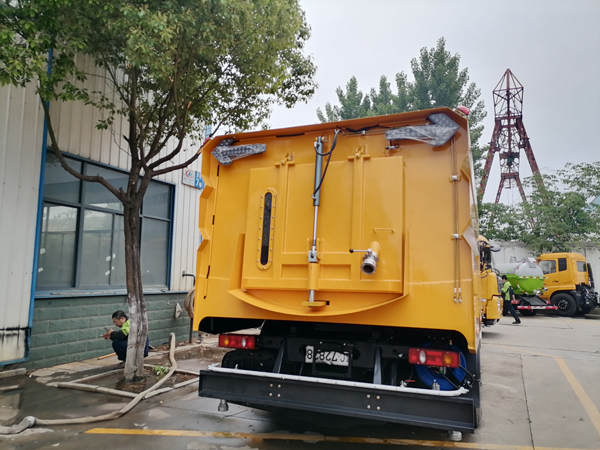

Dongfeng DFM Tianjin KR 12cbm Vacuum Cleaner Road Sweeper Truck
Road Sweeper truck is known as sweeper truck, street sweeper truck, street Cleaning Truck, vacuum sweeper truck. It is a new generation of different-sized and environmentally protective vehicles, combined with suction type and road sweeping. It‘s mainly applied to city streets, municipal squares, large-scale mechanized factory, etc. The truck chassis can be any brand in China. Such as Sinotruk Howo, Foton, Shacman, DONGFENG, ISUZU etc.
Dongfeng DFM Tianjin KR 12cbm Vacuum Cleaner Road Sweeper Truck Technical date:
| tem | Parameter |
| Production name | Dongfeng Tianjin Road sweeper truck |
| vehicle model | CLW5160TSLD5 |
| Engine | Engine model: ISB190 50 |
| Engine manufacturer: Dongfeng Cummins Engine Co., LTD | |
| Exhaust: 4500ml | |
| Power: 132kw | |
| Chassis model | DFL1160BX1V |
| Tire | Tire specification: 10.00R20 |
| Number of tire: 6+ 1 spare | |
| Axle | Number of axles: 2 |
| Axle-load: 5800/10000 | |
| Wheel base(mm): 4700 | |
| Traction system | 4*2 |
| Tank fact cubage(cbm) | 8 m3 dustbin,4 m3 clean water tank |
| GVW(kg) | 15800 |
| Curb weight(kg) | 10670 |
| Overall dimensions(mm) | 8050×2500×3060 |
| Steering Wheel | Left hand Driver or Right Hand Driver |
| F / R track base(mm) | 1880/1860 |
| F/R overhang(mm) | 1430/1920 |
| Approach / departure angle(°) | 20/12 |
| Max speed(Km/h) | 90 |

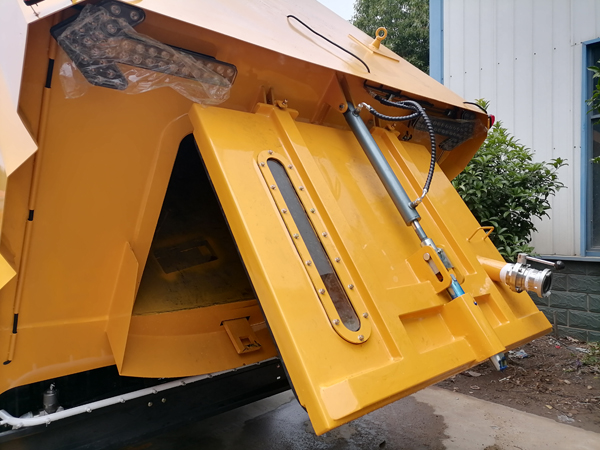

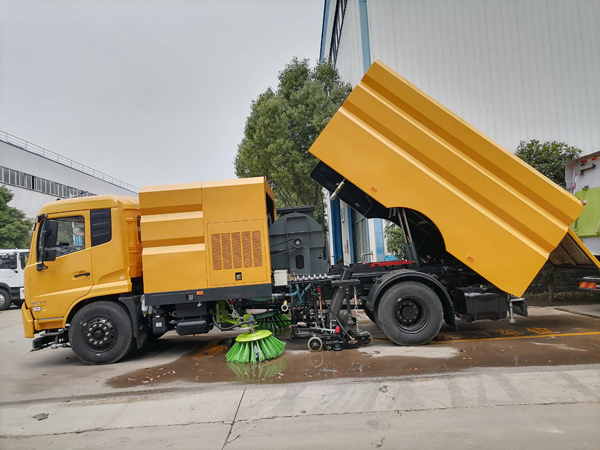

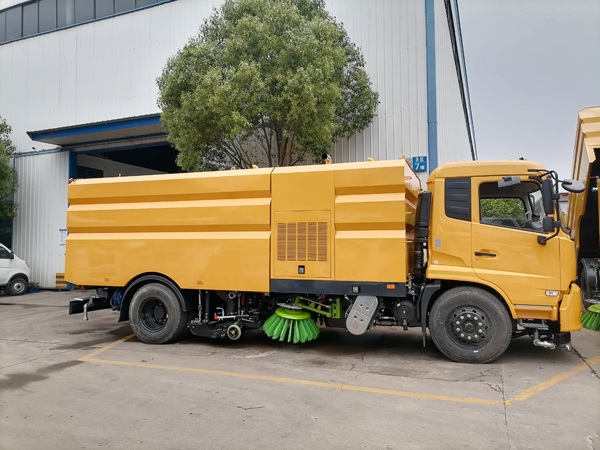

| equipment | 1> Equipped with 4 sweeping brush, Cummins 140 hp deputy engine; Italian motor; French control switch; Joint venture solenoid valve group; Maintenance-free self-separate clutch; Maintenance-free fan; Stainless steel water tank and dustbin; Rear LED arrow lights, manual pump for emergency system. |
| 2> Maximum sweeping width 3.2 m, inhaled sizeφ120 mm | |
| 3> Optional: monitoring, sprinkler function, self-cleaning function for dustbin. | |
| Product cycle | 15-20 days |
| Warranty | 12 months, from the date of supply |
